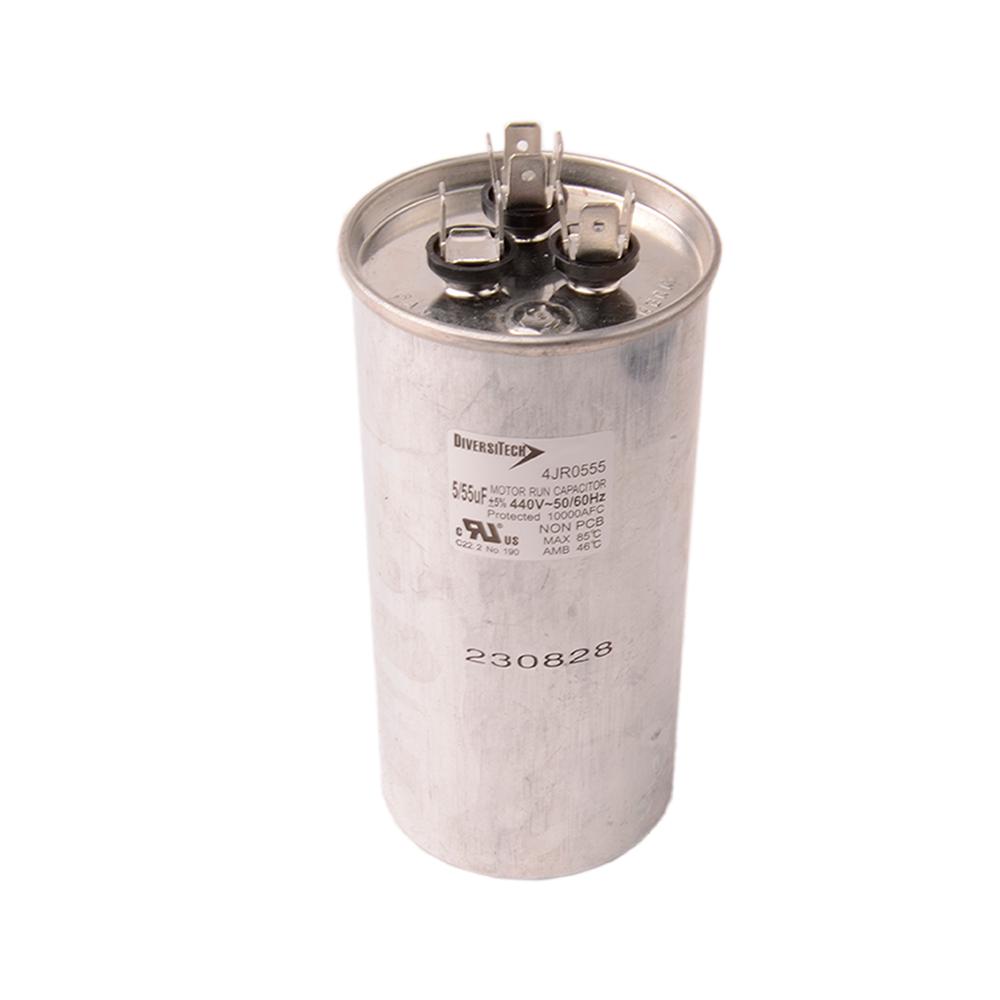

Diversitech 4JR0555 Dual Motor Run Capacitor, 55/5 uF, 440 V AC, Round
This dual capacitance round metal can capacitors are designed for continuous run.
-
BrandDiversitech
-
UPC095247003129
-
Manufacturer Part Number4JR0555
-
CountryUSA
-
Capacitance55/5 uF
-
Case MaterialMetal
-
ColorSilver
-
TypeDual
-
Voltage Rating440 V AC
-
ShapeRound
-
Dimensions4.92 in H Case
-
Domestic/ImportImport
-
Specifications50/60 Hz, +/-5% Tolerance, 4.92 in H Case
- Guaranteed for 10000 hr of life under normal operating conditions
- Operating life of 94% at 60000 hr
- Meets 10000 AFC safety requirement per UL 810
- Between terminals: Rated voltage x 1.75 VAC, 10 s withstand voltage test
- Between terminals and case: Rated voltage x 2+1000 VAC, 60 s withstand voltage test
- Maximum permissible voltage: 110% of the rated voltage
- Maximum permissible current: 130% of the rated current
- Oil filled, non PCB
- 1/4 in quick connect terminal
- -40 to 70 deg C permissible temperature
-
UNSPSC32121500
-
Package DescriptionEACH
-
Standards/ApprovalsCSA 22.2 No 190|IEC 60252|UL 810
-
Specification Sheet
