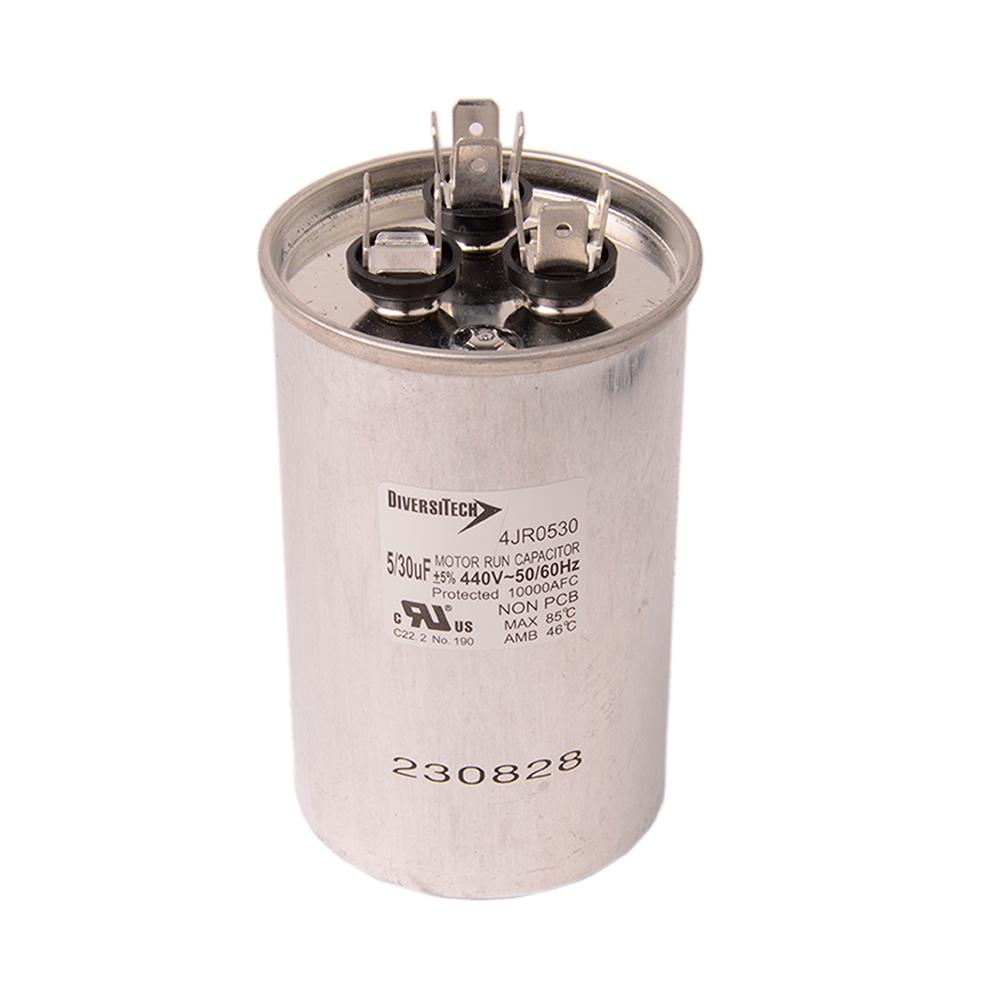

Diversitech 4JR0530 Dual Motor Run Capacitor, 5/30 uF, 400 V AC, Round
Diversitech 4JR0530 Dual Motor Run Capacitor, 5/30 uF, 400 VAC, Round
-
BrandDiversitech
-
Manufacturer Part Number4JR0530
-
CountryUSA
-
Capacitance5/30 uF
-
Case MaterialMetal
-
TypeDual
-
Voltage Rating400 V AC
-
ShapeRound
-
Domestic/ImportImport
-
Specifications50/60 Hz, +/-5% Tolerance, 3.54 in H Case
- Guaranteed for 10000 hr of life under normal operating conditions
- Operating life of 94 percent at 60000 hours
- Meets 10000 AFC safety requirement per UL 810
- Individually packaged
- Between terminals: rated voltage x 1.75 VAC, 10 sec withstand voltage test
- Between terminals and case: rated voltage x 2+1000 VAC, 60 sec withstand voltage test
- Maximum permissible voltage: 110 percent of the rated voltage
- Maximum permissible current: 130 percent of the rated current
- Oil filled, Non PCB
- 1/4 in quick connect terminals
-
UNSPSC32121500
-
Package DescriptionEACH
-
Standards/ApprovalsCSA 22.2 No 190|IEC 60252|UL 810
-
Specification Sheet
