Proto Tools 1-1/8" 8-PT 3/4"-DR IMPACT SOCKET PRO J-07518-S

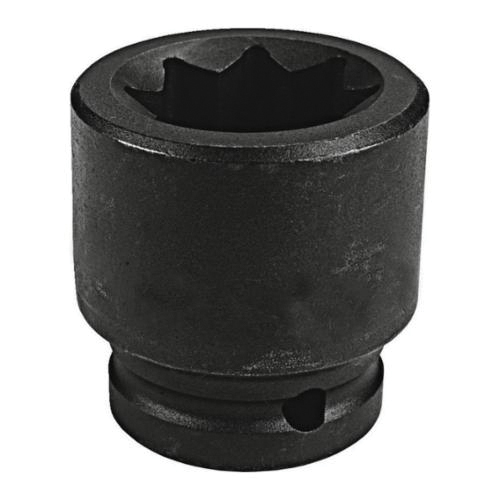

Proto® TorquePlus™ J07518S Standard Length Socket, Imperial, 3/4 in Square Drive, 1-1/8 in
-
BrandProto®
-
UPC662679360498
-
Manufacturer Part NumberJ07518S
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points8
-
Socket End Width2-1/4 in
-
Socket Size1-1/8 in
-
Opening Depth45/64 in
-
Drive End Width1-3/4 in
-
Drive Size3/4 in
-
Drive TypeSquare
-
Bolt Clearance Depth1-15/64 in
-
Overall Length2-1/4 in
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
- Tight tolerances for snug fit on fastener
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
- Made from high strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
- Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
- Features two through holes and a groove to accept a Proto® retaining ring or pin and O-ring to help secure the socket to the drive tool anvil
- Stamped size for easy reference
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1ACP8 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.33M|ASME B107.2
-
