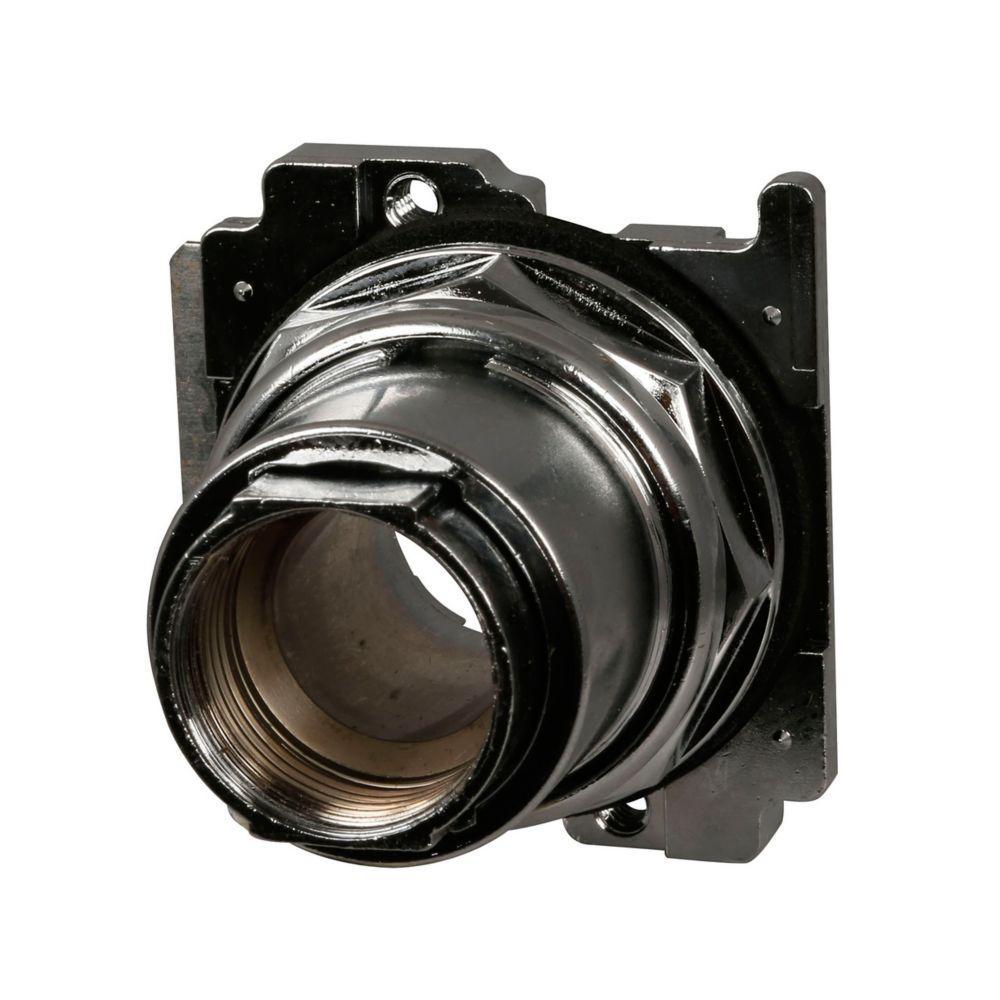

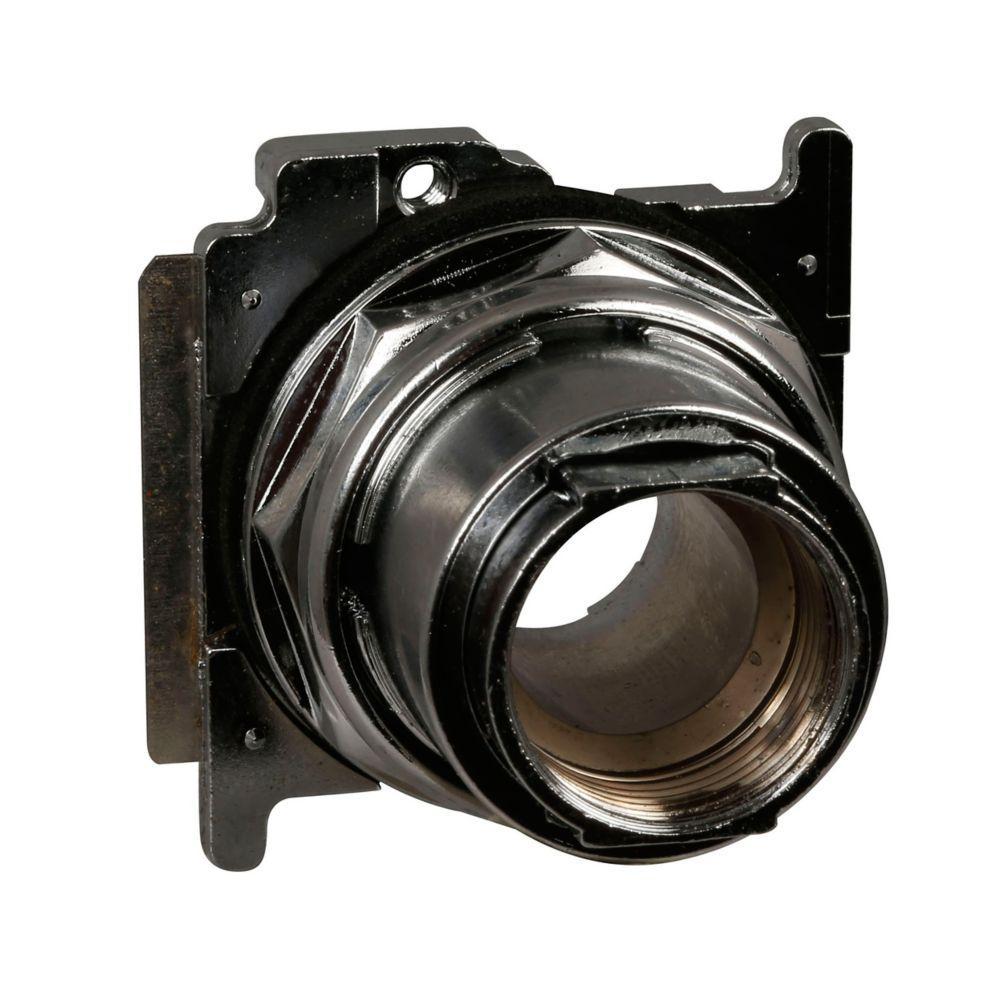

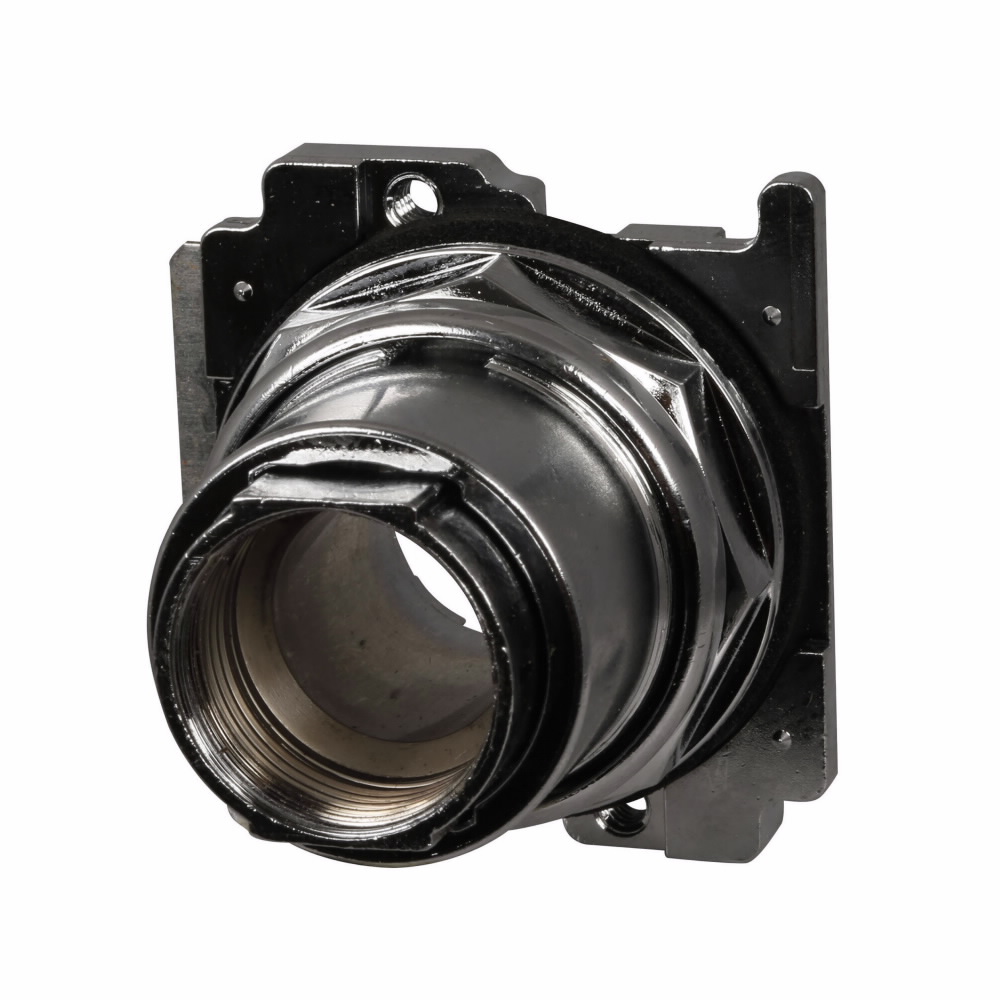

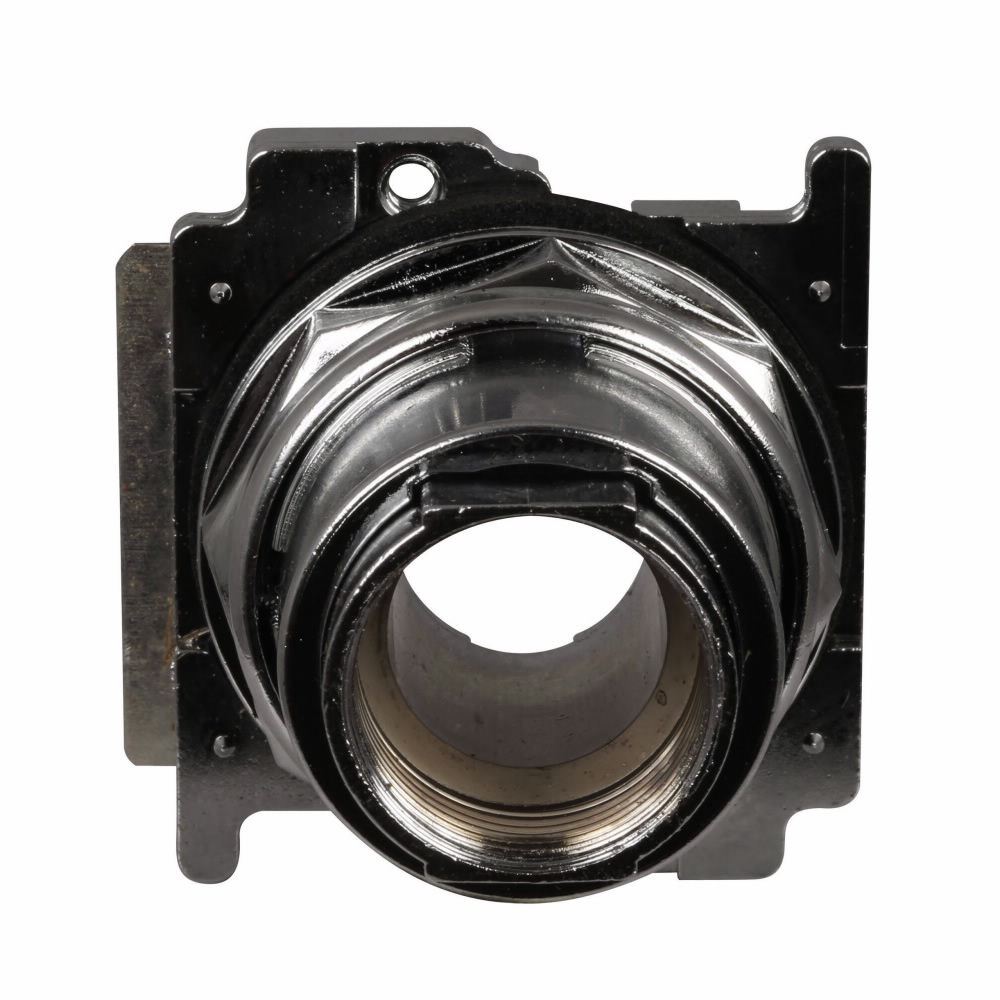

EATON 10250T4 Heavy Duty Oiltight/Watertight Non-Illuminated Push-Pull Operator, 30.5 mm, 2NC Contact, 3 Positions
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
-
BrandEATON
-
UPC782113300542
-
Manufacturer Part Number10250T4
-
CountryUSA
-
MaterialDie Cast Zinc
-
TypeHeavy Duty Oiltight/Watertight
-
Contact Configuration2NC
-
Contact Rating10 A at 600 V AC
-
Series10250T
-
Number of Positions3
-
Size30.5 mm
-
Enclosure TypeNEMA 3/3R/4/4X/12/13
- Eaton contact blocks feature enclosed silver contacts with pointed reliability nibs
- To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
- Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bite through paint and other coatings to provide secure ground
- Slow make and break contact operation (positive opening NC contacts) for improved safety
-
Alternative Part Number7357259
-
UNSPSC39121545
-
IDEA Index ID7357259
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified,UL Listed,CE Marked
-
Specification Sheet
