Klein Tools CONDUIT FTG/REAMING SCREWDRIVERS KLE 85191

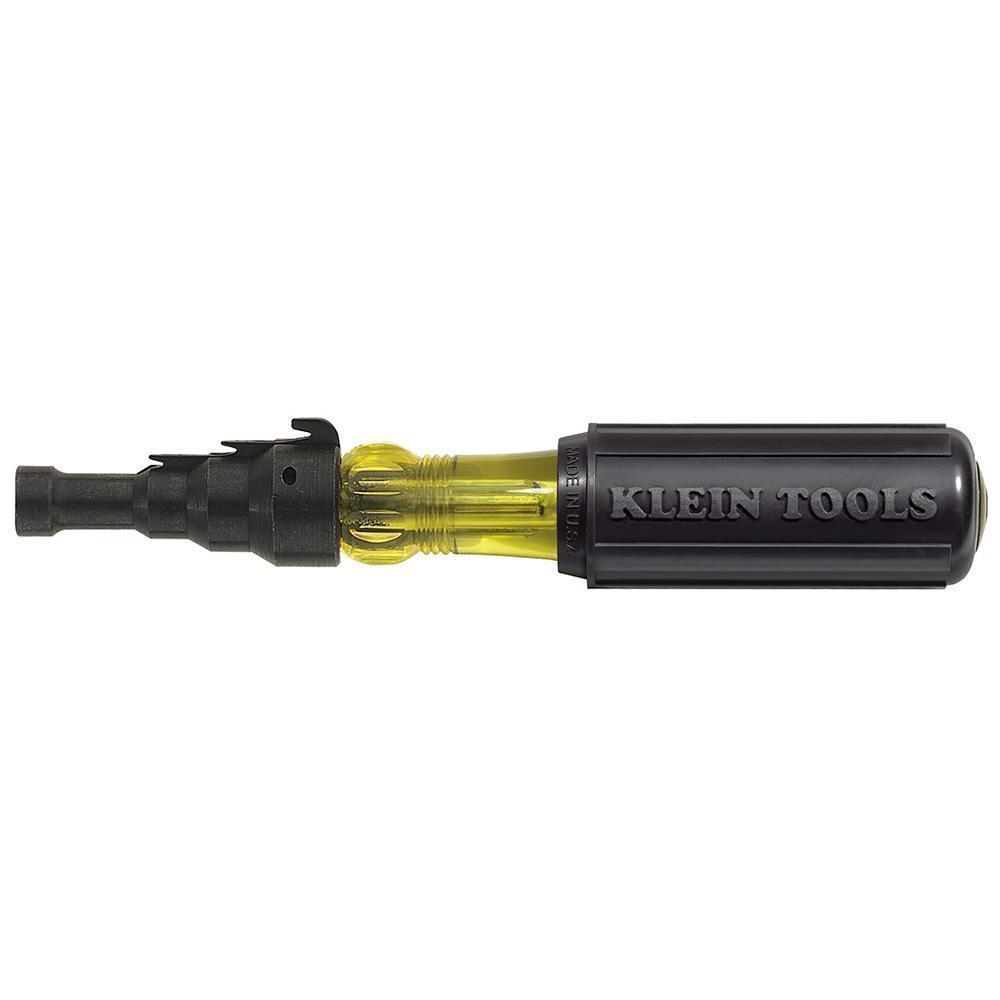

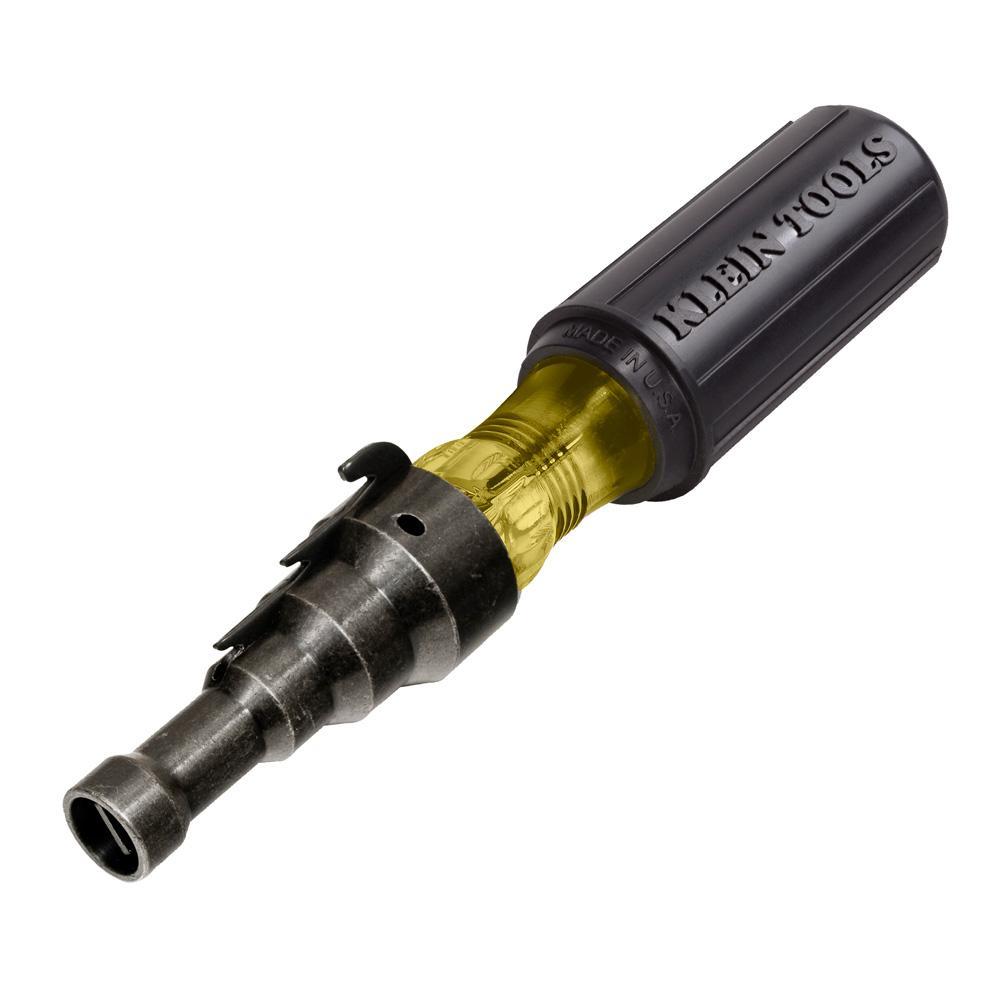

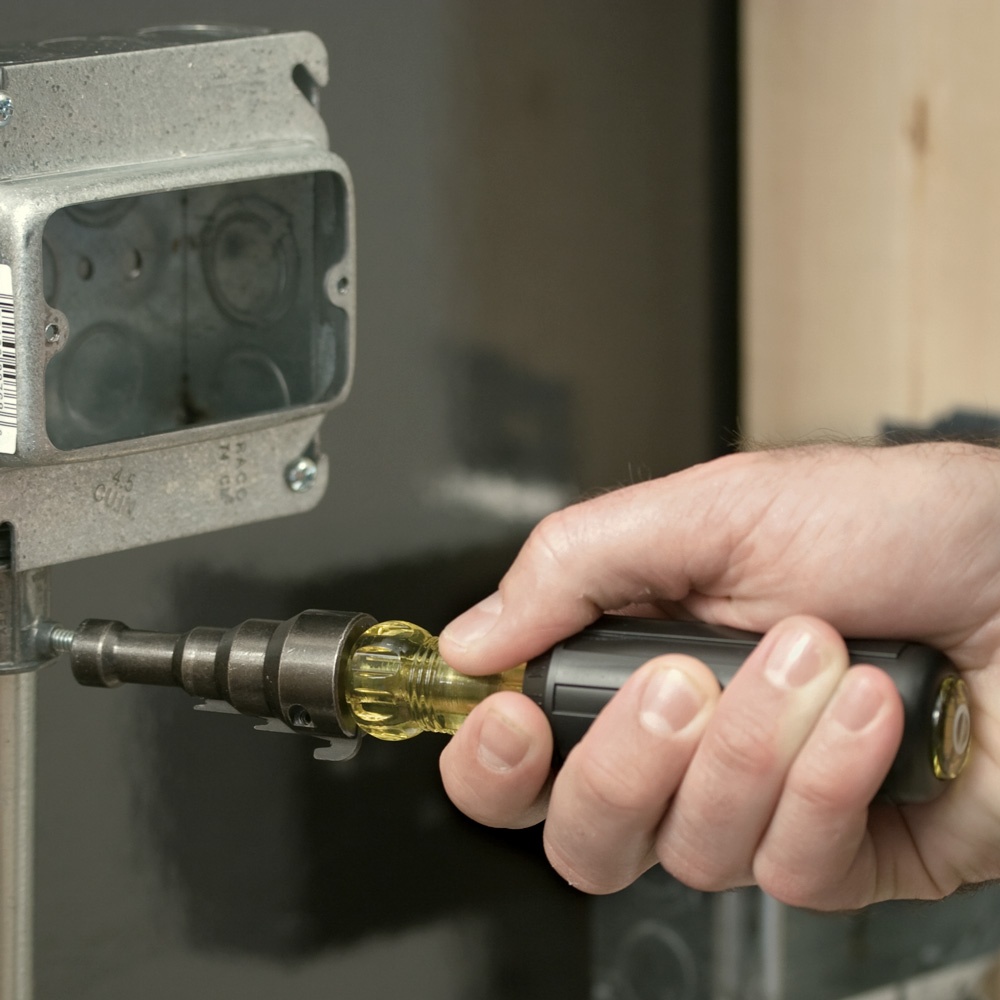

The Klein Tools Conduit-Fitting and Reaming Screwdriver can ream and smooth 1/2'' (13 mm), 3/4'' (19 mm), and 1'' (25 mm) thin-wall conduit. It features a hooded-blade design that keeps the screwdriver tip from slipping out of screws, which is especially handy when tightening hard-to-reach conduit fittings. This screwdriver has a longer Cushion-Grip™ handle for even more comfort and torque while reaming.
-
BrandKlein®
-
UPC092644851919
-
Manufacturer Part Number85191
-
CountryUSA|Canada
-
Point Size5/16 in
-
MaterialSteel
-
Measurement SystemImperial
-
ColorBlack/Yellow
-
TypeConduit Fitting and Reaming
-
Handle MaterialPlastic
-
Handle TypeCushion Grip
-
Shank Length2-1/2 in
-
Shank MaterialSteel
-
Overall Length7-1/2 in

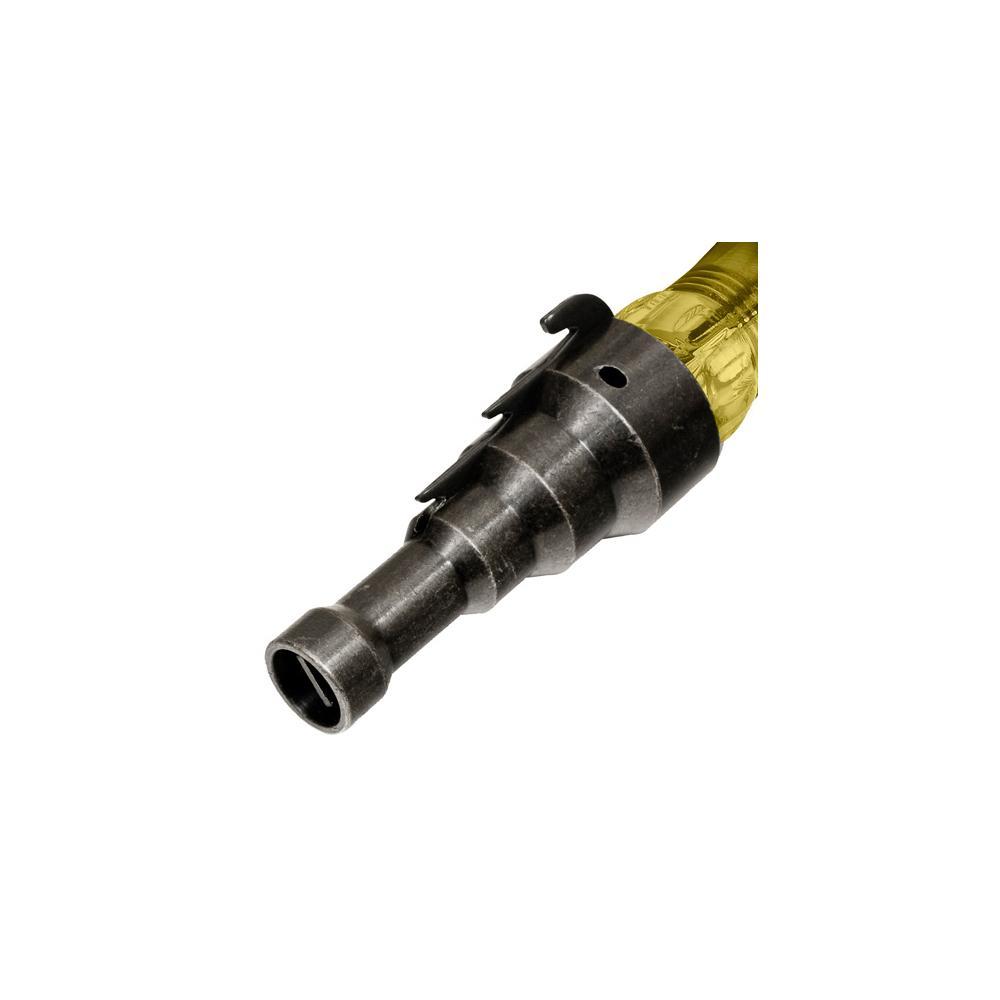

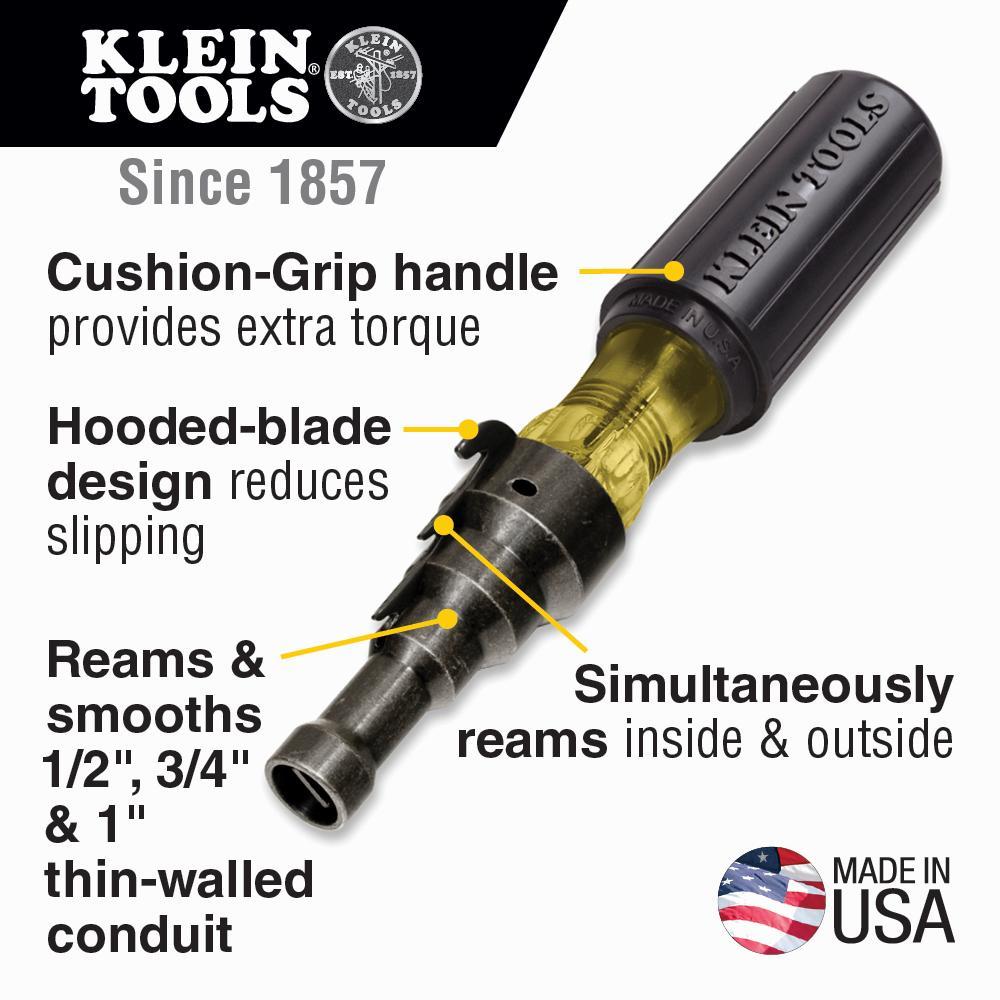

- Reamer's hooded-blade design keeps tip from slipping out of screws, especially when tightening hard-to-reach conduit fittings, thicker hood is designed for rugged use
- Reams and smooths 1/2 in (13 mm), 3/4 in (19 mm), and 1 in (25 mm) thin-wall conduit ends to protect wire and permit correct installation of fittings
- Reams both the inside and outside of the conduit at the same time
- Replaceable reaming blade is now held in place with a 1/16 in hex socket set screw
- Thinner screwdriver blade allows easier access to screw heads
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5LL70 |
| MSC | 01763929 |
-
Alternative Part Number8522431
-
UNSPSC27111701
-
IDEA Index ID8522431
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information
-
