Browning 5/8"-OD QD SH-STYLE BUSHINGS SH-5/8

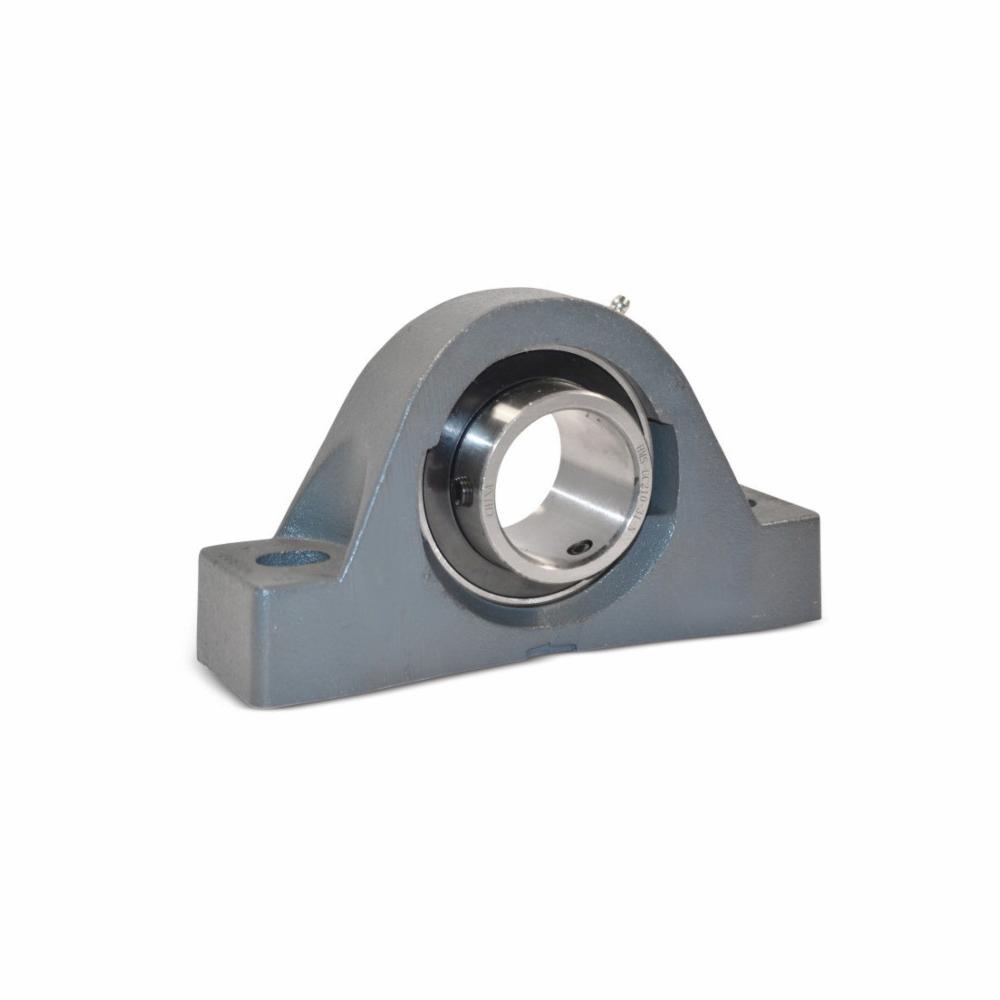

Boston Gear® offers a comprehensive selection of pillow blocks that include spherical bearings with extended inner races with setscrews or eccentric locking collars in stamped steel, ductile iron, cast iron or stainless housings. Ranging from light duty, plain bearing blocks to precision units, they all feature Boston Gear® tradition of design excellence and precision manufacturing.
-
BrandBoston Gear®
-
UPC781711646816
-
Manufacturer Part NumberSH 5/8
-
CountryUSA
-
Load Capacity340 lb
-
Locking DeviceSet Screw
-
Temperature Rating-30 to 300 deg F
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed5000 rpm
-
TypeHigh Backing Standard-Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSynthetic Lip
-
SeriesSH Series
-
Base Width1-1/2 in
-
Base to Bore Centerline1-3/16 in
-
Bolt Center-to-Center Length3-5/16 to 4 in
-
Bore Diameter5/8 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height2-9/32 in
-
Overall Length5-1/16 in
-
Overall Width1-3/8 in
- One piece high grade cast iron housing
- Deep groove ball bearings for high radial and thrust loads
- Precision machined housing bore and spherical outer race for full self-alignment
- Synthetic lip type seal with steel flinger
- Positive locking by setscrews through extended inner race
- 1/4-28 threaded grease fitting and channel through outer race allow relubrication
-
Alternative Part Number30240945
-
UNSPSC31171512
-
Standards/ApprovalsPROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Specification Sheet
-
Catalog
