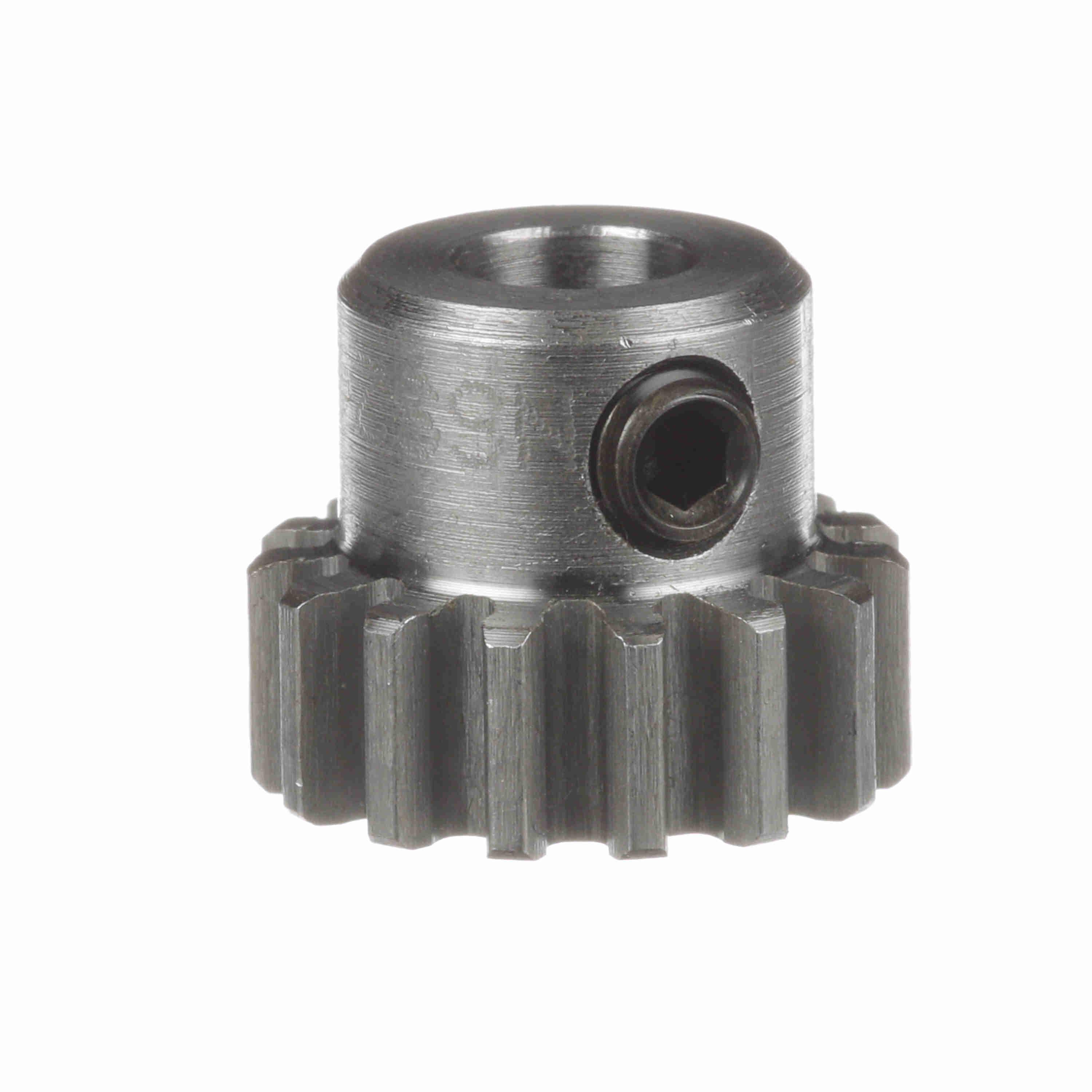

Browning® 1210194 Minimum Plain Bore Type 2 Spur Gear, 24 Diametral Pitch, 14.5 deg Pressure Angle, 1/4 in W Face, 15 Teeth, 5/8 in Dia Pitch, 1/4 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289201396
-
Manufacturer Part Number1210194
-
CountryUSA
-
Face Width1/4 in
-
Pitch Diameter5/8 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter1/2 in
-
Hub Projection5/16 in
-
Diametral Pitch24
-
Number of Teeth15
-
Outside Diameter0.7 in
-
Bore Diameter1/4 in
-
Overall Length9/16 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS2415
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
