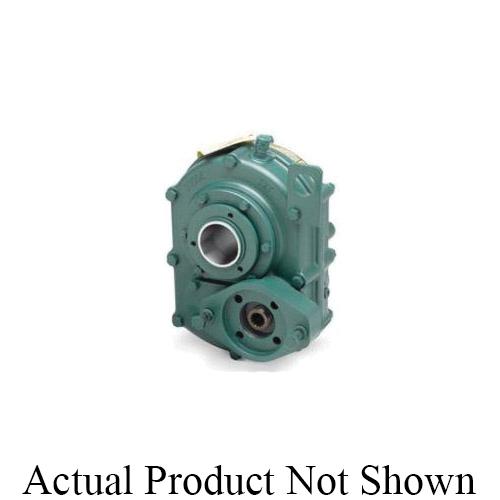

TXT-115-AT Dodge® Torque-Arm® Hydroil® 241069 HXT Double Reduction Speed Reducer, Tapered Bushing Output, 15:1 Gear
Dodge® HXT Torque-Arm® is a hydraulically driven shaft mount helical gear reducer that mounts directly to the driven shaft. Using standard SAE hydraulic motors, the gear motor package is an excellent decision for the toughest environments. HXT is also available in a screw conveyor package (HSCXT) that mounts directly to the trough end of the screw conveyor. By using the optional adapter and drive shaft, HSCXT is an economical decision for portable applications requiring a heavy duty solution.
-
BrandDodge®
-
UPC782475215386
-
Manufacturer Part Number241069
-
CountryUSA
-
FinishGray Painted
-
MaterialCast Iron
-
Gear Ratio15:1
-
TypeDouble Reduction
-
Mounting TypeShaft
-
SeriesHXT
-
Input Maximum Speed2149 rpm
-
Input Size1.44 in
-
Dimensions7.13 in L x 7.06 in W x 9.94 in H
-
Output Size1.44 in
-
Efficiency98.5 %
-
Output TypeTapered Bushing
- Heavy duty sealing system
- Raised motor attachment area with splined input shaft
- Twin tapered bushing system eliminates fretting corrosion and can be installed with regular hand tools
- Screw conveyor trough end adapters
- Perfect fit for harsh duty industries
-
Alternative Part NumberHXT115AT
-
UNSPSC26111524
-
Package Description1/PK
-
Standards/ApprovalsAFBMA|AGMA|ASAMMA|BSA|CMA|MPTA|PTDA Standards
-
Catalog
-
Specification Sheet
