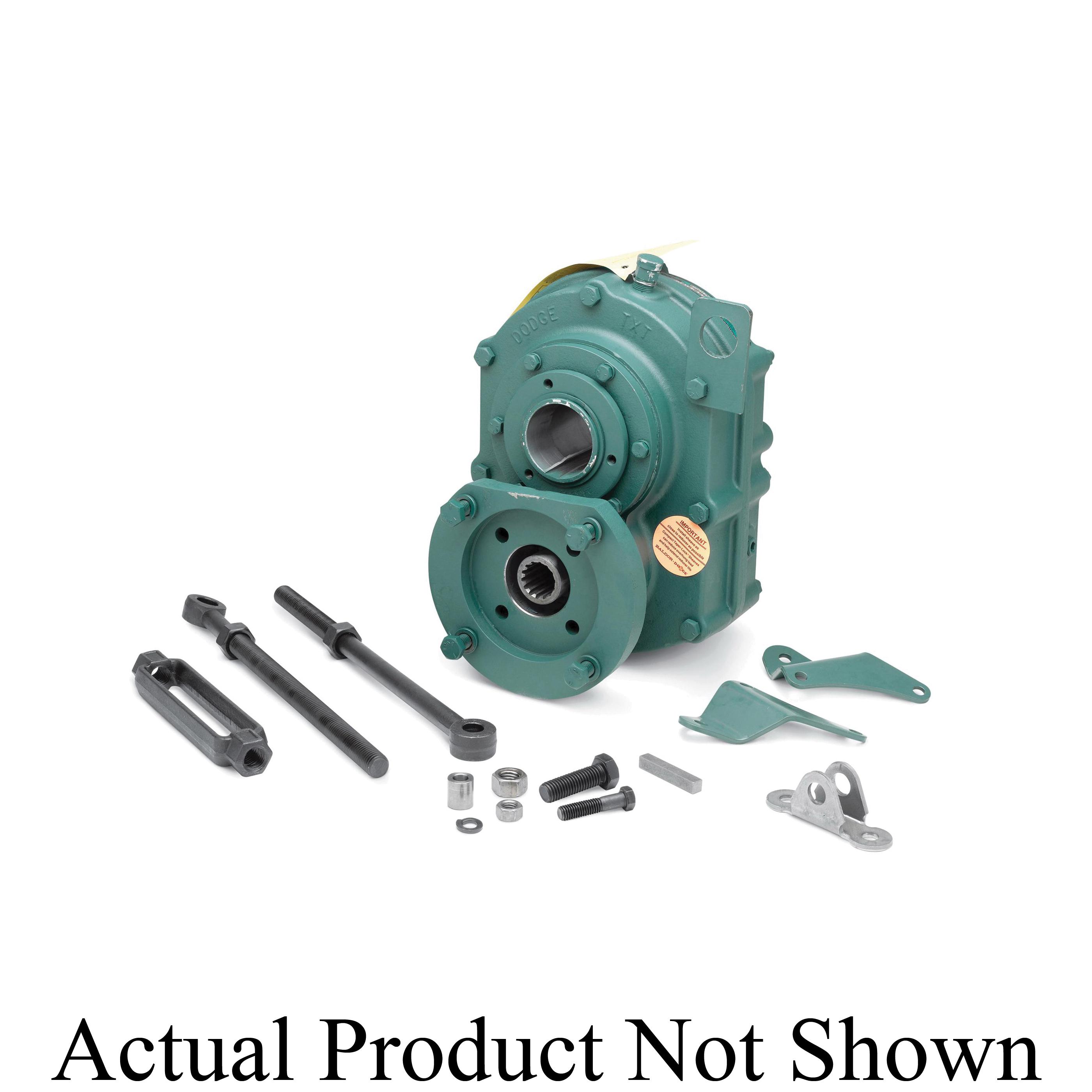

TXT-525-CS Dodge® Torque-Arm® Hydroil® 245570 HXT Double Reduction Speed Reducer, Solid Shaft Input, Straight Bore Output, 24.2 hp, 25:1 Gear, 2336 in-lb Torque Rating
Dodge® HXT Torque-Arm® is a hydraulically driven shaft mount helical gear reducer that mounts directly to the driven shaft. Using standard SAE hydraulic motors, the gear motor package is an excellent decision for the toughest environments. HXT is also available in a screw conveyor package (HSCXT) that mounts directly to the trough end of the screw conveyor. By using the optional adapter and drive shaft, HSCXT is an economical decision for portable applications requiring a heavy duty solution.
-
BrandDodge®
-
UPC782475672035
-
Manufacturer Part Number245570
-
CountryUSA
-
FinishGray Painted
-
MaterialCast Iron
-
Torque Rating2336 in-lb
-
Gear Ratio25:1
-
TypeDouble Reduction
-
Mounting TypeShaft
-
SeriesHXT
-
Horsepower24.2 hp
-
Input Maximum Speed2045 rpm
-
Input Size2.94 in
-
Input TypeSolid Shaft
-
Dimensions13.13 in L x 8.66 in W x 18.31 in H
-
Output Size2.94 in
-
Efficiency98.5 %
-
Output TypeStraight Bore
- Heavy duty sealing system
- Raised motor attachment area with splined input shaft
- Screw conveyor trough end adapters
- Straight bore configurations with stock drive shafts for most CEMA designed screws
- Perfect fit for harsh duty industries
-
Alternative Part NumberHXT525CS
-
UNSPSC26111524
-
Package Description1/PK
-
Standards/ApprovalsAFBMA|AGMA|ASAMMA|BSA|CMA|MPTA|PTDA Standards
-
Catalog
-
Specification Sheet
