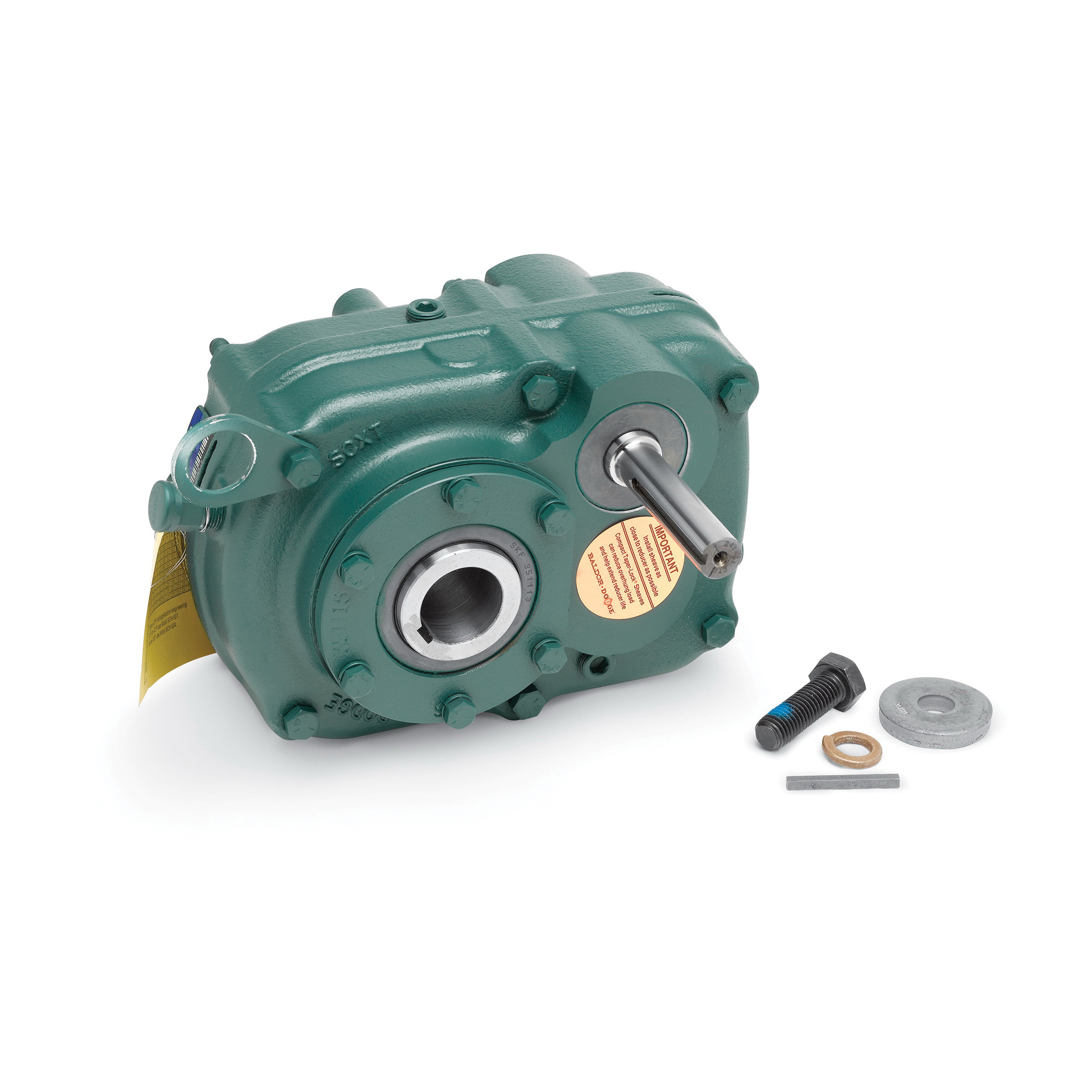

TXT309BT Dodge® 352066 Double Reduction Screw Conveyor Speed Reducer, Shaft Input, Bore Output, 7.52 hp, 25:1 Gear
Dodge® Torque-Arm™ (SCXT) is a helical gear reducer for screw conveyor applications. This unit mounts directly to the trough end of the screw, using the optional adapter and drive shaft. It offers a number of accessories available for the toughest application.
-
BrandDodge®
-
UPC782475205059
-
Manufacturer Part Number352066
-
CountryUSA
-
Lubrication TypeOil
-
FinishGray
-
MaterialCast Iron
-
Gear Ratio25:1
-
TypeDouble Reduction
-
Mounting TypeShaft
-
Horsepower7.52 hp
-
Input Maximum Speed1994 rpm
-
Input Size1-1/8 in Dia
-
Input TypeShaft
-
Dimensions11.41 in W x 8.38 in H
-
Output Size1-15/16 in
-
Output TypeBore
- Heavy duty sealing system
- Steel motor mount system
- Screw conveyor trough end adapter
- Pre-drilled drive shafts
- Straight bore configuration with stock drive shafts for most CEMA designed screws
- 1994 rpm input/75 rpm output
- Case size: 2
- Size: SCXT2A
-
Alternative Part NumberSCXT225A
-
UNSPSC26111536
-
Package DescriptionEACH
-
Standards/ApprovalsABMA|AGMA|ATEX|BSA|CEMA|EASA|MHI|MPTA|NEMA|NSSSGA|PTDA|RoHS Compliant|SME|SWE|TUV Certified
-
WarrantyLimited
-
Warranty Information
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
Recently Viewed
TXT309BT Dodge® 352066 Double Reduction Screw Conveyor Speed Reducer, Shaft Input, Bore Output, 7.52 hp, 25:1 Gear
Dodge® Torque-Arm™ (SCXT) is a helical gear reducer for screw conveyor applications. This unit mounts directly to the trough end of the screw, using the optional adapter and drive shaft. It offers a number of accessories available for the toughest application.
P30-8M-30-1210 Dodge® 112871 HT250 Type A1F High Torque Belt Sprocket, 1/2 to 1-1/4 in Taper-Lock® Bore, 2.954 in OD, 30 Grooves, 3.008 in Dia Pitch, 1-1/2 in W Face
P30-8M-30-1210 Dodge® 112871 HT250 Type A1F High Torque Belt Sprocket, 1/2 to 1-1/4 in Taper-Lock® Bore, 2.954 in OD, 30 Grooves, 3.008 in Dia Pitch, 1-1/2 in W Face
P72-8M-30-2517 Dodge® 112881 HT250 Type B1F High Torque Belt Sprocket, 1/2 to 2-11/16 in Taper-Lock® Bore, 7.164 in OD, 72 Grooves, 7.218 in Dia Pitch, 1-1/2 in W Face
P72-8M-30-2517 Dodge® 112881 HT250 Type B1F High Torque Belt Sprocket, 1/2 to 2-11/16 in Taper-Lock® Bore, 7.164 in OD, 72 Grooves, 7.218 in Dia Pitch, 1-1/2 in W Face

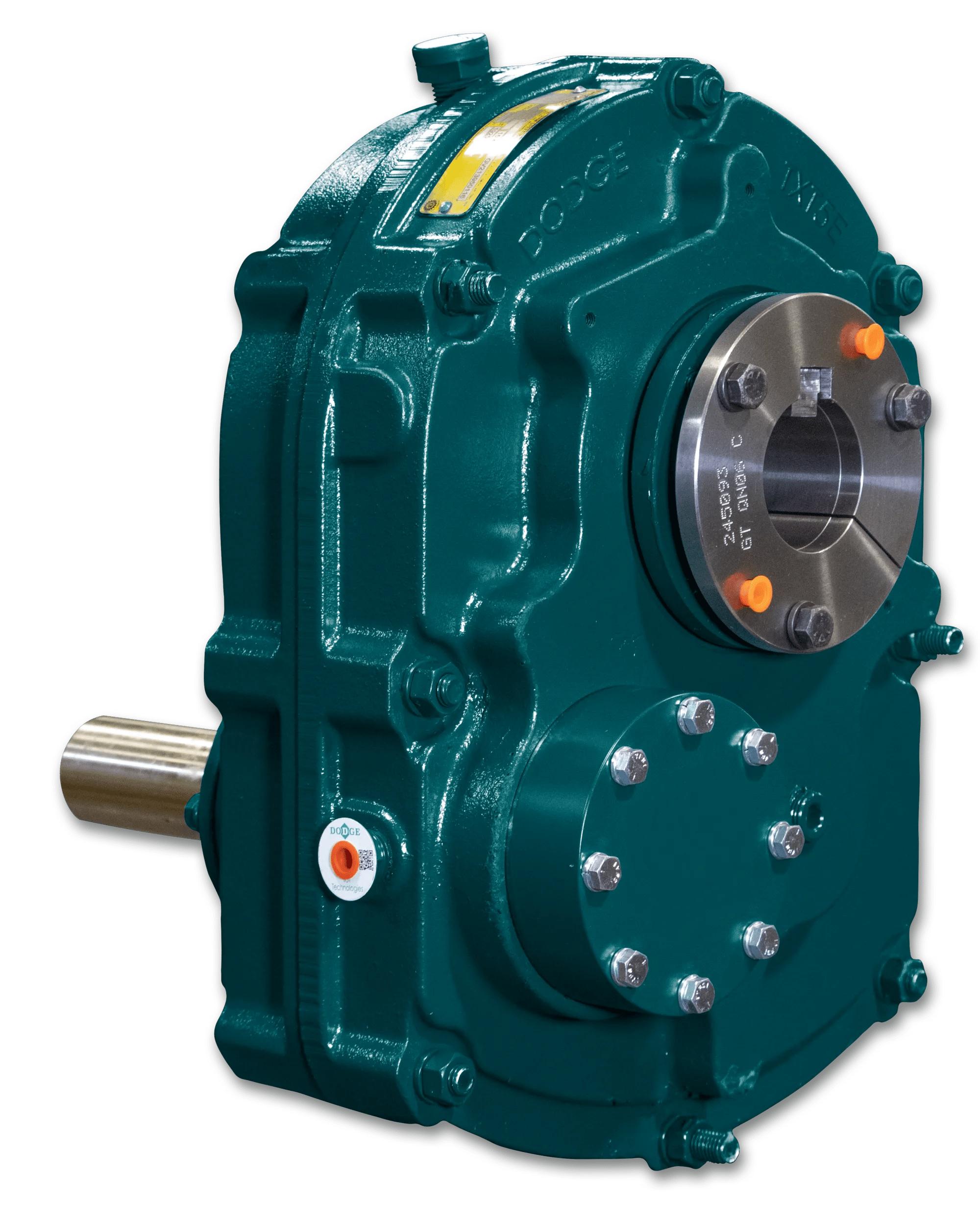

TXT515CT Dodge® Torque-Arm™ II 909001 Heavy Duty Double Reduction Speed Reducer, Solid Shaft Input, Tapered Hollow Bore Output, 100 hp, 25:1 Gear
