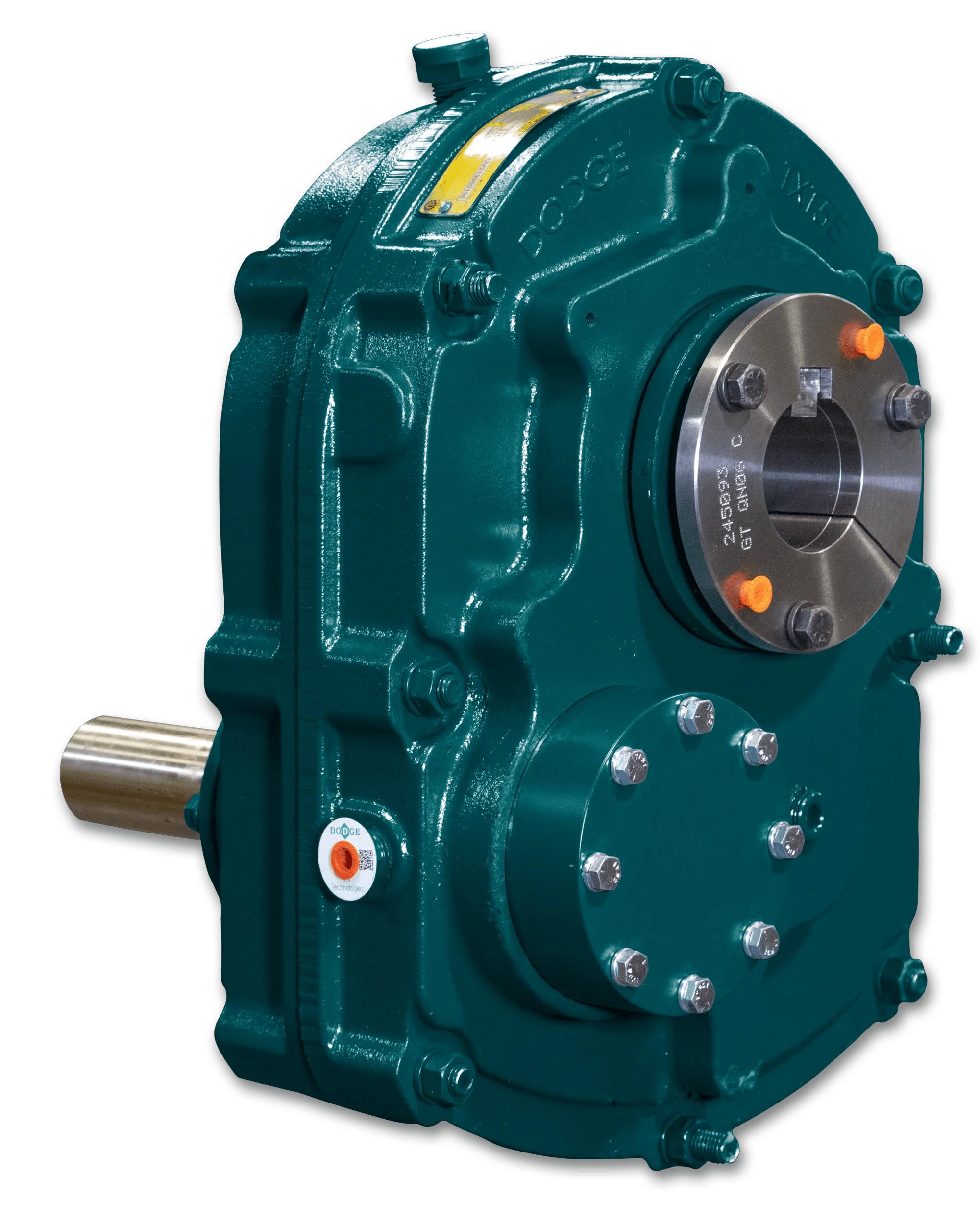

SCXT-315-C Dodge® E243525 2-Stage Reducer, Shaft Input, Screw Terminal Output, 15 Gear
-
BrandDodge®
-
UPC782477848209
-
Manufacturer Part NumberE243525
-
CountryUSA
-
MaterialCast Iron
-
Gear Ratio15
-
Type2-Stage
-
Input Maximum Speed2083 rpm
-
Input Size1.125 in Dia
-
Input TypeShaft
-
Dimensions13.7 in D
-
Output Size5.62 in L
-
Output TypeScrew Terminal
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
