Dichtomatik N1.00X031.8 O-Ring, 31.8 mm ID, Nitrile Rubber, 70 Shore A Durometer, Custom H-1 x 31.80

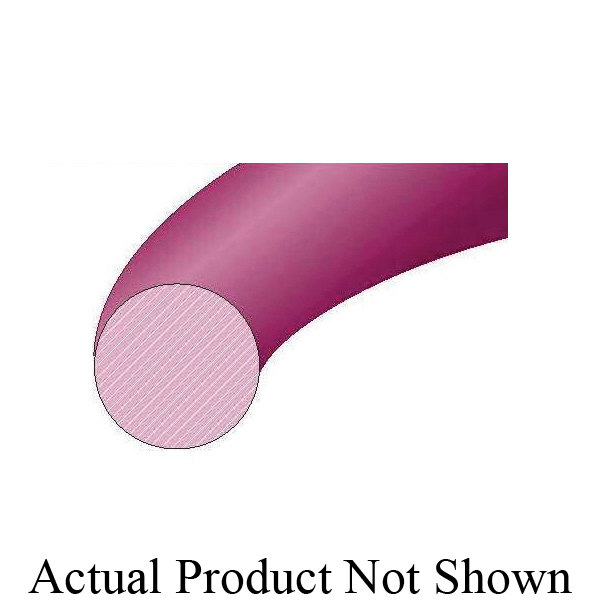

O-rings are closed circular rings of circular cross-section. They are made through vulcanization from form tools as a complete ring. The sealing function of the O-ring is achieved by the deformation of the cross-section when installed and compressed in its housing. The O-ring can be compressed either radially or axially in its installation housing. In operating conditions the pressure exerted by the media reinforces the sealing function, as under pressure the elastomer material functions as a non-compressible fluid.
-
BrandDichtomatik
-
Manufacturer Part NumberN1.00X031.8
-
CountryUSA
-
Temperature Rating40 to 120 deg F
-
MaterialNitrile Rubber
-
ColorBlack
-
Inside Diameter31.8 mm
-
Durometer70 Shore A
- NBR is a very commonly used material for O-rings because of its good mechanical properties, its resistance to lubricants and greases and its relatively low cost
- The physical and chemical resistance properties of NBR materials are determined by the acrylonitrile (ACN) content of the base polymer which can vary between 18 and 50%
- Low ACN content ensures good flexibility at low temperatures, but offers limited resistance to oils and fuels
- As the ACN content increases, the low temperature flexibility reduces and the resistance to oils and fuels improves
- Physical and chemical resistance properties of NBR materials are also affected by the cure system of the polymer
- Peroxide cured materials have improved physical properties, chemical resistance and thermal properties as compared to sulfur-donor-cured materials
- Standard grades of NBR are typically resistant to mineral oil-based lubricants and greases, many grades of hydraulic fluids, aliphatic hydrocarbons, silicone oils and greases and water to about 80 deg C
- NBR is generally not resistant to aromatic and chlorinated hydrocarbons, fuels with a high aromatic content, polar solvents, glycol based brake fluids and non-flammable hydraulic fluids (HFD)
- NBR also has low resistance to ozone, weathering and aging, but in many applications this has no negative effect
-
UNSPSC31401503
-
Package DescriptionEACH
-
Standards/ApprovalsASTM D1418|AS 568B|BS 1806|JIS 2401|ISD Certified|NFPA Listed|PTDA Certified
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
