Littelfuse® TLO020 Time Delay Plug Fuse, 20 A, 125 VAC, 10 kA, Round Body
Littelfuse® TLO020 Time Delay Plug Fuse, 20 A, 125 VAC, 10 kA, Round Body
-
BrandLittelfuse®
-
UPC079458440713
-
Manufacturer Part NumberTLO020
-
CountryUSA|Canada
-
Terminal TypeThreaded Stud
-
TypeTime Delay
-
Mounting TypeThreaded
-
Voltage Rating125 V AC
-
Amperage Rating20 A
-
SeriesTLO
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating10 kA
-
Body TypeRound
- The national electric code now permits Edison base fuses to be used only for replacements in existing installations and then, only when there is no evidence of overfusing or tampering
- All new Edison-based fuse holders must have type S fuse adapters installed before they are placed in service

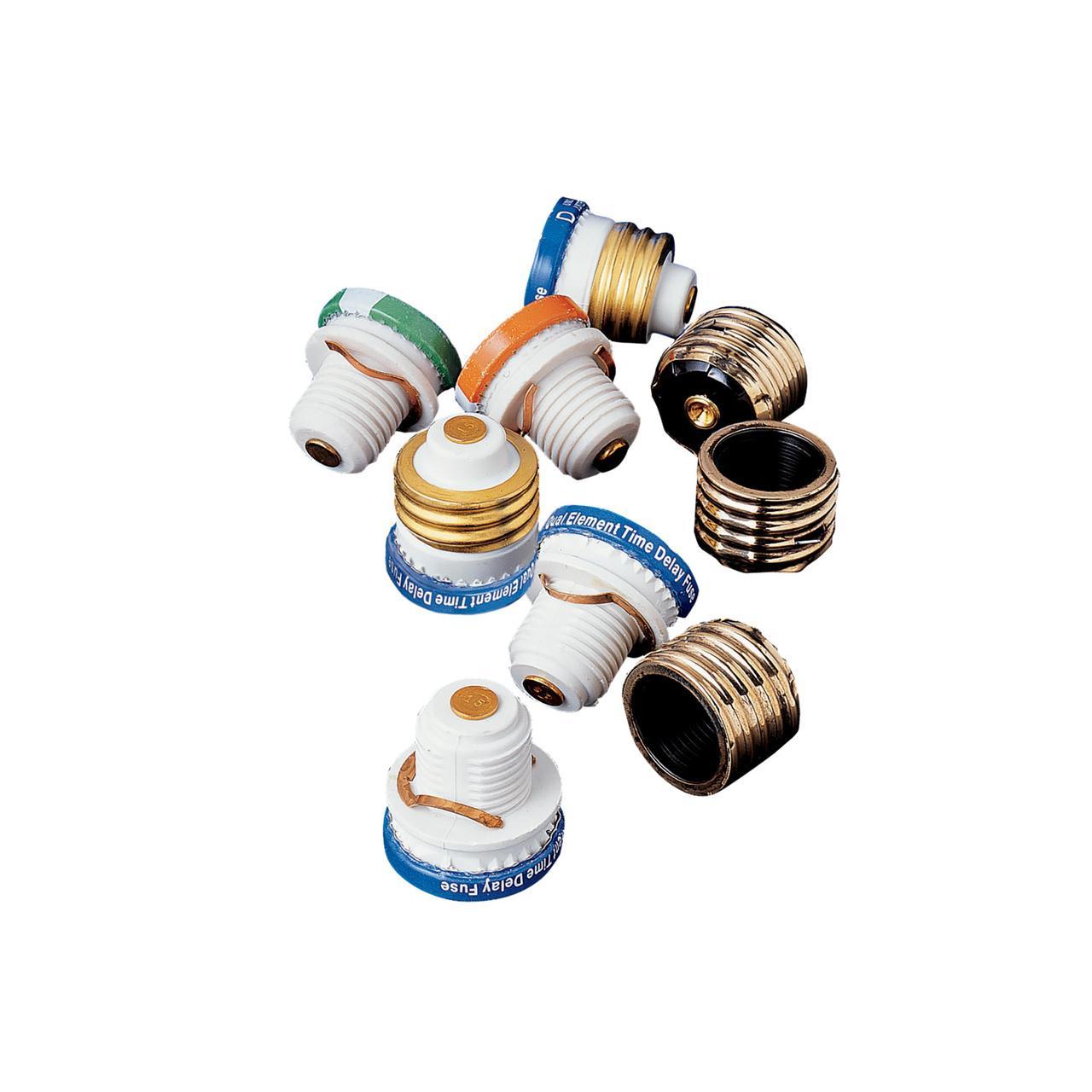

- Designed to prevent installation of wrong size fuses, Type S adapters (SAO series) screw into Edison base fuse holders so they may accept Type S fuses
- Once installed the adapters cannot be removed
- To prevent shunting of open fuses or over-fusing and to reduce nuisance fuse opening, it is recommended that SAO adapters with properly rated SOO series fuses be installed in all Edison base fuse holders
- 10 kA (rms symmetrical) interrupt rating
-
Alternative Part Number0TLO020.Z|8588584
-
UNSPSC39121605
-
IDEA Index ID8588584
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-11
-
Specification Sheet
-
Owners/User Manual
-
Technical Bulletin
