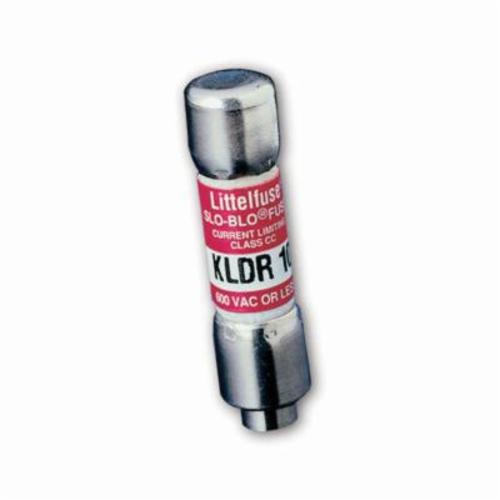

Littelfuse 25-AMP 600-VOLT AC TIME DELAY FUSE LIT KLDR-25
KLDR fuses are time delay fuses designed to protect control transformers, solenoids and similar inductive components with high magnetizing currents during the first half-cycle. They provide excellent protection of motor branch circuits containing IEC or NEMA rated motor controllers or contactors.
-
BrandLittelfuse®
-
Manufacturer Part NumberKLDR025
-
CountryUSA|Canada
-
Terminal TypeClip
-
MaterialMelamine
-
ClassCC
-
Rejection/Non-RejectionRejection
-
Mounting TypeHolder
-
Voltage Rating600 V AC/300 V DC
-
Amperage Rating25 A
-
SeriesKLDR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200/20 kA
-
Body Size0.406 in Dia x 1.5 in L
-
ElementDual
- Class CC fuses are the smallest 600 V, 200000 A.I.R. fuses approved for branch circuit protection
- Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
- Extremely current limiting reduces damage caused by heating and magnetic effects of short-circuit currents
- Nickel plated bronze cap
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 486M42 |
-
UNSPSC39121606
-
Package Description10/PK
-
Standards/ApprovalsCSA Certified|CE Certified|UL Listed|RoHS Compliant
-
Specification Sheet
