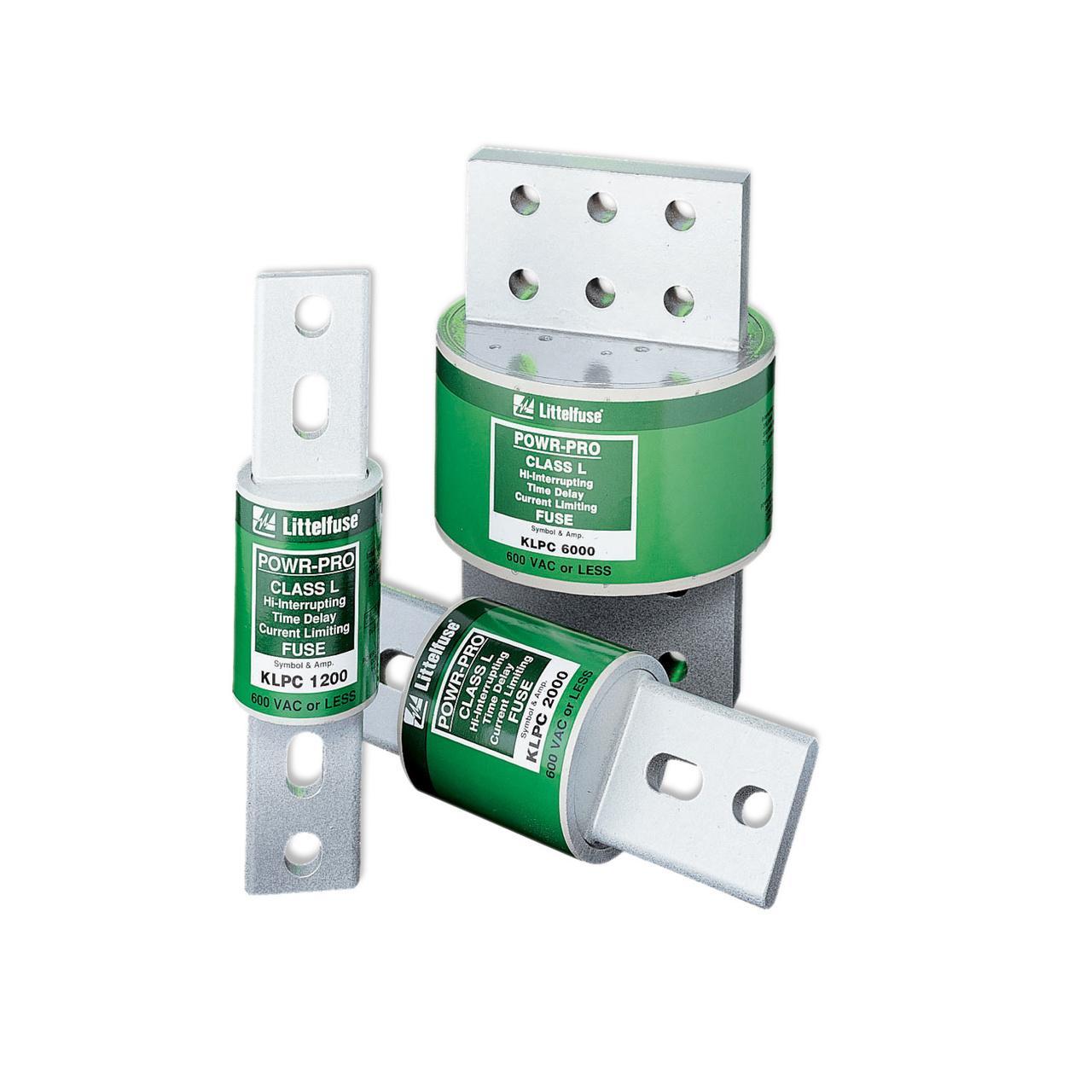

Littelfuse® POWR-GARD® KLPC1000 Current Limiting Time Delay Fuse, 1000 A, 600 V AC/480 V DC, 20/200 kA Interrupt, L Class, Cylindrical Body
KLPC series POWR-PRO® fuses provide ideal over current protection for circuits from 200 through 6000 A. KLPC series POWR-PRO® fuses specification-grade construction and performance meet or exceed the most stringent project specifications: 99.9% pure silver links, silver plated copper end bells, glass reinforced melamine bodies, o-ring seals between body and end bells and granular quartz fillers. KLPC series POWR-PRO® fuses are the only UL listed Class L fuses that provide a minimum of ten seconds time delay at 500% rated current and are also as current limiting as the fastest class L fuse on the market. On average, the peak let through currents of KLPC series fuses are 10% less than any other "time delay" class L fuse.
-
BrandLittelfuse®
-
UPC079458301052
-
Manufacturer Part NumberKLPC1000
-
CountryUSA
-
Terminal TypeKnife Blade
-
MaterialMelamine
-
ClassL
-
TypeCurrent Limiting
-
Mounting TypeBolt
-
Voltage Rating600 V AC/480 V DC
-
Amperage Rating1000 A
-
SeriesKLPC
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating20/200 kA
-
Body Size2-1/2 in Dia x 10-3/4 in L
-
Body TypeCylindrical
- Eliminate unnecessary downtime
- KLPC POWR-PRO® series fuses time delay withstands system surges and keeps your circuits in service
- Best protection for system components
- Co-ordinates with other system components
- KLPC series fuses provide maximum coordination with fuses and circuit breakers both on the line and load side of the fuses
- Eliminate need to oversize fuses
- This may permit the use of smaller less expensive switches and since the lower rated fuses are more current-limiting, equipment receives even better protection
- 300 kA AC interrupting rating (self certified)
- Silver links, silver plated copper end bells, glass reinforced melamine bodies, o-ring seals between body and end bells and granular quartz fillers
-
Alternative Part NumberKLPC1000X|8582517
-
UNSPSC39121627
-
IDEA Index ID8582517
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-10, E81895|CSA LR29862|Federal Specification QPL-W-F-1814|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
-
Technical Bulletin
