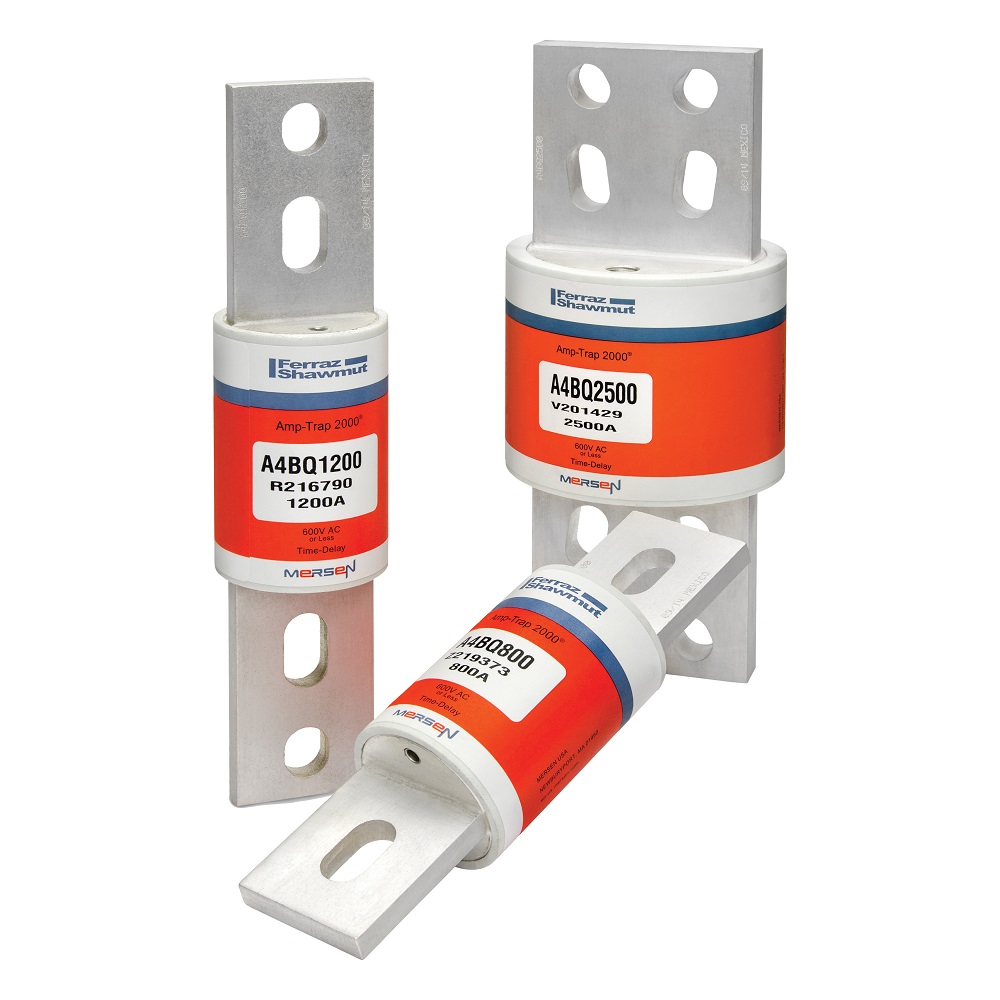

Mersen AMP-TRAP® 2000 SmartSpot® A4BQ200 Current Limiting Low Voltage North American Time Delay Power Fuse, 200 A, 600 V AC, 200 kA Interrupt, L Class, Cylindrical Body
Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.
-
BrandMersen
-
UPC782001931094
-
Manufacturer Part NumberA4BQ200
-
CountryUSA
-
Terminal TypeBlade
-
MaterialFiberglass
-
ClassL
-
Rejection/Non-RejectionRejection
-
Response Time4 s at 500%
-
TypeCurrent Limiting Low Voltage North American Time Delay
-
Mounting TypeBolted-On
-
Voltage Rating600 V AC
-
Amperage Rating200 A
-
SeriesA4BQ
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 kA
-
Body Size2 in Dia x 8-5/8 in L
-
Body TypeCylindrical
-
ElementDual
- Fastest operation under short circuit conditions - let-thru currents are typically 20% lower, with a corresponding let-thru energy (clearing I2t) up to 40% lower than the next fastest class L fuse
- Time delay for high inrush loads such as motors and transformers, without nuisance opening
- 300 kA interrupting rating, self certified (UL witnessed)
- Most current limiting for lowest peak let-thru current, even at fault currents up to 300 kA
- Pure silver links ensure lowest let-thru current and longer fuse life
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns and "blackouts"
- Rejection style design prevents replacement errors (when used with recommended fuse blocks)
- High visibility orange label gives instant recognition
- Reduced inventory because A4BQ can replace all older types of class L fuses now in service
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Silver plated copper contact
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4ZAH7 |
-
Alternative Part Number7713652
-
UNSPSC39121606
-
IDEA Index ID7713652
-
Package DescriptionEACH
-
Standards/ApprovalsCSA C22.2 No. 248.10|DC Listed|RoHS Compliant|UL 248|UL 248-10 File No. E2137
-
Specification Sheet
-
Full Engineering Drawing
-
Line Drawing
