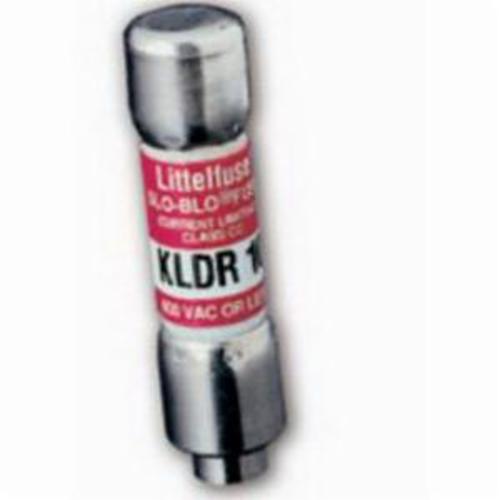

Littelfuse® POWR-GARD® KLDR-5 KLDR Current Limiting Time Delay Fuse, 5 A, 600 V AC/300 V DC, 200/20 kA Interrupt, CC Class, Cartridge Body
KLDR fuses are time delay fuses designed to protect control transformers, solenoids and similar inductive components with high magnetizing currents during the first half-cycle. they provide excellent protection of motor branch circuits containing IEC or NEMA rated motor controllers or contactors.
-
BrandLittelfuse®
-
UPC007945879263
-
Manufacturer Part NumberKLDR-5
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialMelamine
-
ClassCC
-
Rejection/Non-RejectionRejection
-
TypeCurrent Limiting
-
Mounting TypeHolder
-
Voltage Rating600 V AC/300 V DC
-
Amperage Rating5 A
-
SeriesKLDR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200/20 kA
-
Body Size0.41 in Dia x 1.5 in L
-
Body TypeCartridge
- Class CC fuses are the smallest 600 V, 200,000 A.I.R. fuses approved for branch circuit protection
- Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
- Extremely current limiting reduces damage caused by heating and magnetic effects of short-circuit currents
- Nickel-plated bronze caps
-
UNSPSC39121604
-
Standards/ApprovalsUL File No E81895|CSA File No LR29862|RoHS Compliant
