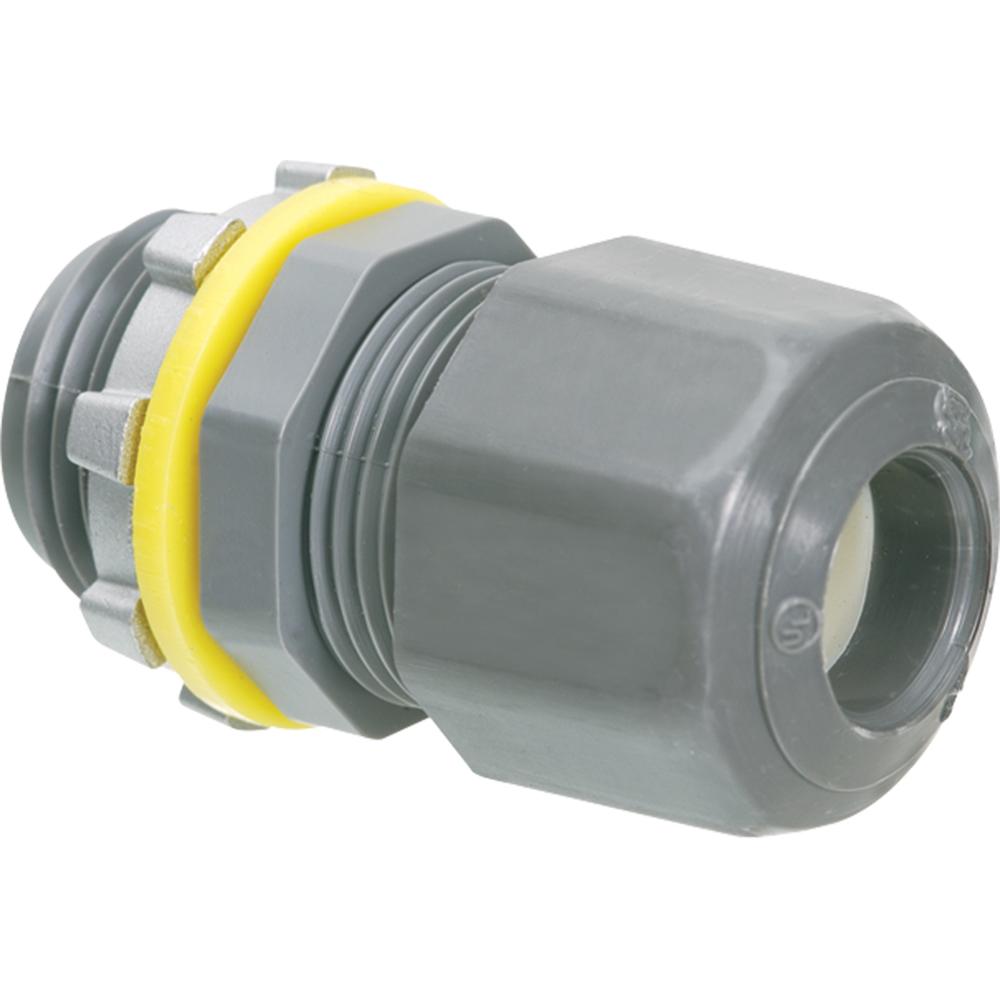

Arlington LPCG503 Low Profile Liquidtight Oiltight Strain Relief Cord Connector, 1/2 in Trade, 0.1 to 0.3 in Cable Openings, Nylon/Polyethylene/Santoprene™/Zinc
Arlington low profile cord connector has a unique grommet with gripping fingers. These connectors have the largest cord range in the industry, so there are fewer items to stock. a liquidtight seal and superior pullout resistance is accomplished by just tightening the nut. a sealing ring is furnished to assure a liquidtight seal when installing in non-threaded openings.
-
BrandArlington
-
UPC018997503503
-
Manufacturer Part NumberLPCG503
-
CountryUSA|Canada
-
Cable Openings0.1 to 0.3 in
-
MaterialNylon/Polyethylene/Santoprene™/Zinc
-
Trade Size1/2 in
-
ColorGray
-
TypeLow Profile Liquidtight Oiltight Strain Relief
-
Dimensions0.978 in L x 0.978 in W x 1.792 in H
- Oil-tight, furnished with sealing ring and locknut
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 4JWL9 |
-
Alternative Part Number8283830
-
UNSPSC39121420
-
IDEA Index ID8283830
-
Package DescriptionEACH
-
Standards/ApprovalsUL and CSA
-
Warranty1 year
-
Warranty Information
-
Specification Sheet
-
Line Drawing
