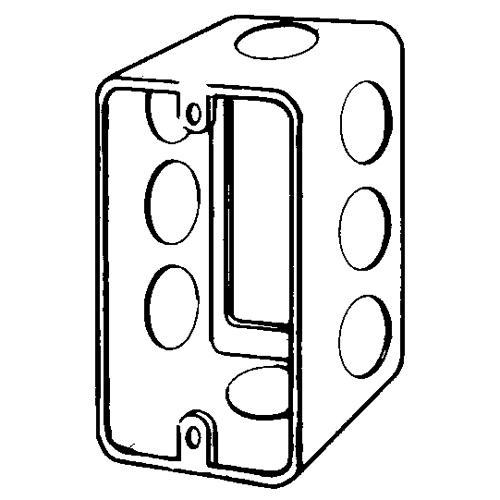

Appleton® ETP™ 4SSLE-1/2 Handy Box Extension Ring, 1 Gang, 1-1/2 in D, Steel
Appleton® ETP™ 4SSLE-1/2 Handy Box Extension Ring, 1 Gang, 1-1/2 in D, Steel
-
BrandAppleton®
-
UPC687855753055
-
Manufacturer Part Number4SSLE-1/2
-
CountryUSA|Canada
-
Cable Entry SizeKnockout
-
Capacity10.3 cu-in
-
MaterialSteel
-
Mounting TypeSurface
-
Number of Gangs1
-
Number of Knockouts8
-
Depth1-1/2 in
-
Knockout Size1/2 in
- Single and double-gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls
- Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
- All concentric or eccentric knockouts are 1/2 to 3/4 in combinations
- (6) 1/2 in side, (2) 1/2 in end knockout
- 0.0625 in THK
- For use 4 x 2-1/8 in handy box
- Provided with flat ground tapped hole
-
Alternative Part Number8994017
-
UNSPSC39121320
-
IDEA Index ID8994017
-
Package DescriptionEACH
-
Standards/ApprovalsUL 514A|UL 514B|UL 514D File No. E2527|NEMA FB-1|OS-1 Compliant|ARRA Compliant|Buy American Act Compliant
-
Specification Sheet
