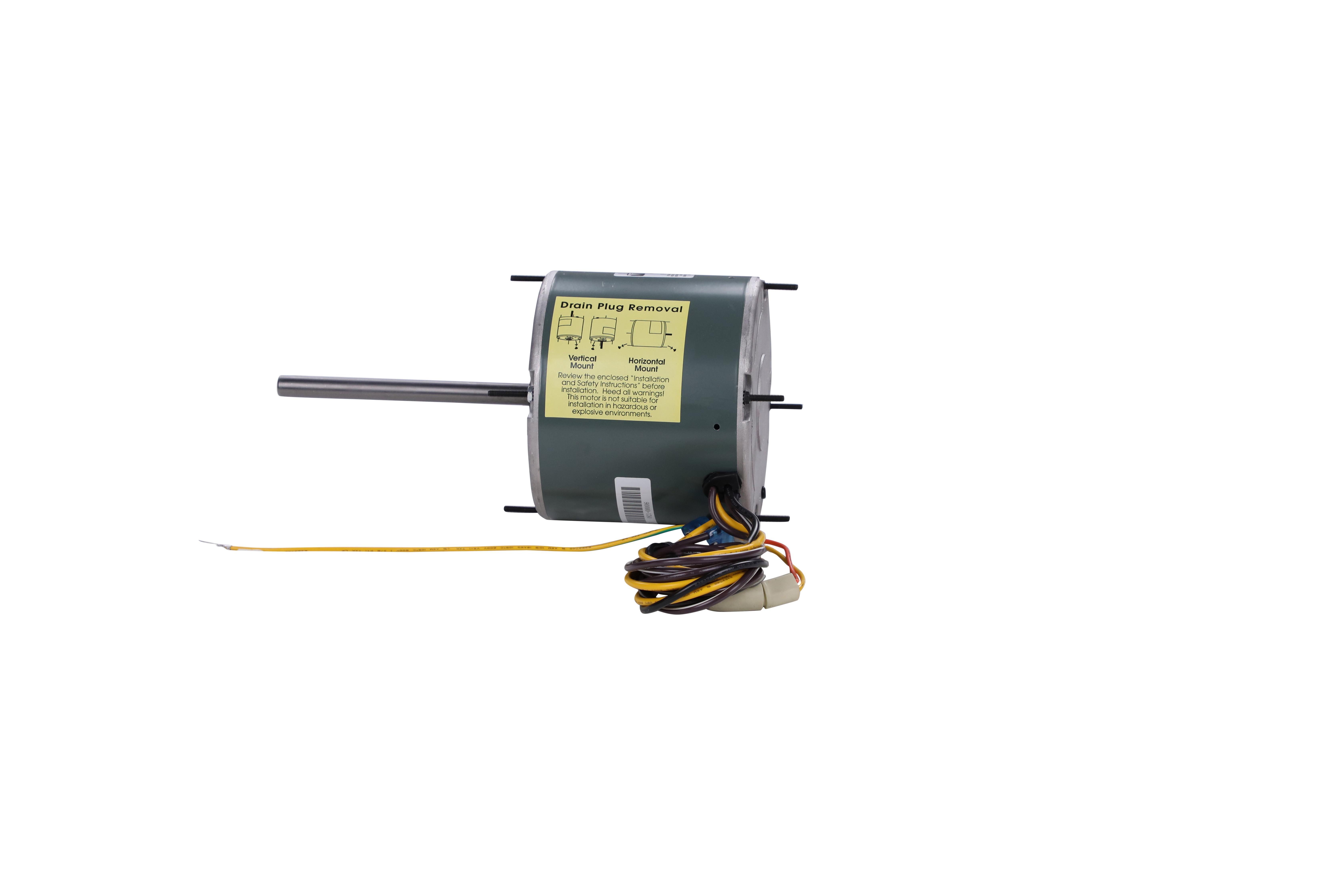

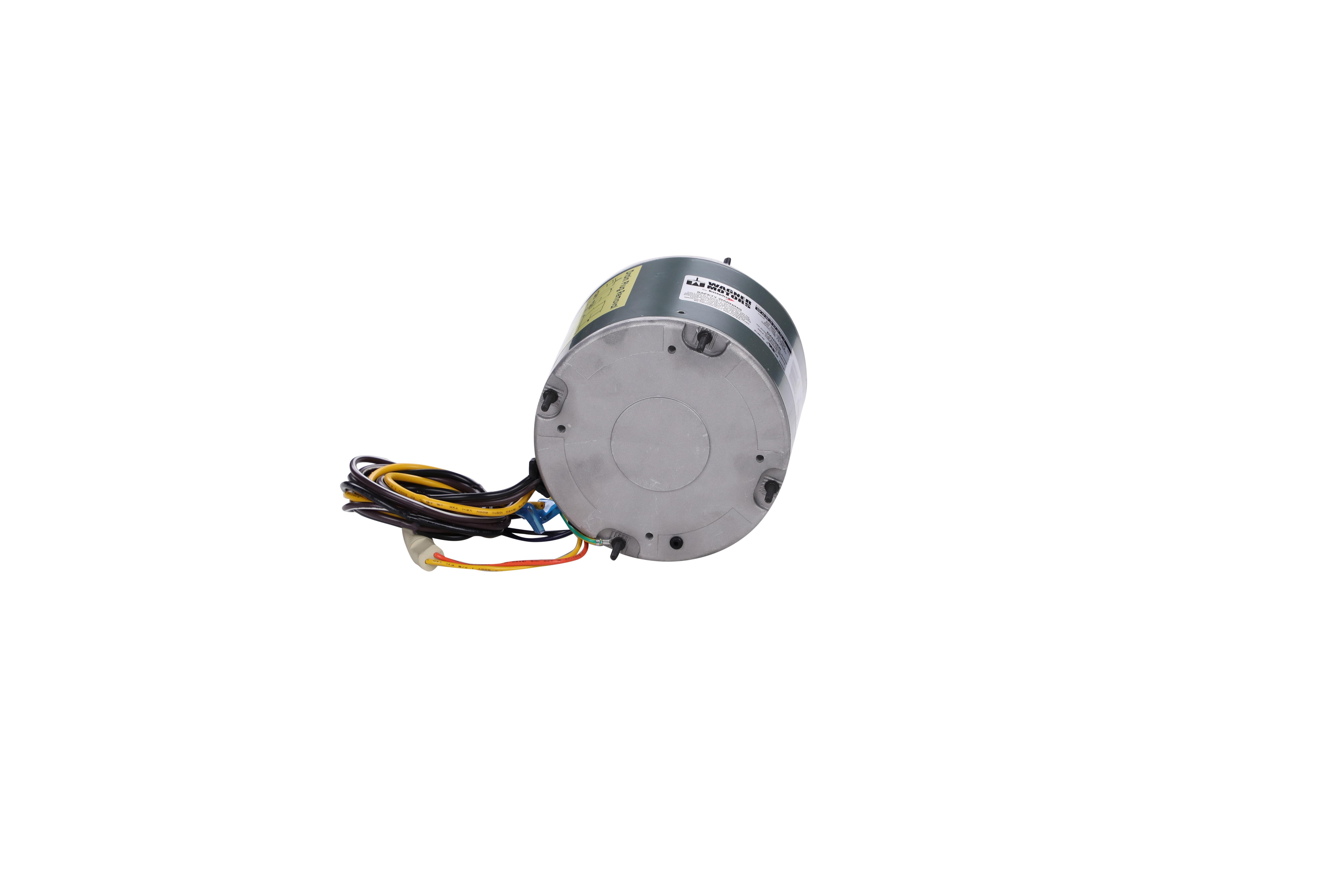

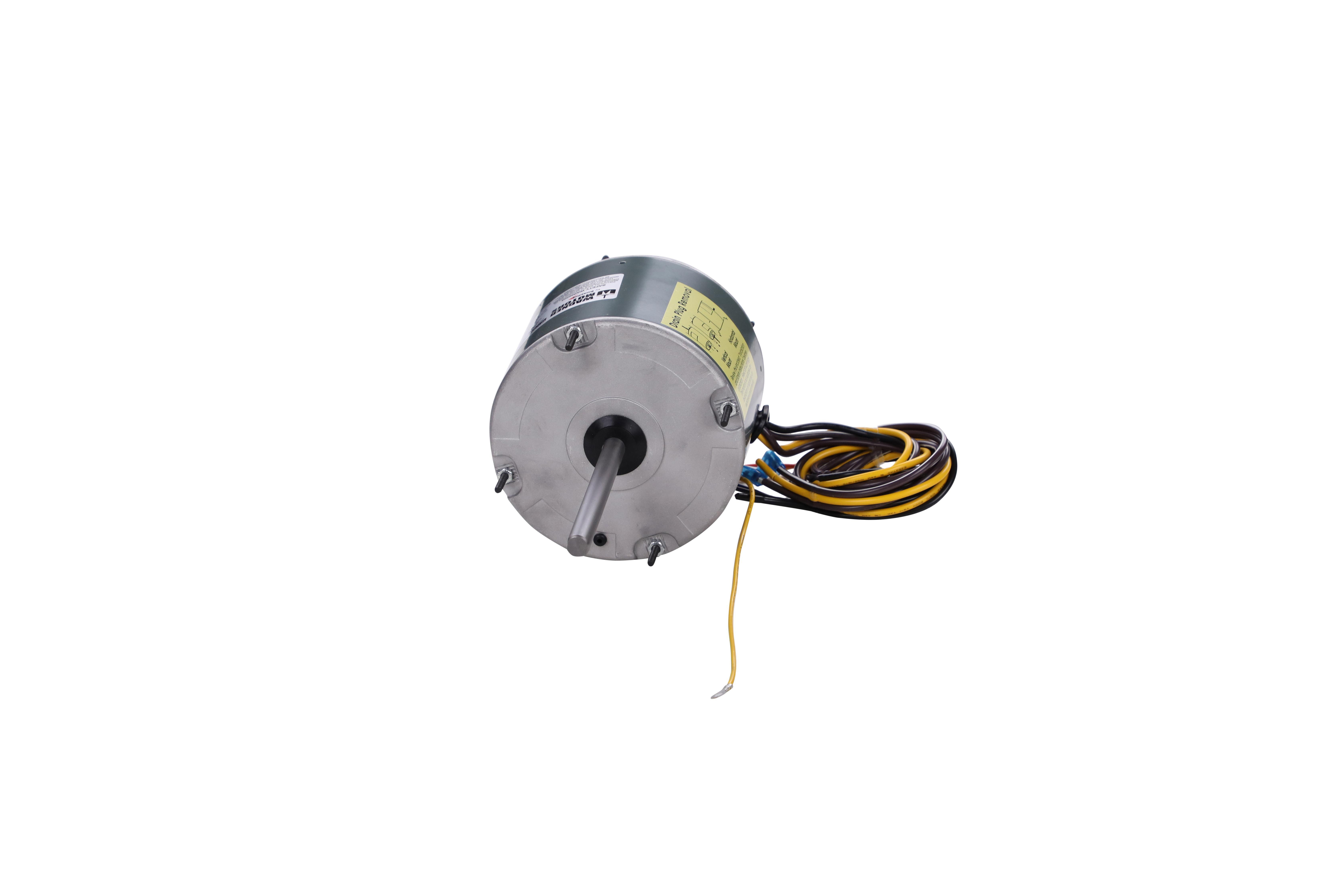

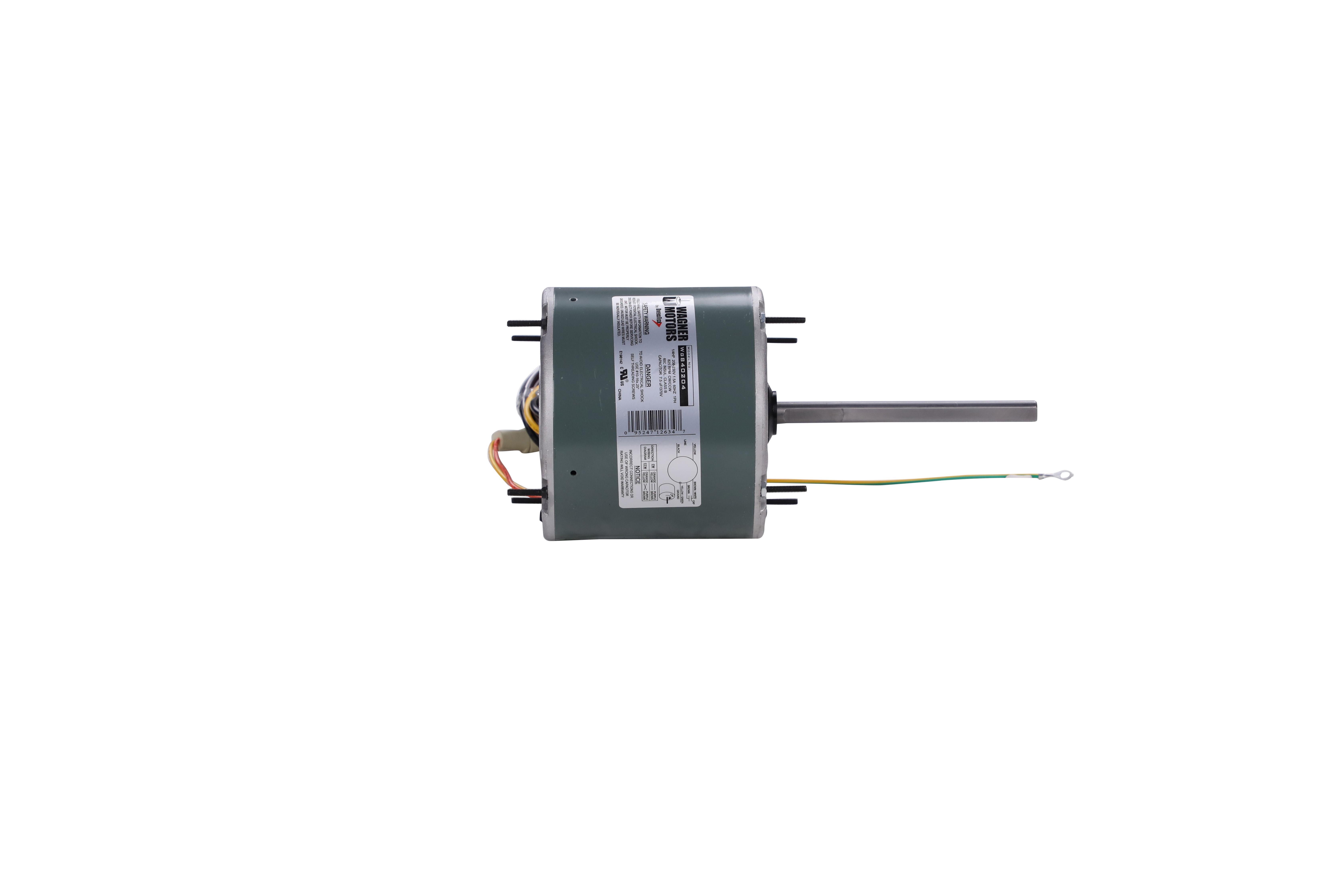

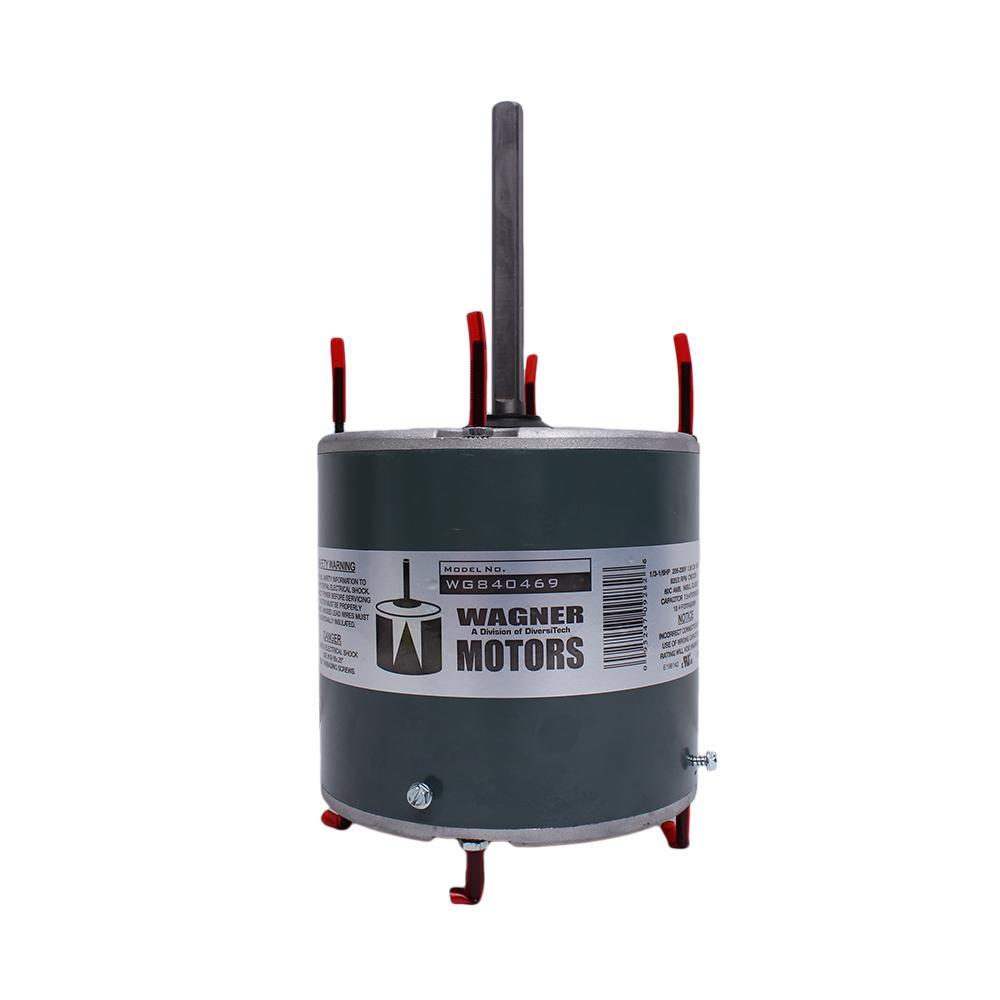

Wagner by Diversitech WG840469 Multi-Horsepower Direct Drive Furnace Blower Motor, Totally Enclosed Enclosure, 1/3, 1/4, 1/5, 1/6 hp, 208/230 V AC, 60 Hz, 1 Phase, 48 Frame, 825 rpm Speed, Belly Band/Shaft Up/Down Mounting
This Wagner® WG840469 Multiple Horsepower Condenser Fan Motors, 208-230V, 825/2 Speed, 1/3HP MAX is specially designed to cover a range of applications. The condenser fan motor is electrically reversible and features high and low speeds.
-
BrandWagner by Diversitech
-
Manufacturer Part NumberWG840469
-
CountryUSA
-
Temperature Rating140 deg F
-
Frame48
-
Frequency Rating60 Hz
-
TypeMulti-Horsepower
-
Mounting TypeBelly Band/Shaft Up/Down
-
RotationReversible
-
Voltage Rating208/230 V AC
-
Amperage Rating2.8/2/1.7/1.5 A Full Load
-
Application TypeCondenser Fan Motors
-
Service Factor1
-
Horsepower1/3, 1/4, 1/5, 1/6 hp
-
Shaft Size1/2 in Dia x 5 in L
-
Dimensions5.59 in Dia x 10.292 in L
-
Bearing TypeBall
-
Number of Speeds2
-
Insulation ClassClass B
-
Speed825 rpm
-
Enclosure TypeTotally Enclosed
-
Phase1
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
-
UNSPSC26101100
-
Package DescriptionEACH
-
Warranty2 Years
-
Specification Sheet
-
Catalog
