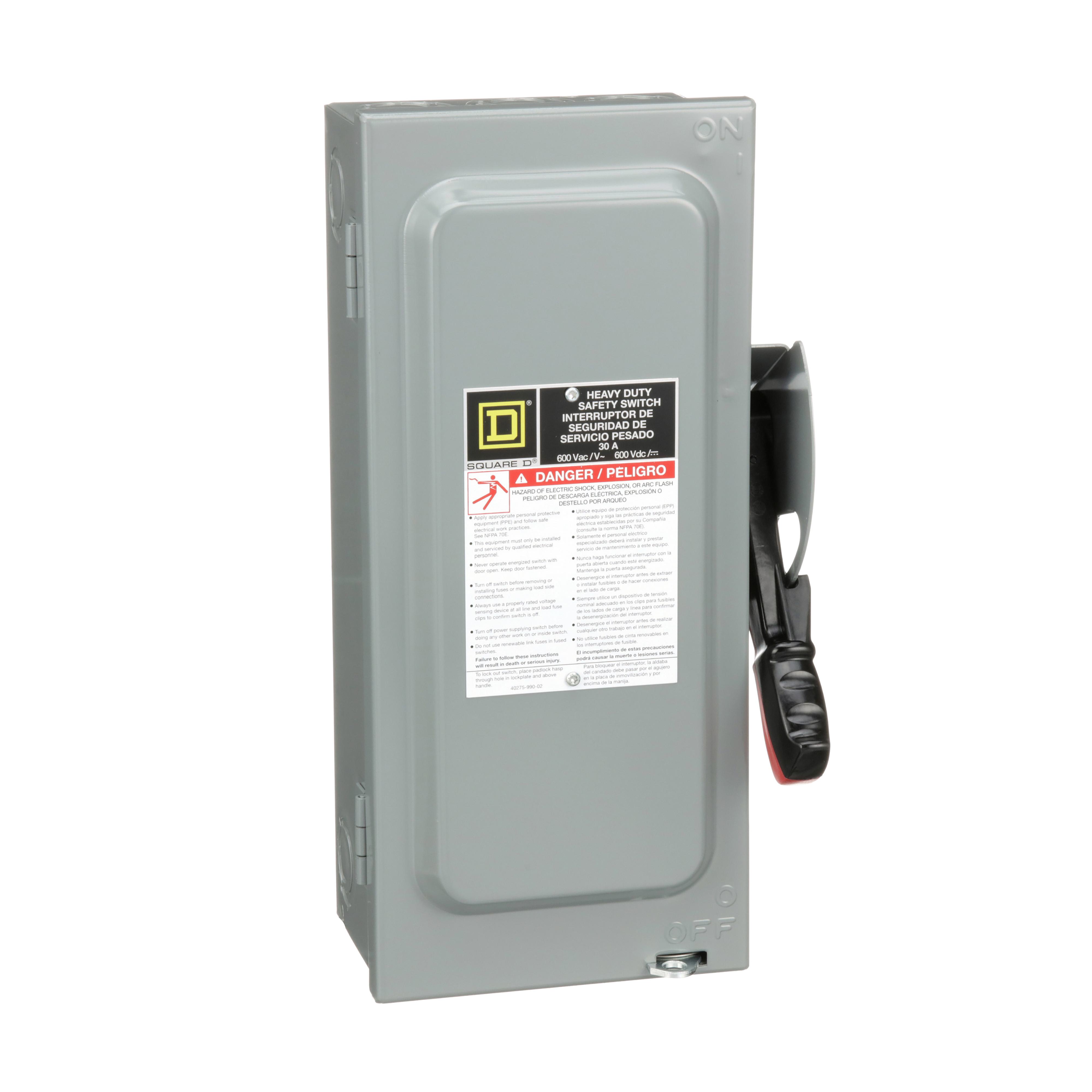

Square-D 30-AMP 3P 600-VAC FUSED DISCONNECT SQU H-361-N
Visible blade heavy duty safety switches are designed for application where maximum performance and continuity of service are required. All heavy duty safety switches feature quick-make, quick-break operating mechanism, a dual cover interlock and a color coded indicator handle. They are suitable for use as service equipment when equipped with a field- or factory installed neutral assembly or equipment grounding kit, unless a 600Y/347 VAC or 480 Y/277 VAV, 1000 A or greater, solidly grounded WYE system is used.
-
BrandSquare D™
-
UPC785901481911
-
Manufacturer Part NumberH361N
-
CountryUSA|Canada
-
FinishPainted
-
Terminal TypeLug
-
MaterialSteel
-
Frequency Rating50/60 Hz
-
TypeHeavy Duty Fusible
-
Contact Form3PST
-
Mounting TypeSurface
-
Actuator TypeHandle
-
Voltage Rating600 V AC/DC
-
Amperage Rating30 A
-
Horsepower7-1/2 hp, 15 hp
-
Short Circuit Current Rating10/200 kA
-
Number of Poles3
-
Dimensions7.55 in W x 4.87 in D x 14.6 in H
-
Number of Wires4
-
Enclosure TypeNEMA 1
-
Phase3
- Visible blades for positive indication that switch is off
- Quick-make, quick break operating mechanism
- Multiple padlock provisions in the OFF position
- Tangential knockouts alleviate the need for offset bends
-
Alternative Part Number8062659
-
UNSPSC39122205
-
IDEA Index ID8062659
-
Standards/ApprovalsRoHS Compliant|UL File No. E2875|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Instruction/Installation Manual
-
Owners/User Manual
