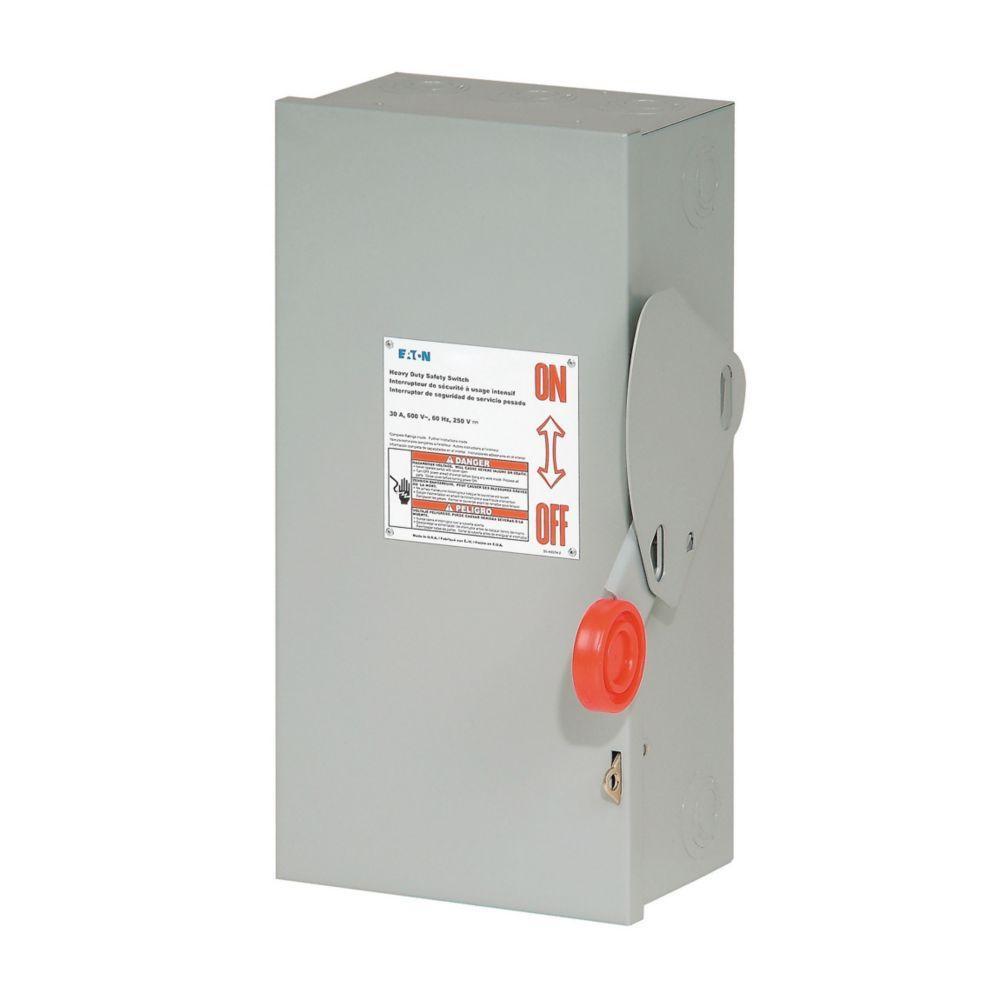

EATON DH322NGK K Series Fusible Heavy Duty Single Throw Safety Switch With Neutral, 240 V AC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, 3PST Contact, 3 Poles
Eatons heavy-duty safety switches provide a highly visible means of disconnect to help improve personnel safety and equipment protection. Additionally, theyre Ideal for applications where reliable performance, safety, and service continuity are critical.
-
BrandEATON
-
UPC782113205823
-
Manufacturer Part NumberDH322NGK
-
CountryUSA
-
FinishPainted
-
MaterialSteel
-
TypeFusible Heavy Duty Single Throw
-
Contact Form3PST
-
Voltage Rating240 V AC
-
Amperage Rating60 A
-
SeriesK Series
-
Horsepower3 hp, 7-1/2 hp, 10 hp, 15 hp
-
Short Circuit Current Rating100 kA
-
Number of Poles3
-
Dimensions16-1/2 in L x 9-1/2 in W x 16 in H
-
Insulation TypeClass H
-
Number of Wires4
-
Enclosure TypeNEMA 1
-
Phase1/3
- Suitable for service entrance applications unless otherwise noted
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- Visible ON/OFF indication
- Features optional viewing window that incorporates visible blade components
- Fusible and non-fusible switches are 100% load break and 100% load make rated
- Complete accessory and renewal parts data shown on inner door label
- Meets stringent UL 98 standards for safety, durability and reliability
- Accepts class h fuses
- 3 hp at 240 VAC standard 1-phase, 7-1/2 hp at 240 VAC standard 3-phase, 10 hp at 240 VAC TD 1-phase, 15 hp at 240 VAC TD 3-phases and 10 hp at 250 VDC maximum hp rating
-
Alternative Part Number7343347
-
UNSPSC39122205
-
IDEA Index ID7343347
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,NEC 230.62 (C) Compliant Barrier
-
Warranty1 year
-
