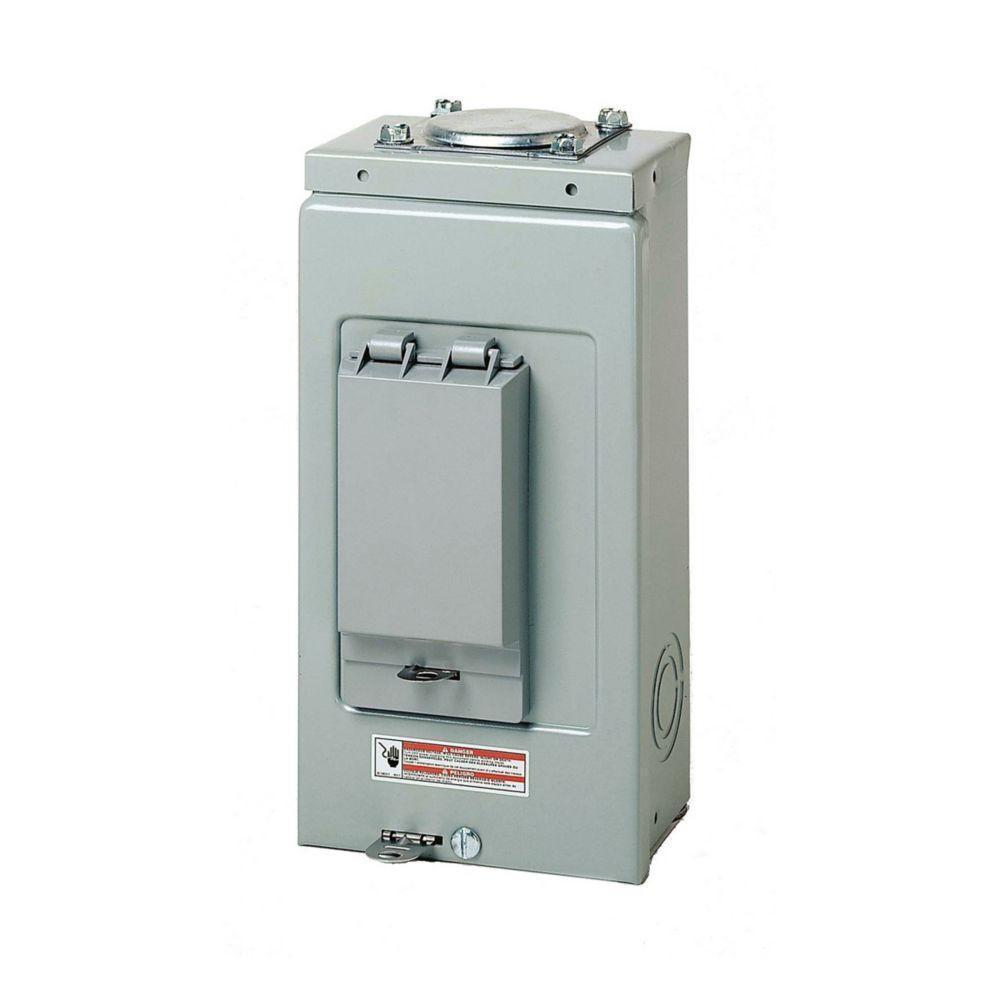

EATON BR24L70RP Main Lug Loadcenter, 120/240 V AC, 70 A, 4 Poles, 10 kA Interrupt

0 Ratings
$36.95
In Stock
SKU: JWH520387
GTIN (EAN,ISBN): 00786676001618
noimage_new

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

In Stock
HCI of Jackson: 2
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    EATON
  • UPC
    786676001618
  • Manufacturer Part Number
    BR24L70RP
  • Country
    USA
Specification
  • Mounting Type
    Surface
  • Voltage Rating
    120/240 V AC
  • Amperage Rating
    70 A
  • Number of Circuits
    4
  • Wire Size
    #8 to 2 AWG
  • Wiring Configuration
    3-Wire
  • Housing Material
    Metal
  • Number of Poles
    4
  • Dimensions
    3.88 in L x 14.31 in W x 23 in H
  • Number of Spaces
    2
  • Interrupt Rating
    10 kA
  • Enclosure Box Size
    NEMA 5R
  • Enclosure Type
    NEMA 3R
  • Breaker Type
    BR
Features
  • Extra 1.5 in knock-out for bundling allows maximum wiring gutter space for ease of wiring
  • Standard 14-3/8 in (365.1 mm) wide enclosures fit snugly between wall studs
  • Twin neutral design located in wireway
  • away from circuit breakers
  • means easier wiring and balancing of the load
  • BR load centers feature Robertson slotted square combo screwheads
  • which means only one screwdriver is need for installation
  • Tangential main knock-out eliminates the need for conduit offsets
  • which permits faster
  • Insulated/bondable split neutral type
  • 1 in maximum space
Additional Information
  • Alternative Part Number
    7431398
  • UNSPSC
    39121101
  • IDEA Index ID
    7431398
  • Package Description
    EACH
  • Standards/Approvals
    UL 50,UL 67
Attachments
Reviews

There are yet no reviews for this product.
