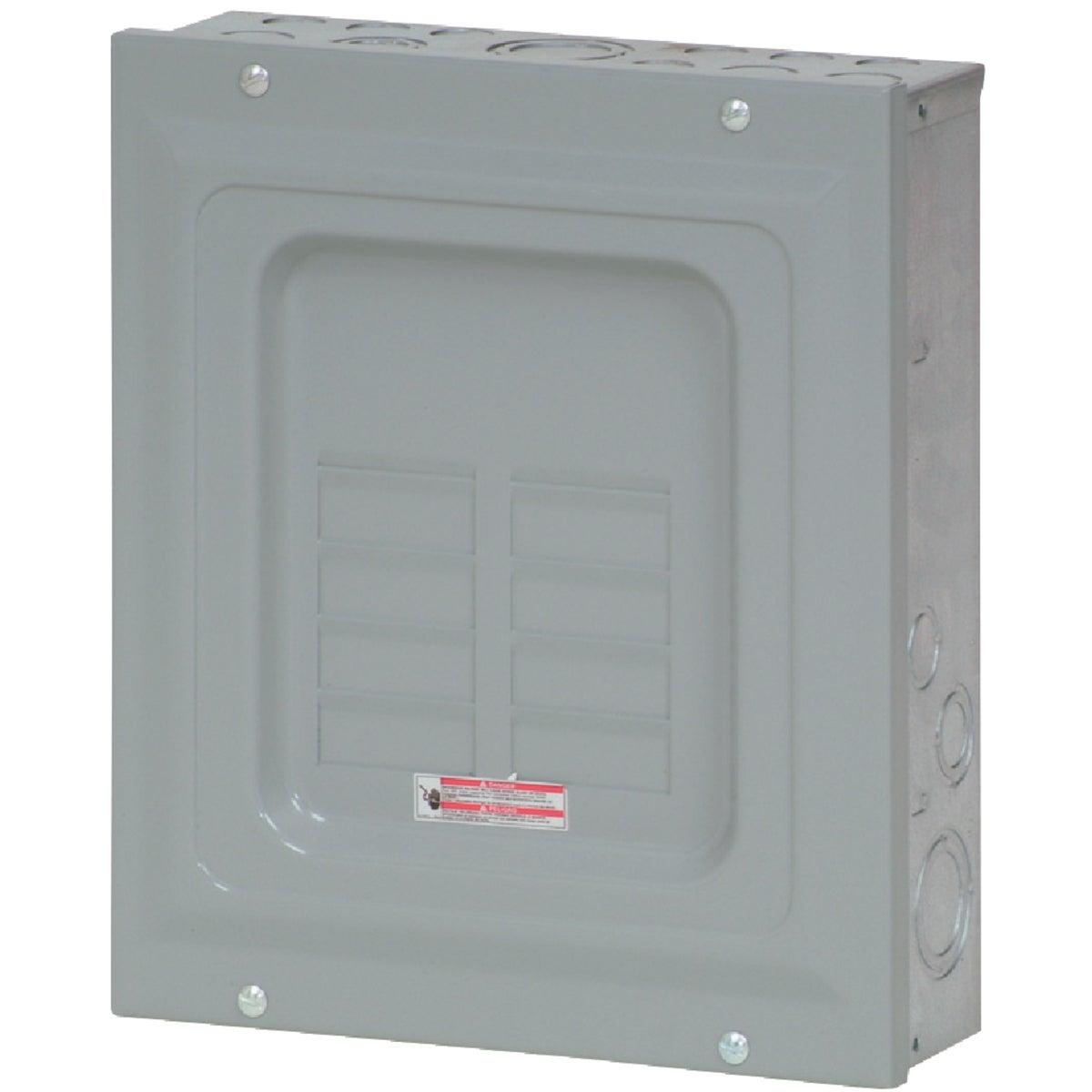

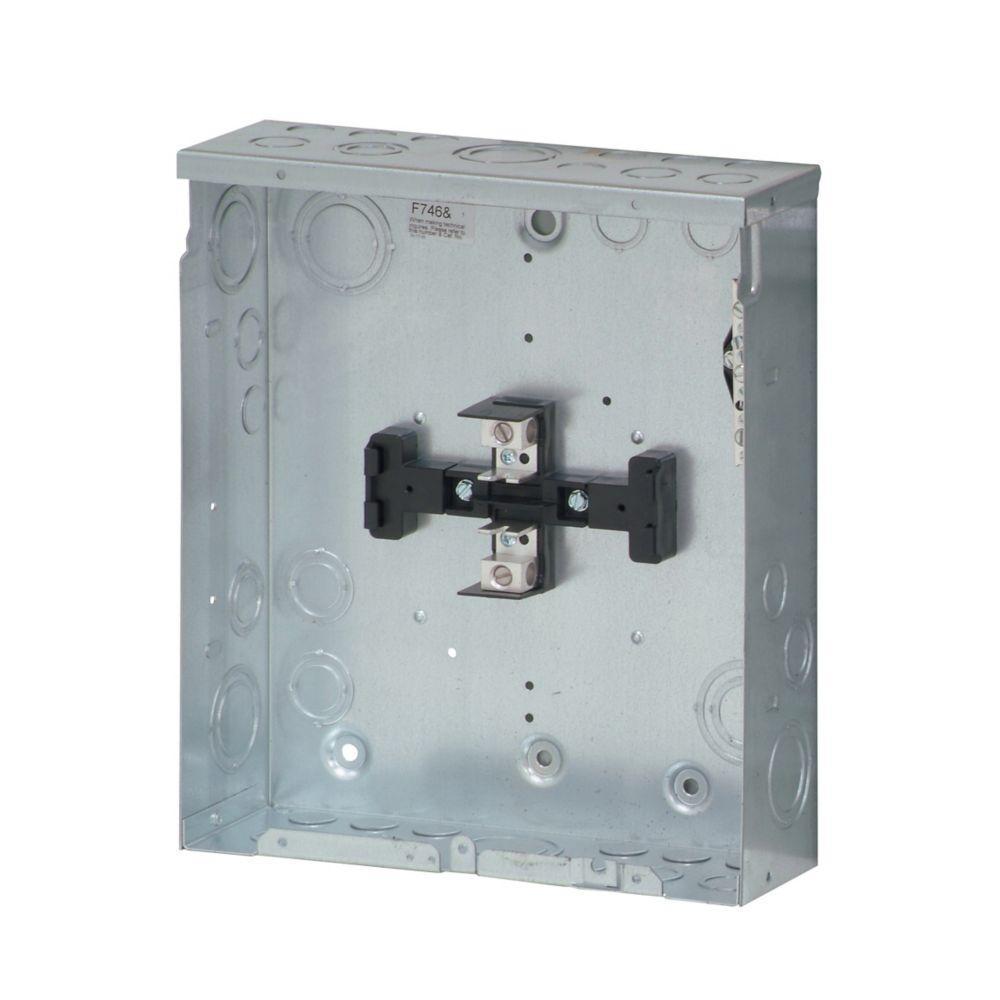

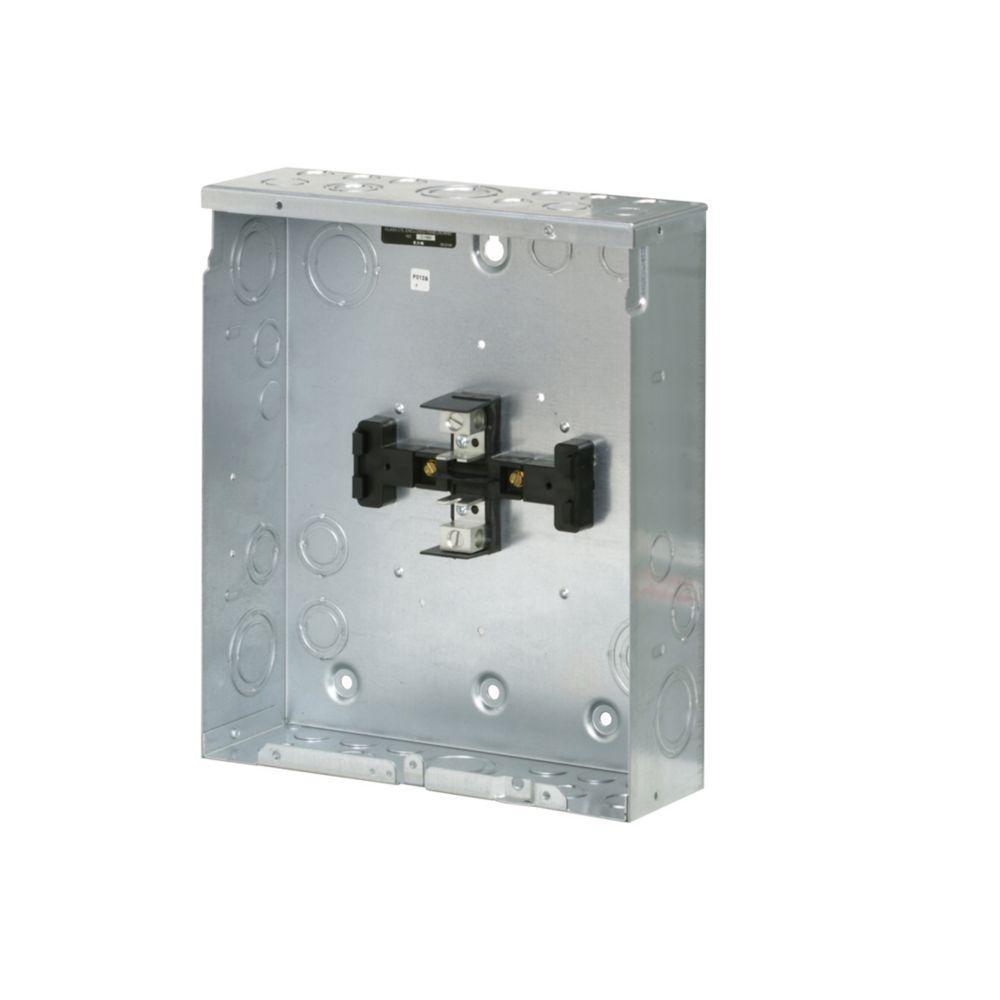

EATON BR48L125SP 1-Phase Main Lug Loadcenter, 120/240 V AC, 125 A, 8 Poles, 10 kA Interrupt
Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676001236
-
Manufacturer Part NumberBR48L125SP
-
CountryUSA
-
Type1-Phase
-
Mounting TypeSurface
-
Voltage Rating120/240 V AC
-
Amperage Rating125 A
-
Number of Circuits8
-
Wire Size14 to 1/0 AWG
-
Wiring Configuration3-Wire
-
Housing MaterialMetal
-
Number of Poles8
-
Dimensions3.56 in L x 11 in W x 4.1 in H
-
Number of Spaces4
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA 7
-
Enclosure TypeNEMA 1
-
Breaker TypeBR
- Current design
- Aluminum bus material
- Single-phase
- Used with type BR 1 in breakers
- Ground bar kits priced separately
- For 2/4 circuit load centers, use GBK5 or GBK520 ground bar
- Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit load centers
- Suitable for use as service equipment when not more than six service disconnecting mains are provided
- Insulated/bondable split neutral type
- 1 in maximum space
- Cover not included
-
Alternative Part Number7431331
-
UNSPSC39121101
-
IDEA Index ID7431331
-
Package DescriptionEACH
-
Standards/ApprovalsUL 67,UL 50
-
