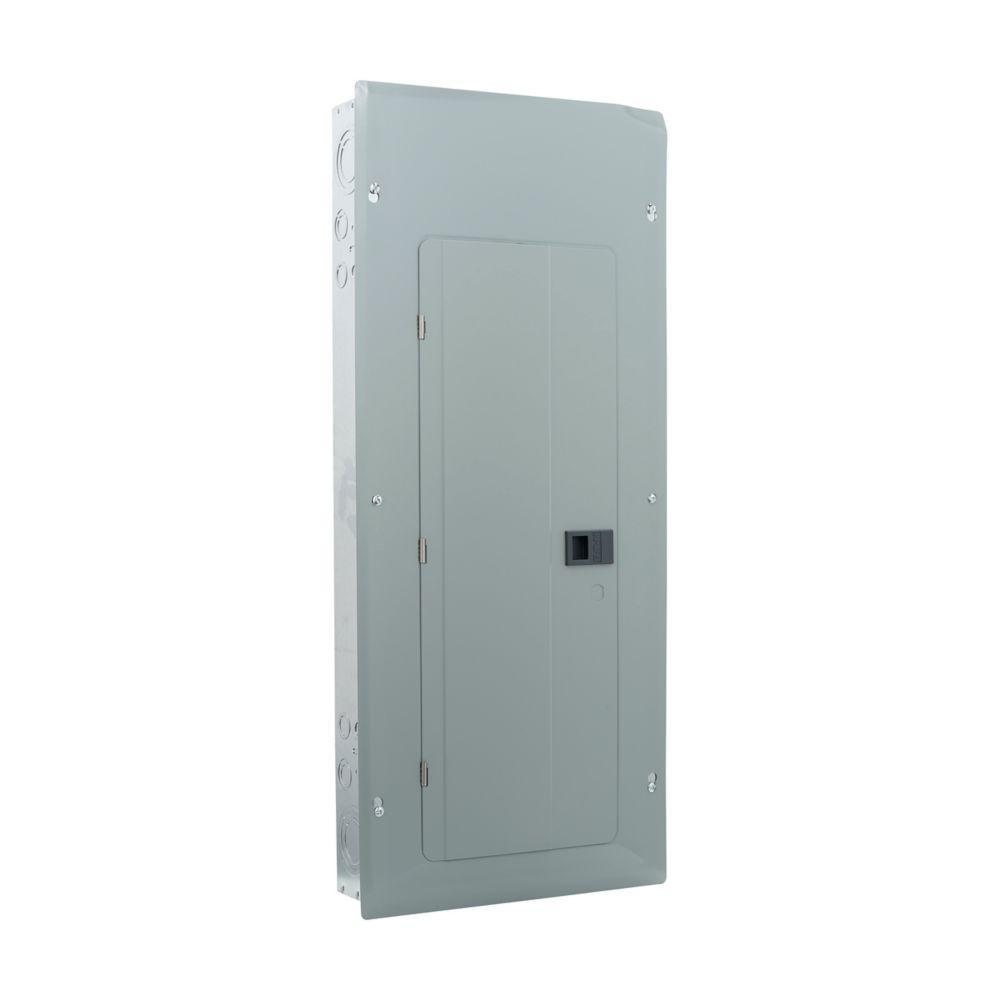

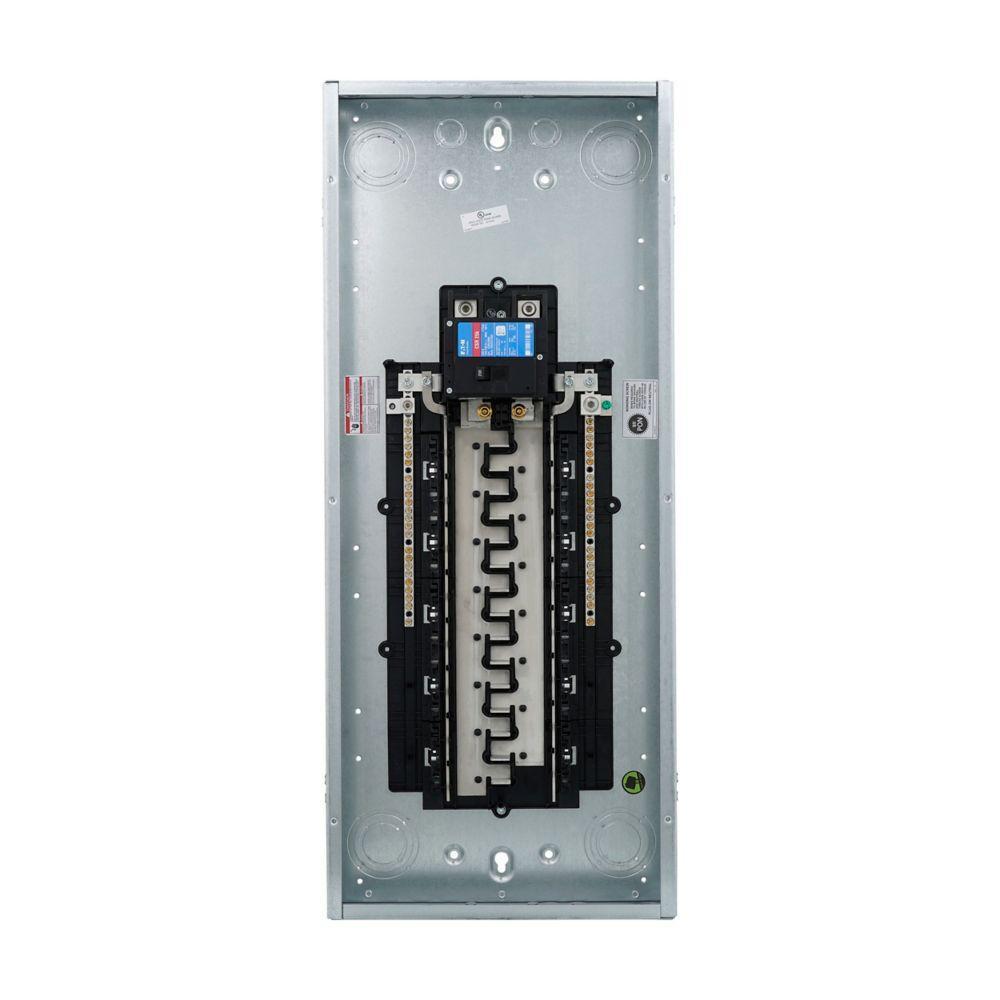

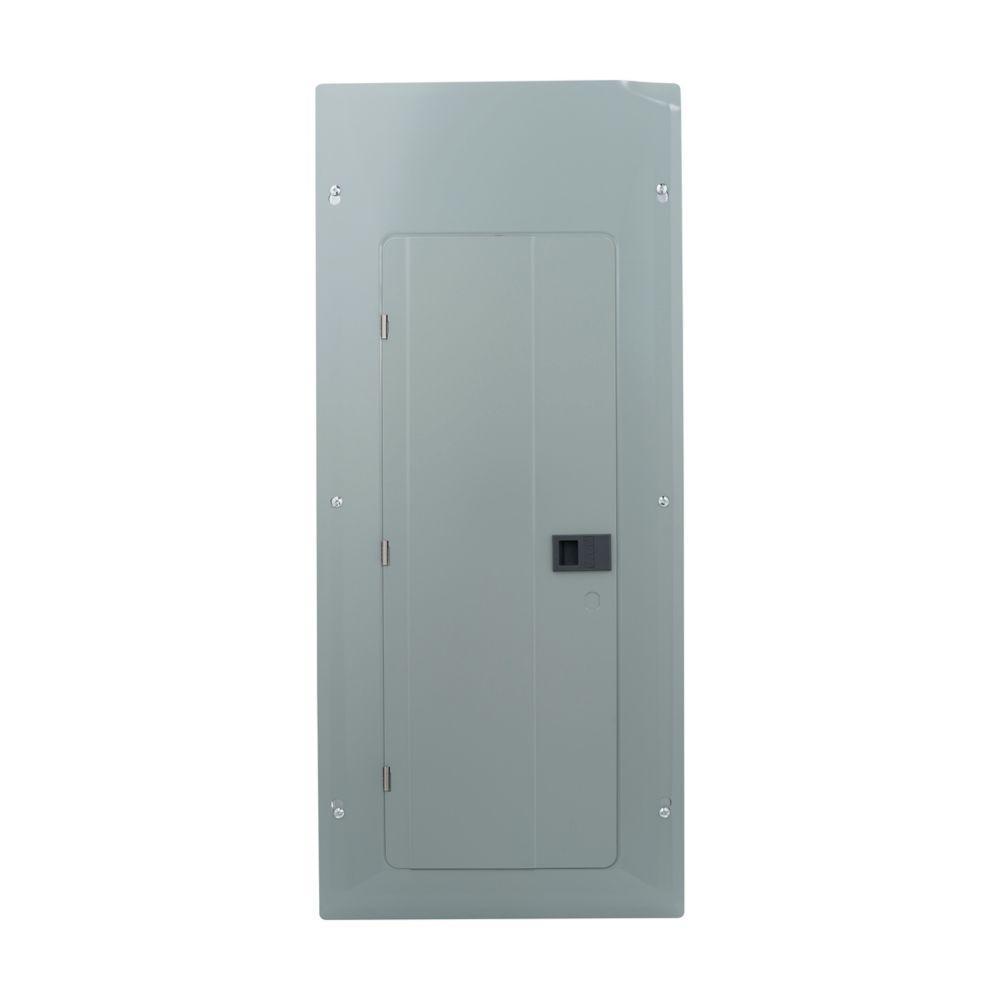

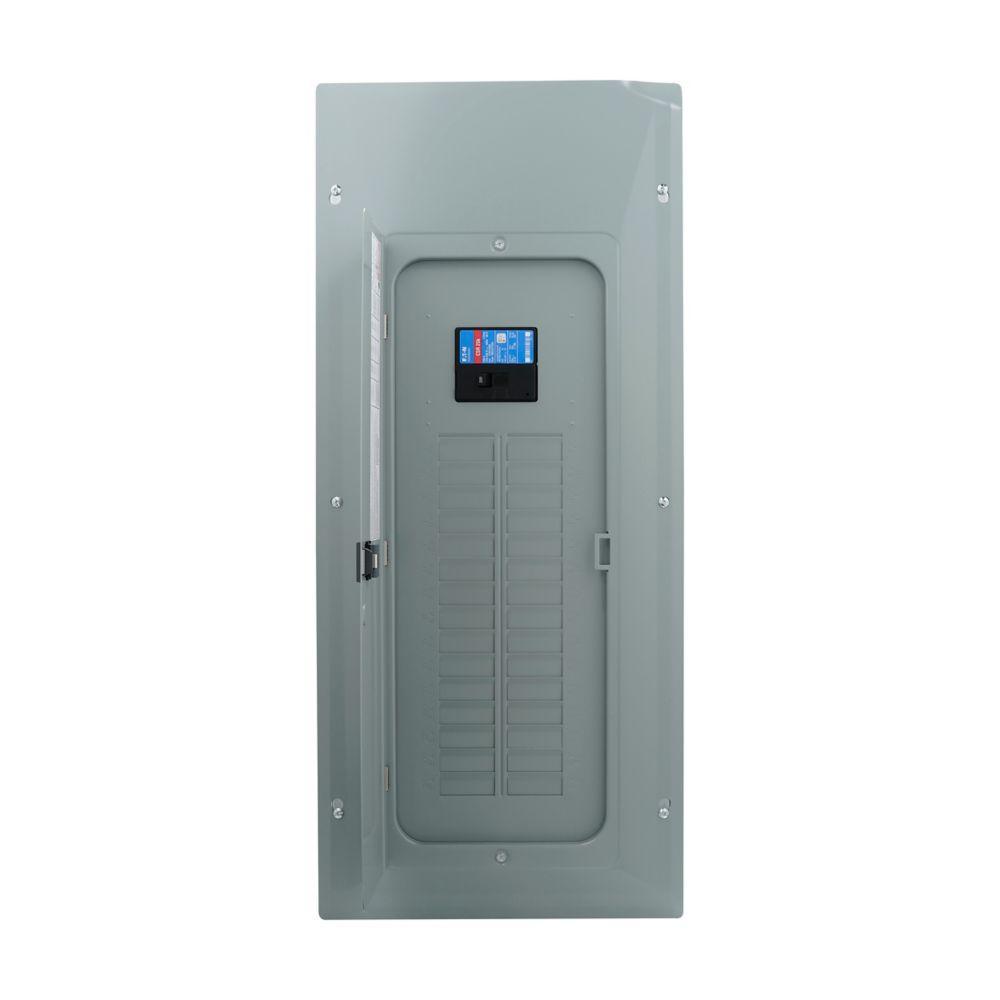

EATON BRP30B200 1-Phase Main Breaker Load Center, 120/240 V AC, 200 A, 1 Poles, 25 kA Interrupt
Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786689044060
-
Manufacturer Part NumberBRP30B200
-
CountryUSA
-
Type1-Phase
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating200 A
-
Number of Circuits30
-
Wire Size2 AWG to 300 kcmil
-
Wiring Configuration3-Wire
-
Housing MaterialGalvanized Steel
-
Number of Poles1
-
Dimensions34.12 in L x 14.31 in W x 3.88 in H
-
Number of Spaces30
-
Interrupt Rating25 kA
-
Enclosure Box SizeX6
-
Enclosure TypeNEMA 1
-
Breaker TypeBR/CSR
- Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
- Straight-in wiring saves labor and material
- One panel for either top or bottom applications
- 2/0 AWG lug, easily removable and can be installed in any location on the neutral bar
- Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
- Standard Tin-plated aluminum bus for excellent conductivity and corrosion-resistance
- Tangential center knockout - easier installation for conduit applications
- Commercial grade main breaker, 25 kA series rated main breaker for superior protection
- Neutral bus, easily removable for sub-panel applications
- Bonding Z-strap, provides easy field conversion for service entrance applications
- Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
- 2 AWG to 300 kcmil copper/aluminum wire
- Ground bar
-
Alternative Part Number14270879
-
UNSPSC39121101
-
IDEA Index ID14270879
-
Package DescriptionEACH
-
Standards/ApprovalsUL 50,UL 67
-
Warranty10 years
-
Specification Sheet
-
Owners/User Manual
