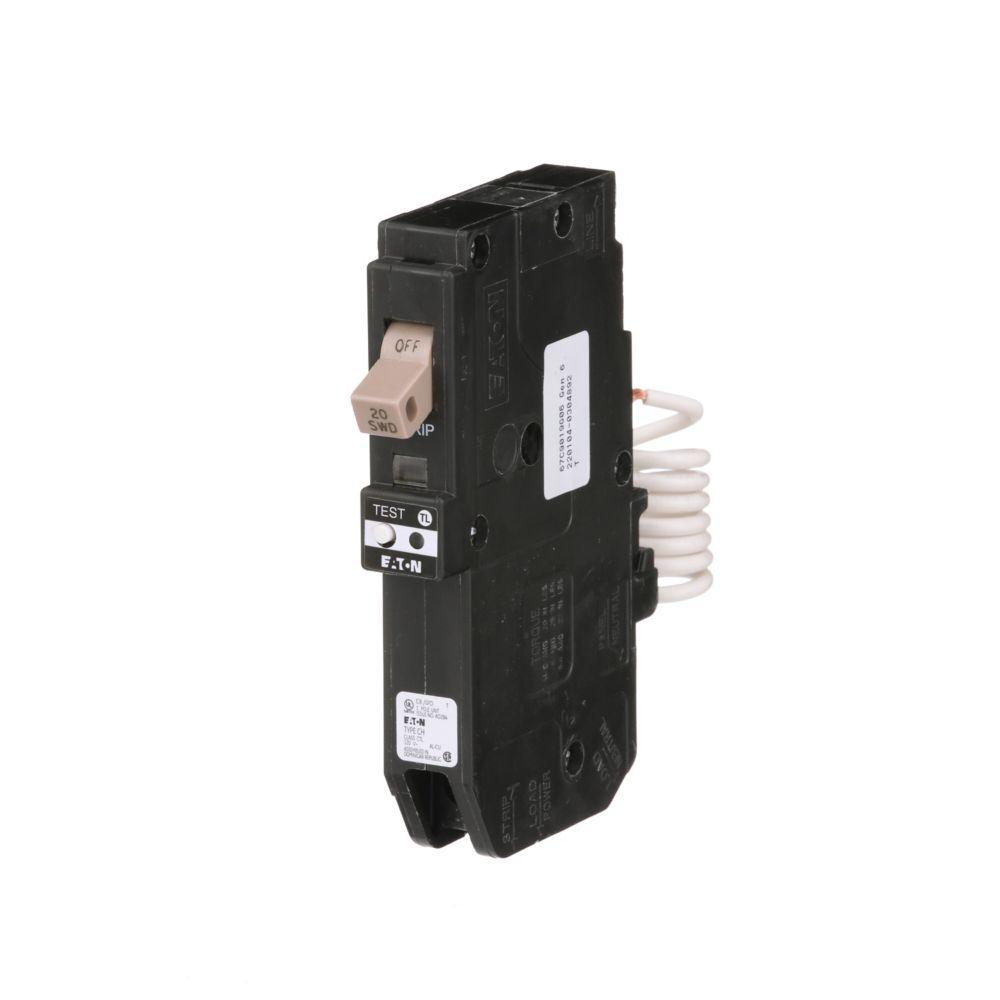

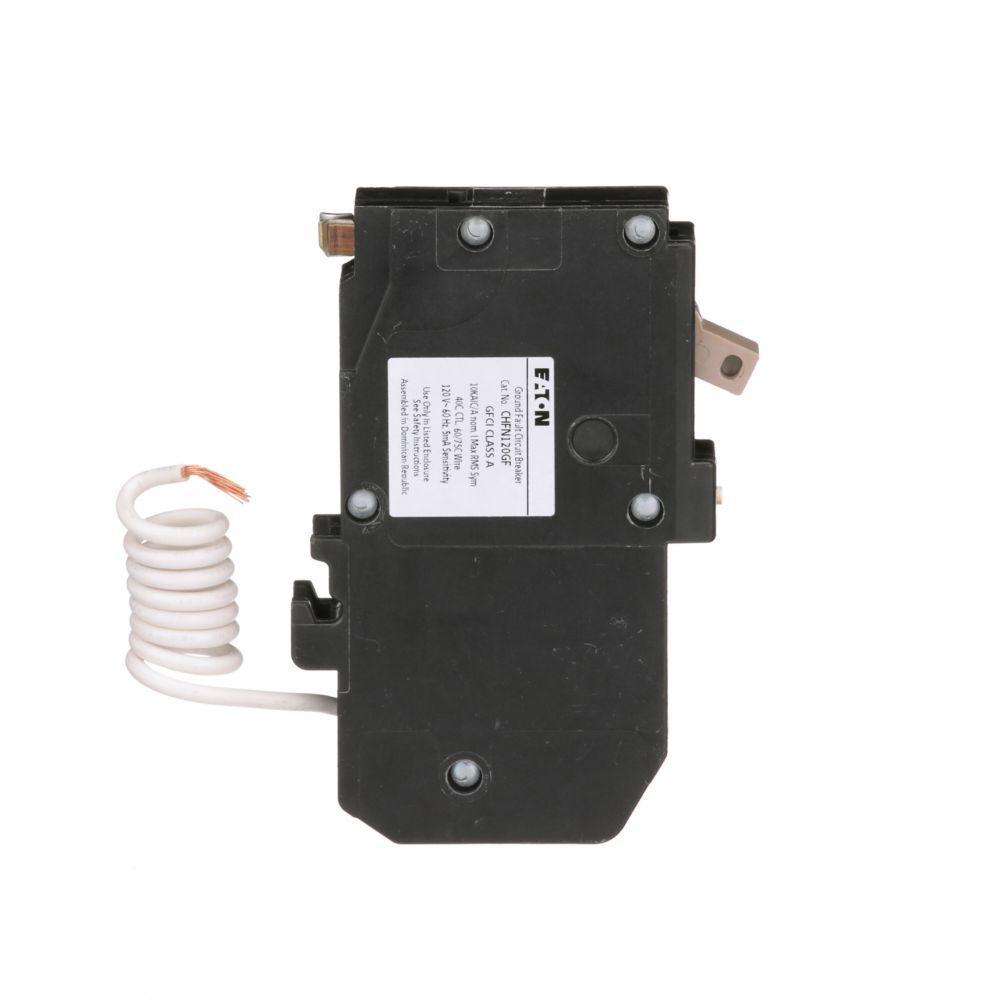

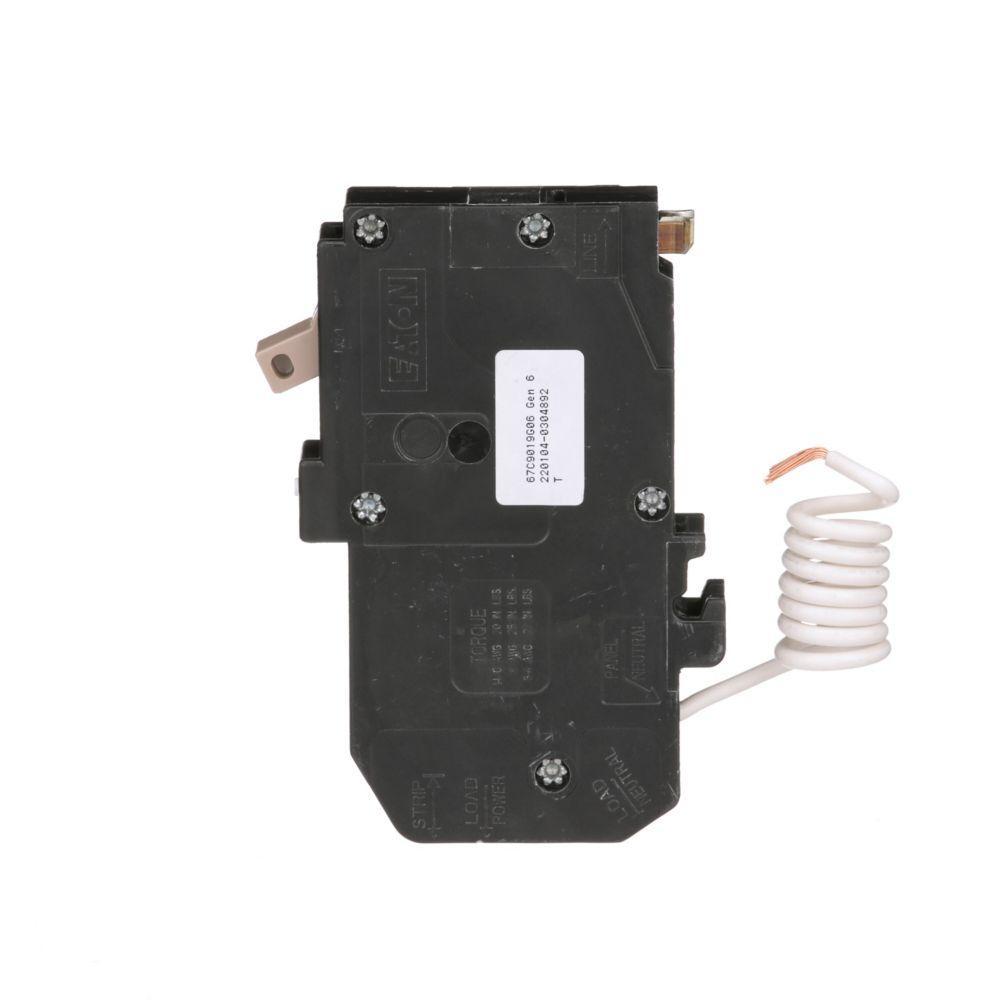

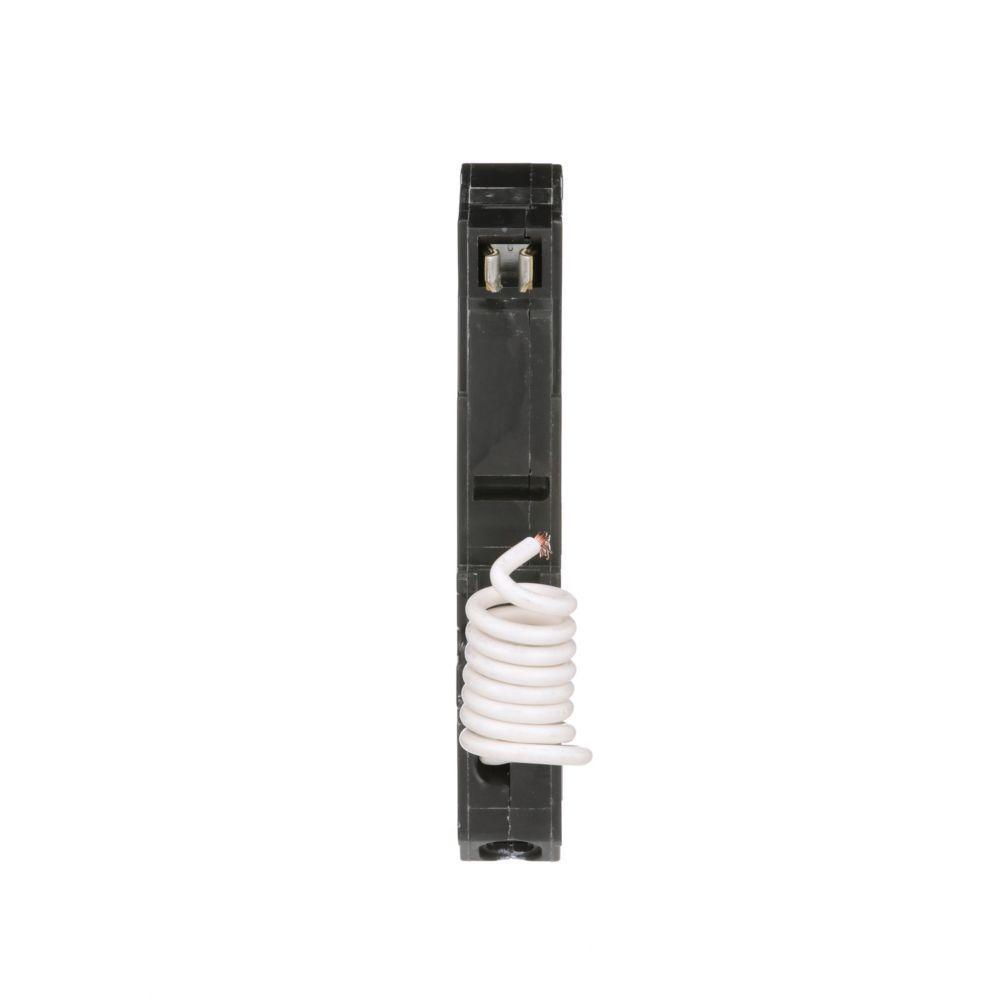

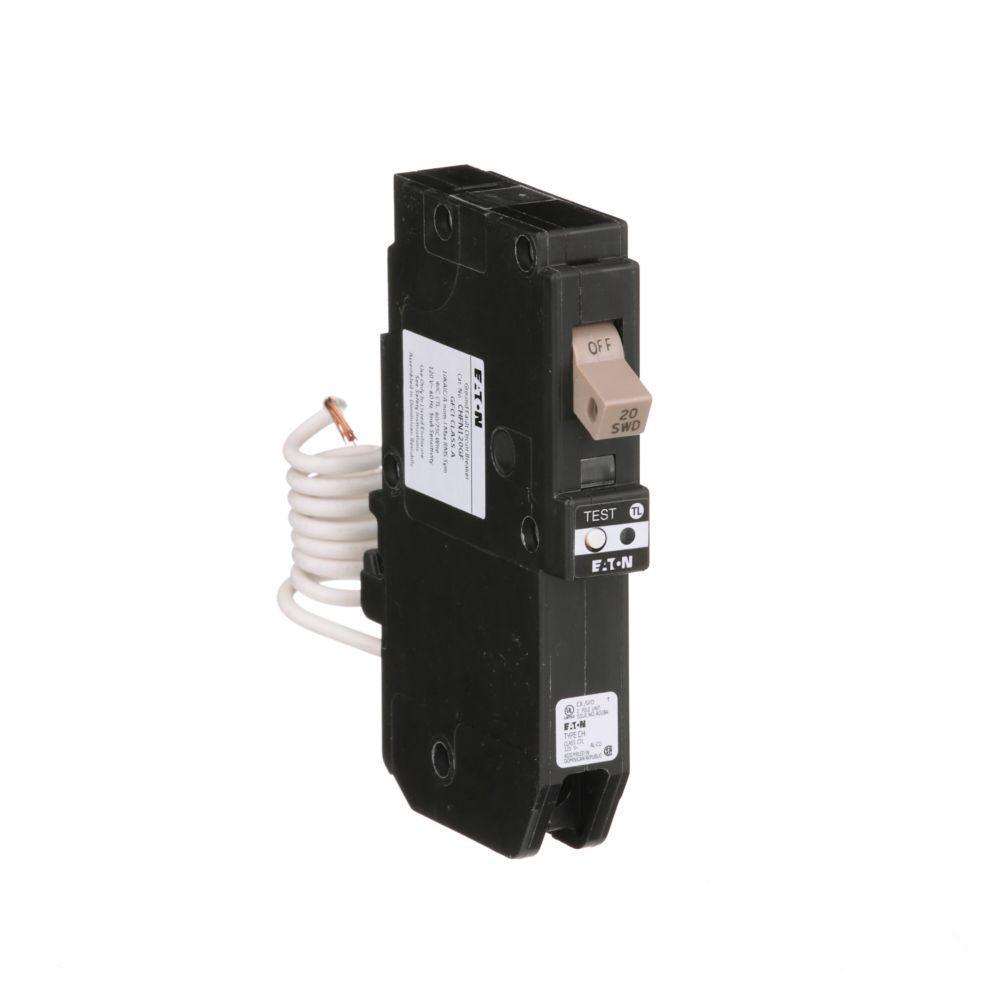

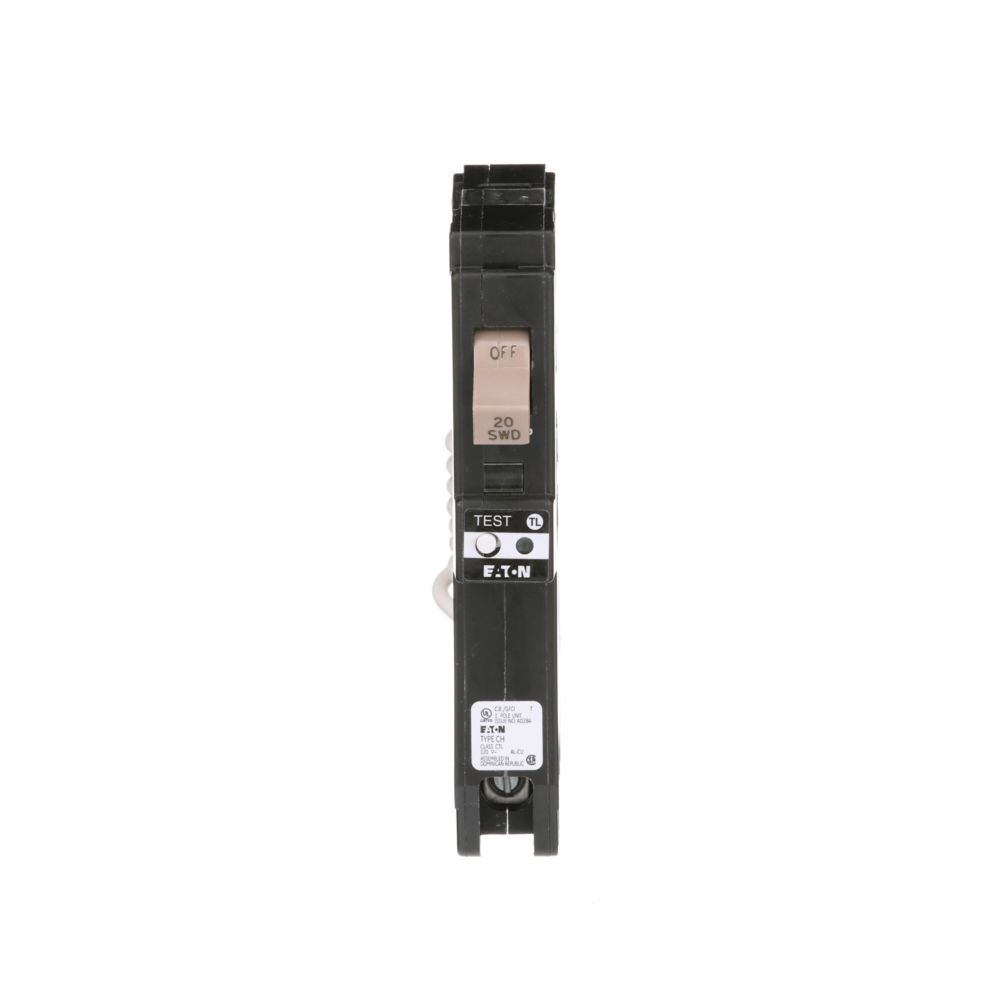

EATON CHFN120GF Type CH Self-Test Ground Fault Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC786689058876
-
Manufacturer Part NumberCHFN120GF
-
CountryUSA
-
TypeType CH Self-Test
-
Connection TypePigtail Neutral
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Wire Size14 to 6 AWG
-
Number of Poles1
-
Dimensions4-1/2 in L x 3/4 in W x 3-1/4 in H
-
Interrupt Rating10 kA
-
Alternative Part Number14285099
-
UNSPSC39121603
-
IDEA Index ID14285099
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Specification Sheet
-
Owners/User Manual
