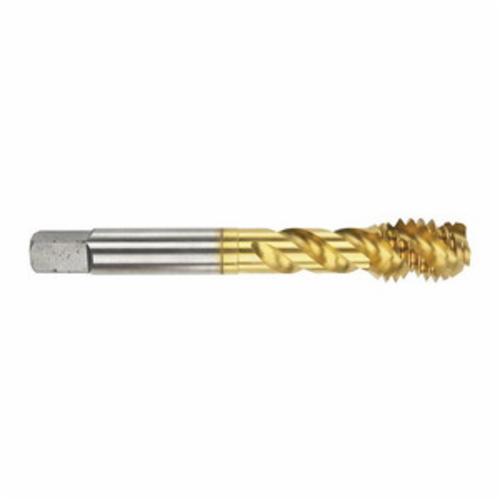

MORSE C/Tool 3/8"-24 3-FL TIN SEMI-BOTTOM TAP MCT 94477
ShearTap™ offers exceptional value for high volume tapping. The geometry is optimized for long-chipping steels and stainless steels up to a hardness of 35Rc. Made with premium high speed steel with an enhanced flute design, the ShearTap™ offer great chip management, cutting edge strength and wear resistance, resulting in a high quality threads.
-
BrandShearTap™
-
UPC686125944773
-
Manufacturer Part Number94477
-
CountryUSA
-
Finish/CoatingTiN Coated
-
Thread Length0.551 in
-
MaterialHSS
-
Thread LimitH4
-
Material ApplicationSteels and Stainless Steels
-
Thread Size3/8-24
-
Thread StandardUNF
-
Chamfer TypeSemi-Bottoming
-
Class of FitH4
-
Measurement SystemImperial
-
TypeOversized
-
Series2091G
-
Number of Flutes3
-
Cutting DirectionRight Hand
-
Overall Length2-15/16 in
- TiN coating increases hardness and lubricity for improved thread quality, higher speeds and longer tool life
- CNC reduced neck design
- The spiral flutes draw the chips out of the hole
- Semi-bottoming style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over a greater number of teeth
-
UNSPSC23241615
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
