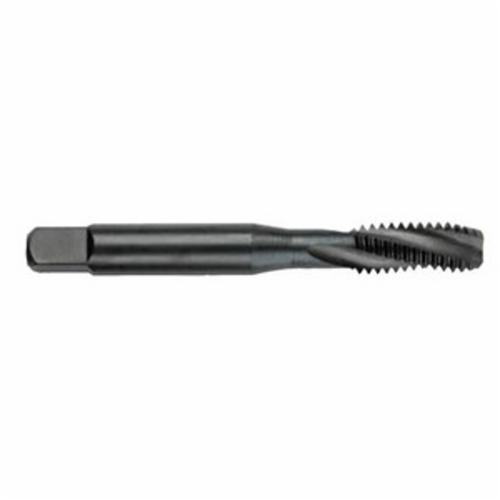

MORSE® 61086 2098C High Performance Spiral Flute Tap, #10-24 Thread, H3 Thread Limit, Semi-Bottoming Chamfer, 3 Flutes, TiCN Coated, HSS-PM
MORSE® 61086 2098C High Performance Spiral Flute Tap, #10-24 Thread, H3 Thread Limit, Semi-Bottoming Chamfer, 3 Flutes, TiCN Coated, HSS-PM
-
BrandMORSE®
-
UPC686125610869
-
Manufacturer Part Number61086
-
CountryUSA
-
Finish/CoatingTiCN Coated
-
Thread Length1/2 in
-
MaterialHSS-PM
-
Thread LimitH3
-
Material ApplicationSteel Alloys, Titanium Alloys, Nickel Base High Temp Alloys, Tool and Mold Steel and Stainless Steel
-
Thread Size#10-24
-
Thread StandardUNC
-
Chamfer TypeSemi-Bottoming
-
Class of FitH3
-
Measurement SystemImperial
-
TypeHigh Performance
-
Series2098C
-
Number of Flutes3
-
Overall Length2-3/8 in
- CNC reduced neck design
- The spiral flutes draw the chips out of the hole
- Semi-bottoming style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over a greater number of teeth
- Powder metallurgy high speed steel premium steel engineered for hardness, wear resistance, tool, heat resistance, toughness and strength, performance under difficult cutting conditions, higher cutting speeds, increased productivity
- Titanium carbonitride coating increases wear resistance, reduces friction and galling, reduces tapping torque, improves thread quality and allows increased cutting speeds for greatly increased productivity and tool life
-
UNSPSC23241615
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
