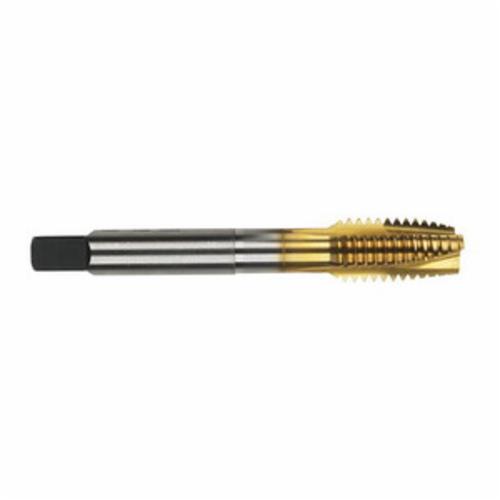

MORSE C/Tool 1/4"-20 3-SPIRAL-FL TIN BOTTOM TAP MCT 94601
ShearTap™ offers exceptional value for high volume tapping. The geometry is optimized for long-chipping steels and stainless steels up to a hardness of 35Rc. Made with premium high speed steel with an enhanced flute design, the ShearTap™ offer great chip management, cutting edge strength and wear resistance, resulting in a high quality threads.
-
BrandShearTap™
-
UPC686125946012
-
Manufacturer Part Number94601
-
CountryUSA
-
Finish/CoatingTiN Coated
-
Thread Length0.43 in
-
MaterialHSS
-
Thread LimitH11
-
Material ApplicationSteels and Stainless Steels
-
Thread Size1/4-20
-
Thread StandardUNC
-
Chamfer TypeSemi-Bottoming
-
Class of FitH11
-
Measurement SystemImperial
-
TypeOversized
-
Series2091G
-
Number of Flutes3
-
Cutting DirectionRight Hand
-
Overall Length2-1/2 in
- TiN coating increases hardness and lubricity for improved thread quality, higher speeds and longer tool life
- Primarily designed for tapping through holes
- The spiral flutes draw the chips out of the hole
- CNC reduced neck design
- Oversize taps are mainly used for parts that will be plated or heat treated after tapping
- Also used in materials that tend to shrink after tapping
- Semi-bottoming style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over a greater number of teeth
-
UNSPSC23241615
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
-
