MORSE C/Tool 1/2"-13 USS SPIRAL-FLUTE HSS TAPS MCT 30625

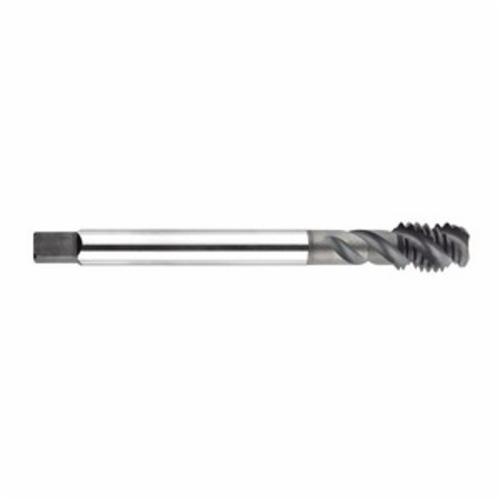

MORSE® 30625 2089 High Performance Spiral Flute Tap, Right Hand Cutting, 1/2-13 Thread, H3 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Black Steam Oxide, HSS-PM
-
BrandMORSE®
-
UPC686125306250
-
Manufacturer Part Number30625
-
CountryUSA
-
Finish/CoatingBlack Steam Oxide
-
Thread Length0.63 in
-
MaterialHSS-PM
-
Thread LimitH3
-
Material ApplicationSteels, Steel Alloys, Stainless Steels and Titanium Alloys
-
Thread Size1/2-13
-
Thread StandardUNC
-
Chamfer TypeSemi-Bottoming
-
Class of FitH3
-
Measurement SystemImperial
-
TypeHigh Performance
-
Series2089
-
Number of Flutes3
-
Cutting DirectionRight Hand
-
Overall Length4.331 in
- CNC reduced neck design
- The spiral flutes draw the chips out of the hole in blind hole tapping
- Powder metallurgy high speed steel premium steel engineered for performance under difficult cutting conditions
- Semi-bottoming style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over a greater number of teeth
-
UNSPSC23241615
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified|DIN Rated
