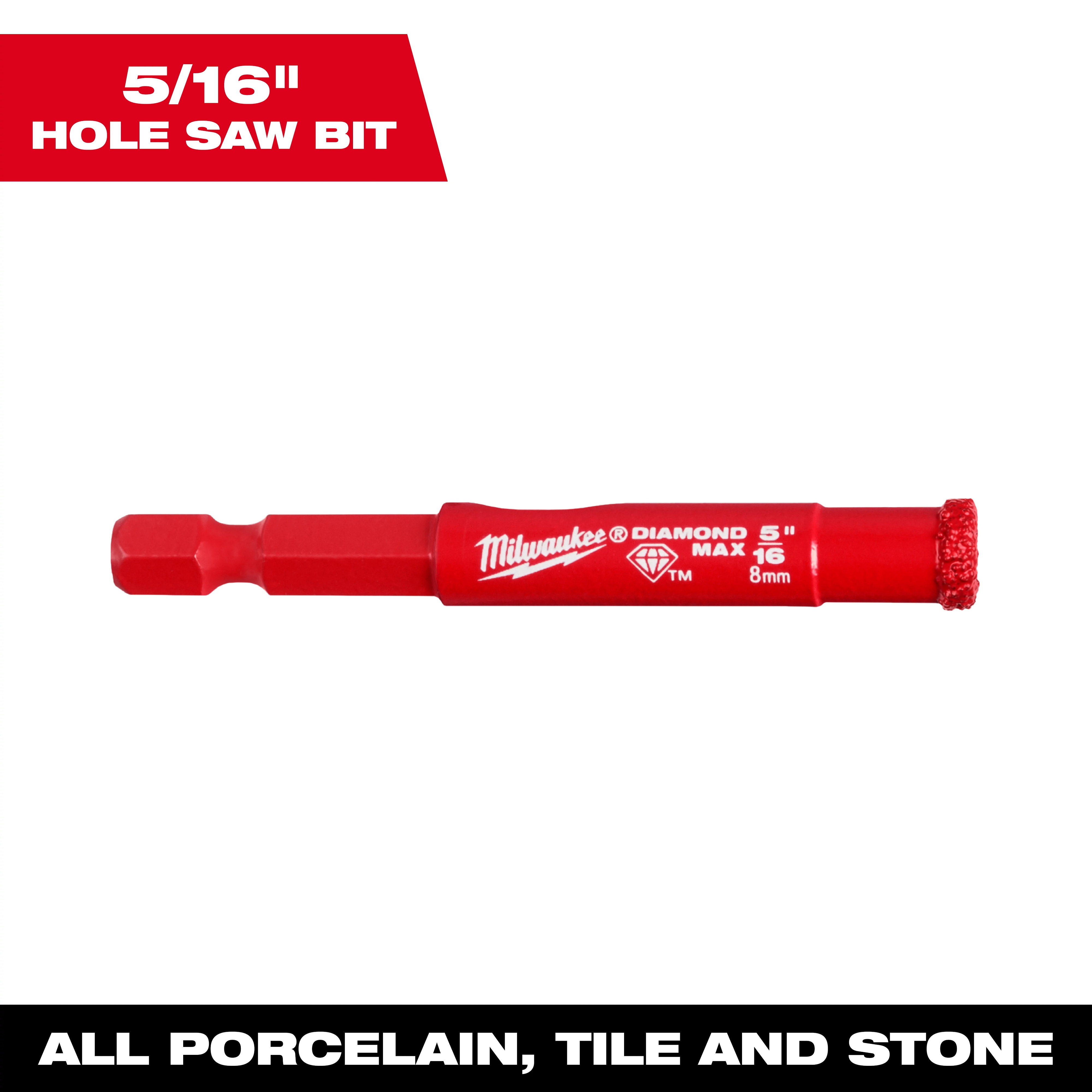

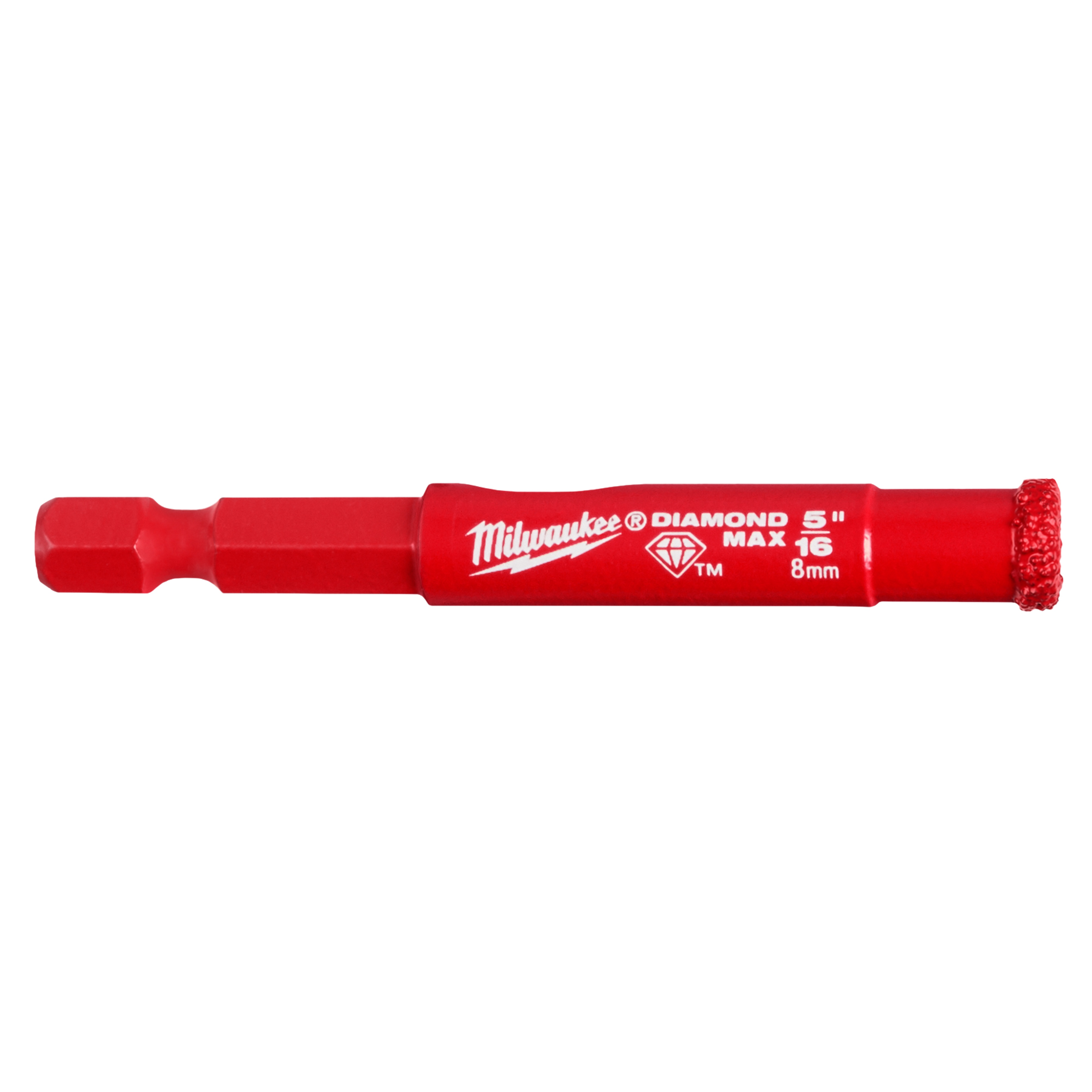

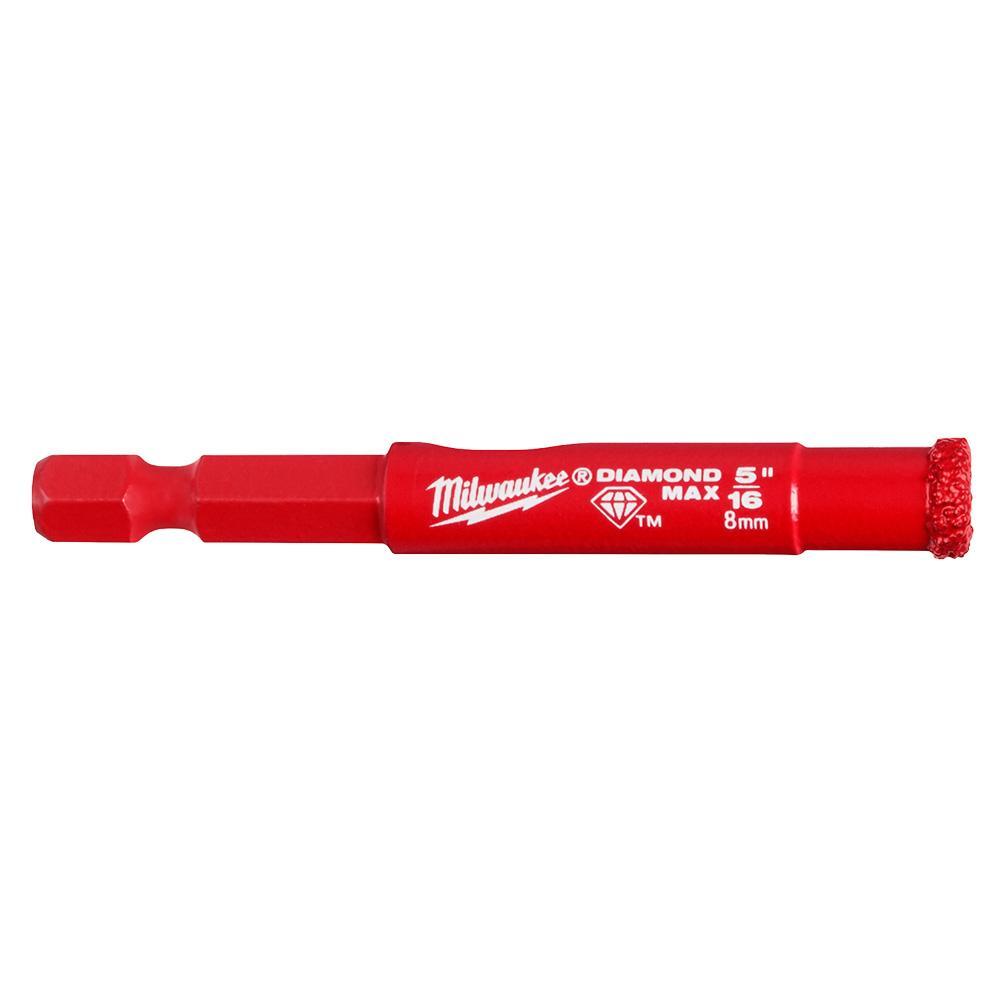

Milwaukee® Diamond Plus™ 49-56-0507 1-Piece Continuous Grit Edge Diamond Hole Saw, 5/16 in Dia, 5/16 in D Cutting, Diamond Cutting Edge
The MILWAUKEE® Diamond Max™ 5/16" Hole Saw Bit delivers up to 20X longer life with unmatched cuts in porcelain. Diamond Max™ Hole Saws offer best-in-class performance with higher-grade diamonds and superior retention. Features Maximum wear resistance to tackle the most demanding applications. The improved diamond grit delivers faster cutting and quickly grips into material for clean, easy cuts. Designed for more cutting with less clogging.
-
BrandMilwaukee®
-
UPC045242223756
-
Manufacturer Part Number49-56-0507
-
CountryUSA|Canada
-
Chuck Size1/4 in
-
ColorRed
-
Type1-Piece Continuous Grit Edge Diamond
-

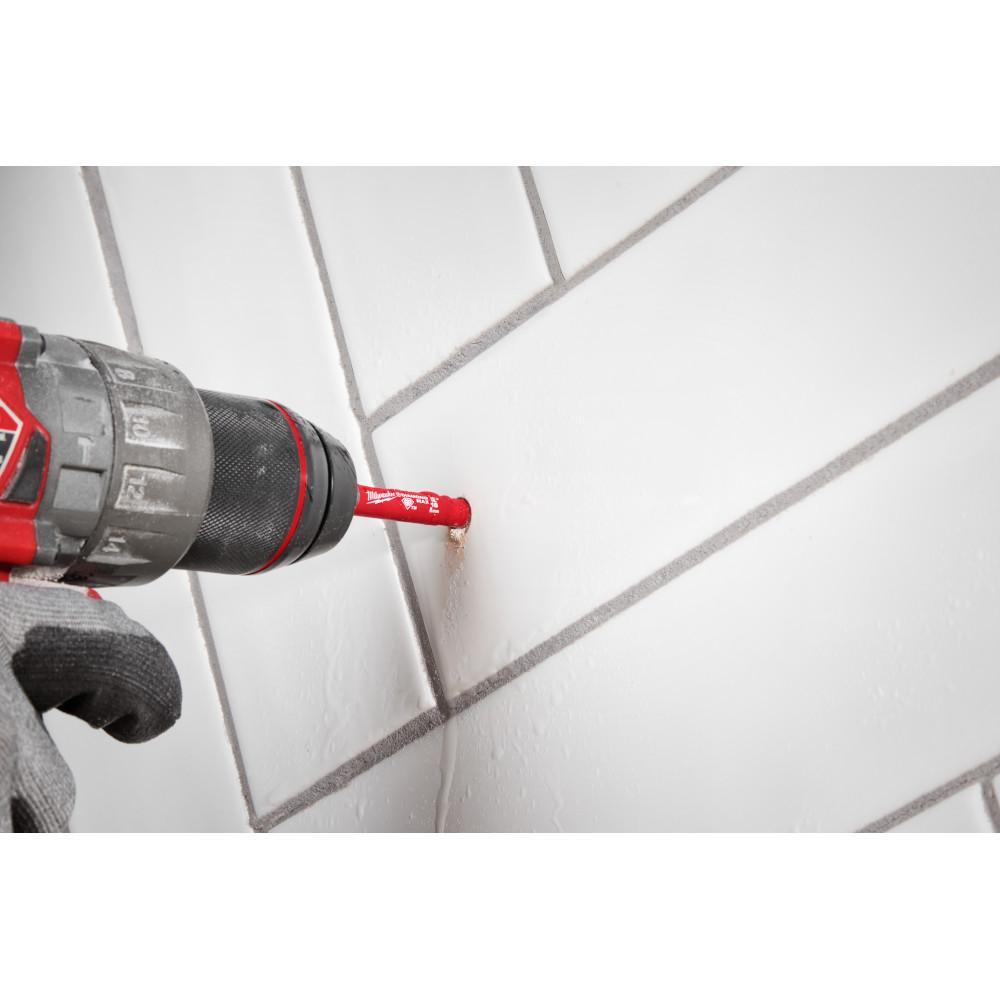

Applicable MaterialsFiber Cement Board, Fiberglass, Glass, Granite, Stone and Tile
-
Cutting Depth5/16 in
-
Shank Size1/4 in
-
Cutting Edge MaterialDiamond
-
Shank TypeHex/Quick-Change
-
Diameter5/16 in
-
Body MaterialDiamond Coated
-
Overall Length2-1/8 in
- Maximum diamond durability and retention

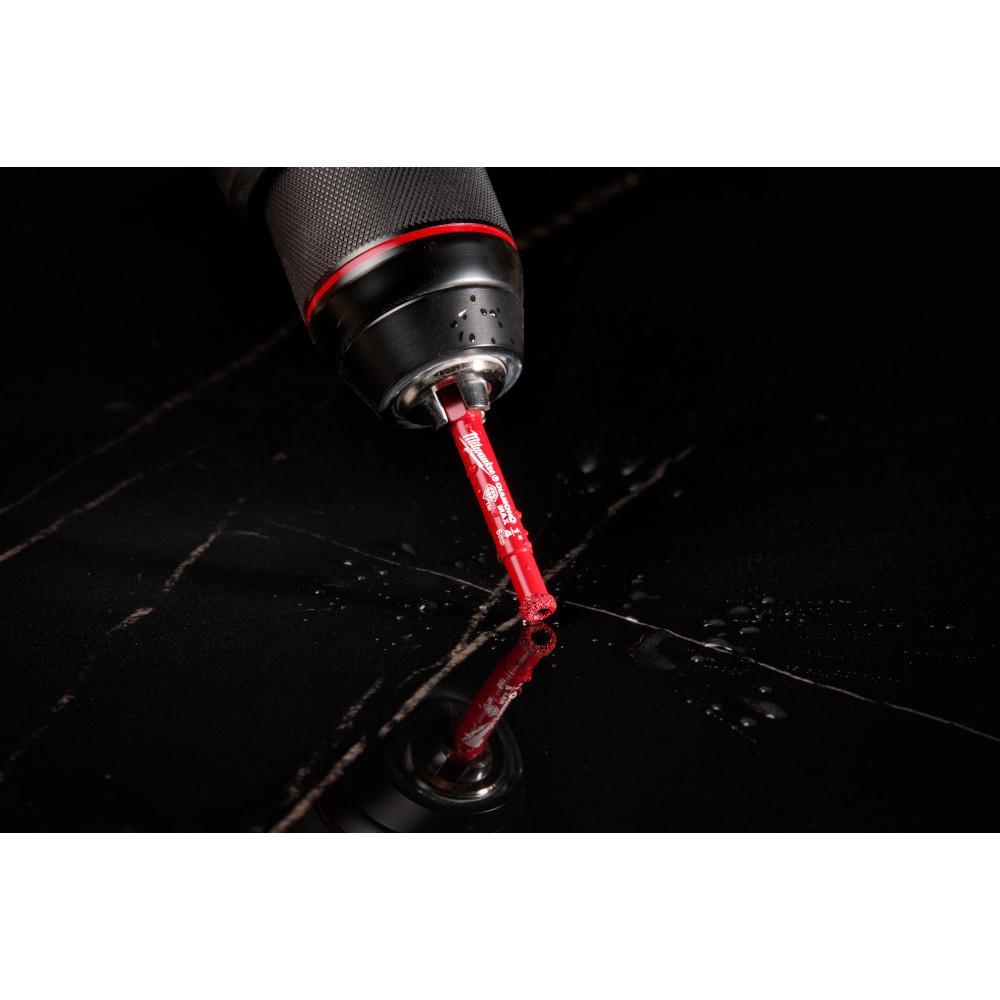

- Fastest cutting in porcelain
- Faster starts and less slipping
- More cutting, less clogging
- Dip bit in water before each cut
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 33UH26 |
| MSC | 42867820 |
| Fastenal | 2115782 |
-
Alternative Part Number13927965
-
UNSPSC27112826
-
IDEA Index ID13927965
-
Package DescriptionEACH
-
WarrantyNo Warranty
