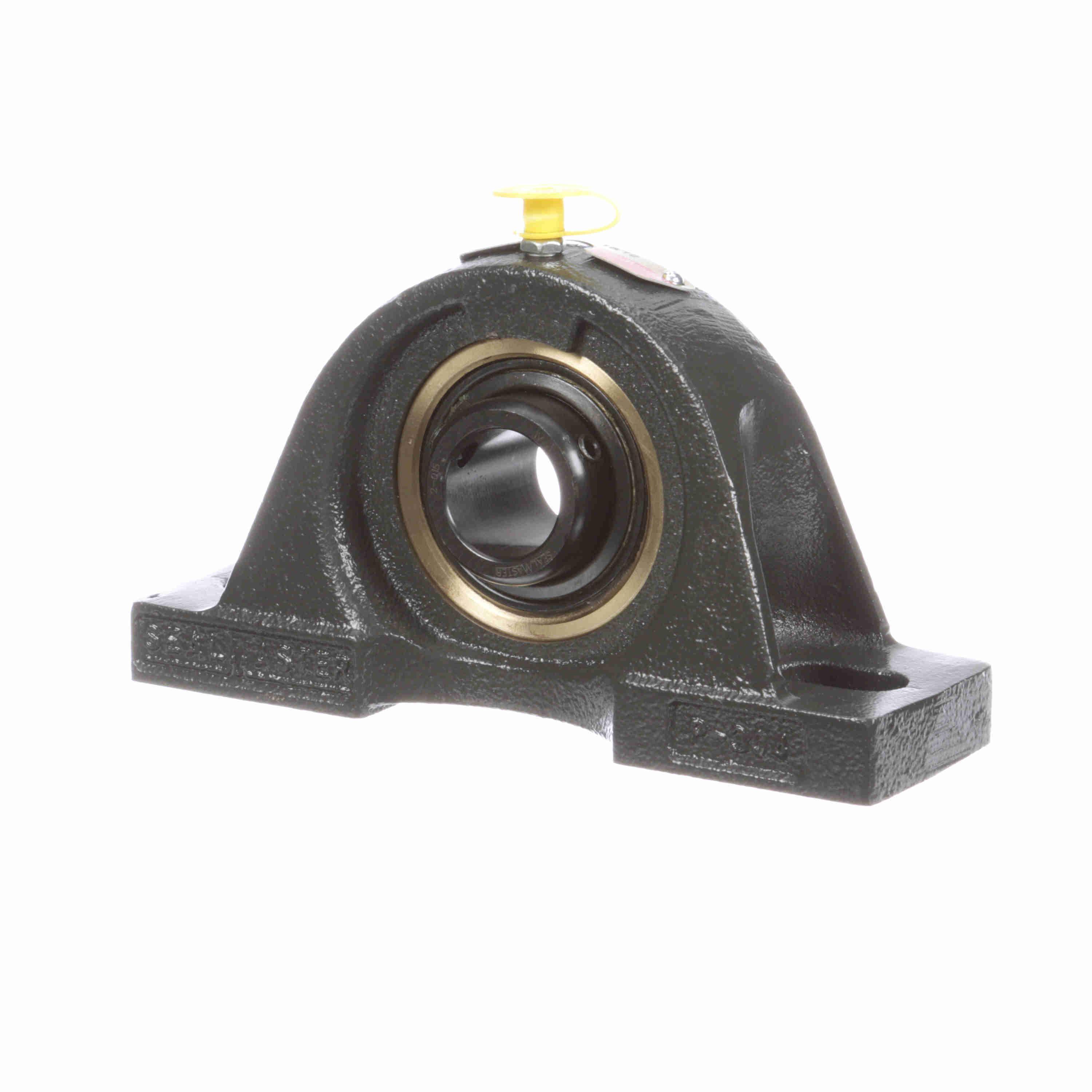

Sealmaster® 701876 MP Series Medium Duty Pillow Block Ball Bearing Unit, 2-7/16 in Dia Bore, 7-1/8 to 8-7/8 in L Bolt Center-to-Center, 3 in Base to Bore Centerline, 11-1/4 in OAL x 6-1/4 in OAH
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461013885
-
Manufacturer Part Number701876
-
CountryUSA
-
Load Capacity13971 lb Dynamic
-
Locking DeviceSet Screw
-
Temperature Rating250 deg F
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed2500 rpm
-
TypeMedium Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeFelt
-
SeriesMP Series
-
Base Width2-1/4 in
-
Base to Bore Centerline3 in
-
Bolt Center-to-Center Length7-1/8 to 8-7/8 in
-
Bore Diameter2-7/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height6-1/4 in
-
Overall Length11-1/4 in
-
Overall Width2-3/4 in
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- High temperature synthetic grease
- Alemite fitting lubrication
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 44A331 |
-
Alternative Part NumberMP-39
-
UNSPSC31171504
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
