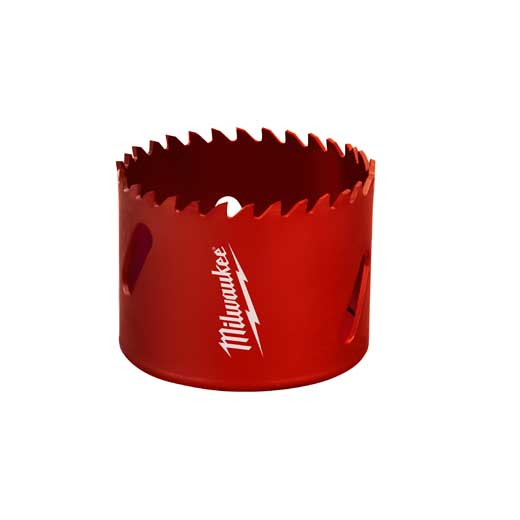

Milwaukee 3-5/8" CARBIDE-TIP HOLESAWS MWK 49-56-3623

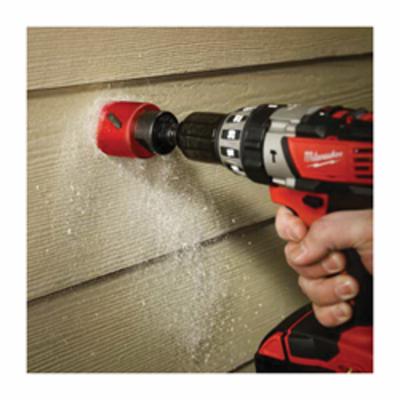

Milwaukee® carbide tipped hole saws provide long life and faster cutting in cement board, ceramic tiles, fiberglass and wood products such as fiberboard, flake board and plywood. Use a carbide tipped pilot bit (49-56-8005) when cutting ceramic tile, brick and other abrasive materials.
-
BrandMilwaukee®
-
UPC045242199082
-
Manufacturer Part Number49-56-3623
-
CountryUSA|Canada
-
Chuck Size1/4 in
-
ColorRed
-
TypeStraight Pitch
-
Use Arbor49-56-7240, 49-56-7250, 49-56-9100, 49-56-7055 and 49-56-7040 Quick-Change Arbor
-
Applicable MaterialsCement Board, Ceramic Tiles, Fiberglass, Fiberboard, Flakeboard and Plywood
-
Series49-56
-
Cutting Depth1-5/8 in
-
Shank Size1/4 in
-
Cutting Edge MaterialTungsten Carbide
-
Cutting Edge StyleTipped
-
Shank Type3-Flat
-
Diameter3-5/8 in
-
Speed105/370/160 rpm
-
Drill Size1/4 in Dia x 4 in L
-
Body MaterialTungsten Carbide
-
Overall Length1-1/2 in
-
TPI or Pitch4 TPI
- Tungsten carbide grit edge for abrasive materials
- Coarse grit and segmented edge for fast cutting
- Wide, angled and offset slots for easy plug access
- 105 rpm brick and ceramic tile, 370 rpm fiberglass, 160 rpm phenolic
-
UNSPSC27112826
-
Package Description1/PK
