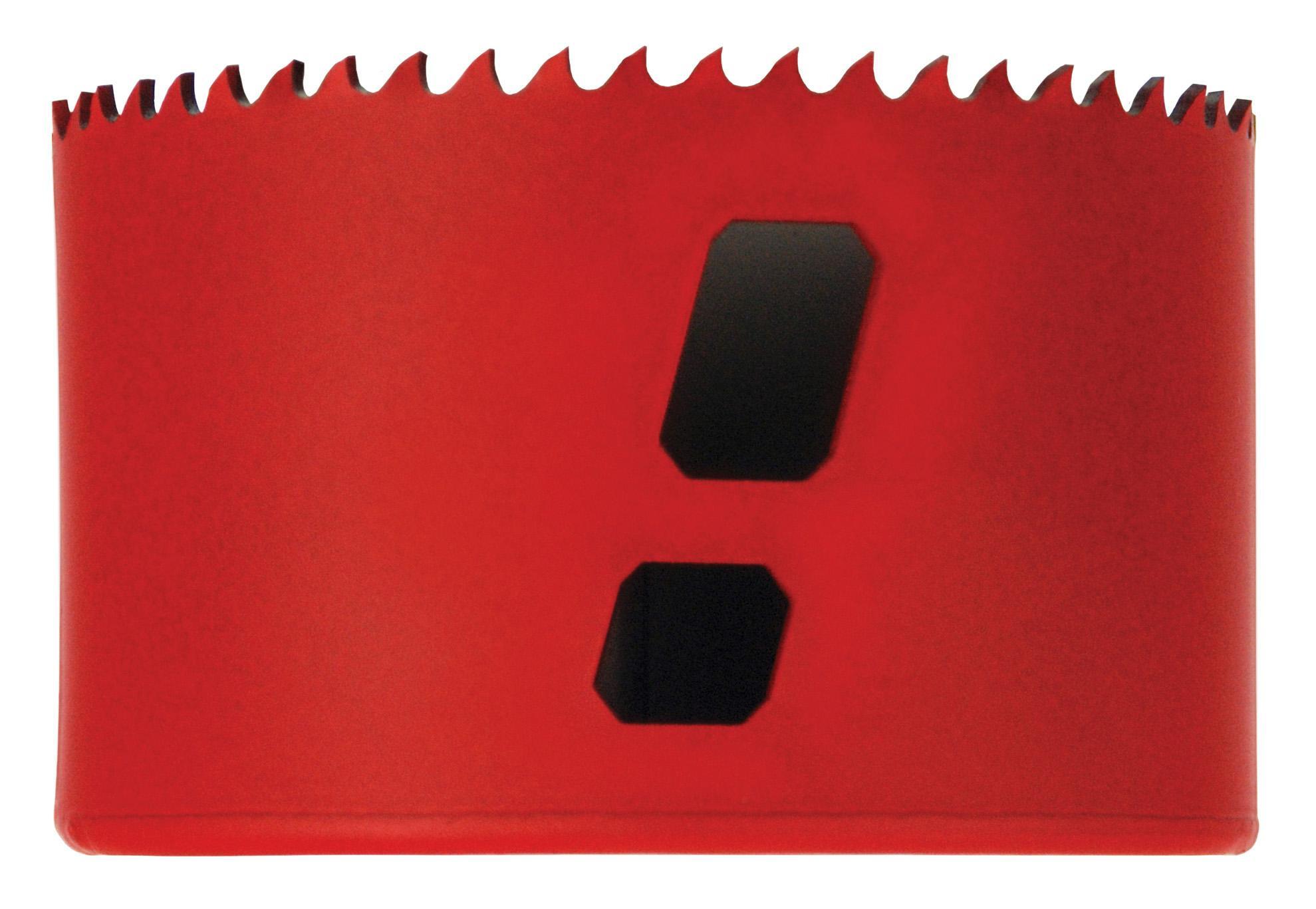

Morse® 177504 MHS Advanced Hole Saw, 3-1/8 in Dia, 1-15/16 in D Cutting, M42 HSS-Co 8 Cutting Edge, 5/8-18 Arbor
Morse, MHS50 (177504), 3-1/8" (79mm) diameter, bimetal hole saw is designed for general purpose use, cutting a wide range of materials including stainless steel, machinable metals, wood and plastic. Aggressive, positive rake tooth profile penetrates material easier and faster. Unique side slot increases leaverage access for various thicknesses of materials, easing slug removal. One (1) hole saw per box. Seperate arbor required, use MA35PSN (139052) or MA45PSN (139069). To optimize performance consider using Morse CUTLUBE (121408).
-
BrandMorse®
-
UPC050326177504
-
Manufacturer Part Number177504
-
CountryUSA|Canada
-
Chuck Size1/2 in
-
ColorRed
-
TypeAdvanced
-
Use ArborMA45PS
-
Applicable MaterialsMachinable Metal, Nail Embedded Wood, Plastic, Stainless Steel Alloy and Wood
-
Arbor Size5/8-18
-
SeriesMHS
-
Cutting Depth1-15/16 in
-
Shank Size7/16 in
-
Cutting Edge MaterialM42 HSS-Co 8
-
Cutting Edge StyleToothed
-
Shank TypeHex
-
Diameter3-1/8 in
-
Speed55 to 165 rpm
-
Drill Size1/4 in Dia x 3-3/32 in L
-
Body MaterialBi-Metal
-
TPI or Pitch5/6 TPI
- Bimetal cutting edge for heat and wear resistance
- Patented tooth set assists in slug removal
- Positive tooth rake penetrates quickly and cuts faster
- Solid cap construction reducing vibration, cutting faster
- New Side Slot - Increased leverage for faster, easier slug removal
- New exterior red coating - reduces side wall friction for efficient cutting
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | FZ50177504 |
-
Alternative Part NumberMHS50
-
UNSPSC27112826
-
Package DescriptionEACH
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
-
Catalog
