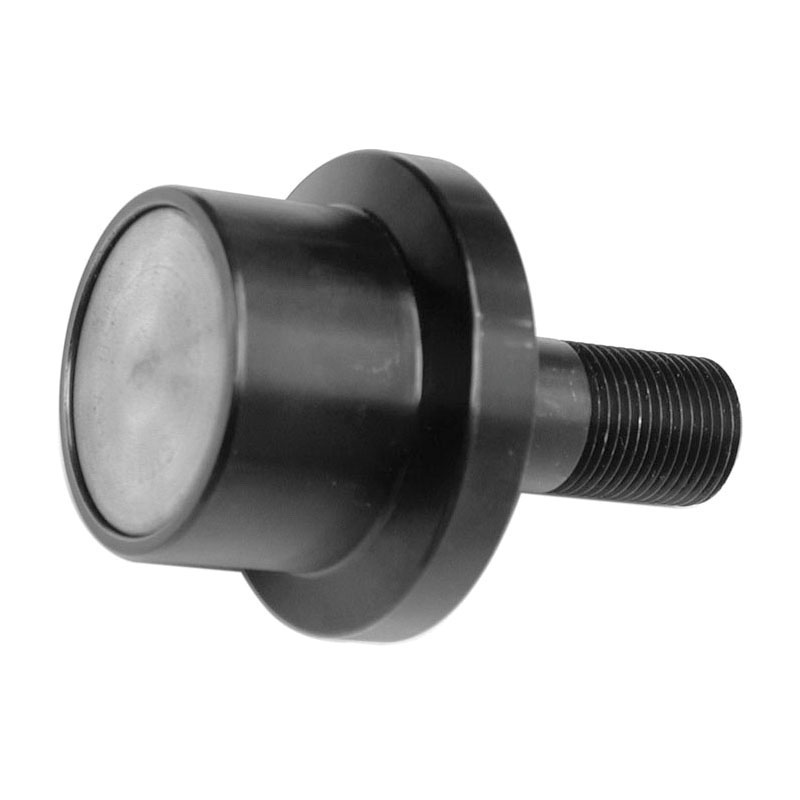

Smith Bearing® SMITH-TRAX® FCR-1-1/2 Heavy Duty Stud Type Deep Groove Ball Bearing Track Roller, 1-1/2 in Dia Roller, 1-3/16 in W Roller, 2-3/16 in Dia Flange, 5/8 in Dia Stud, 1-1/2 in L Stud
FCR Series bearings are designed to handle both axial and radial loads by using tapered roller bearings or deep groove ball bearings. These bearings should be used when standard needle roller bearings are not sufficient to handle the thrust load found in certain applications.
-
BrandSmith Bearing®
-
UPC651041149212
-
Manufacturer Part NumberFCR-1-1/2
-
CountryUSA
-
Load Capacity1370 lb Static
-
Thread Length3/4 in
-
Thread Size5/8-18 UNF-2A
-
Flange Diameter2-3/16 in
-
Flange Thickness11/32 in
-
TypeHeavy Duty Stud Type
-
Roller Diameter1-1/2 in
-
Roller MaterialAlloy Steel
-
Roller Width1-3/16 in
-
SeriesFCR
-
Stud Diameter5/8 in
-
Stud Length1-1/2 in
-
Stud MaterialAlloy Steel
-
Stud TypeFlanged
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 15U564 |
-
UNSPSC31171541
-
Warranty12 months
-
