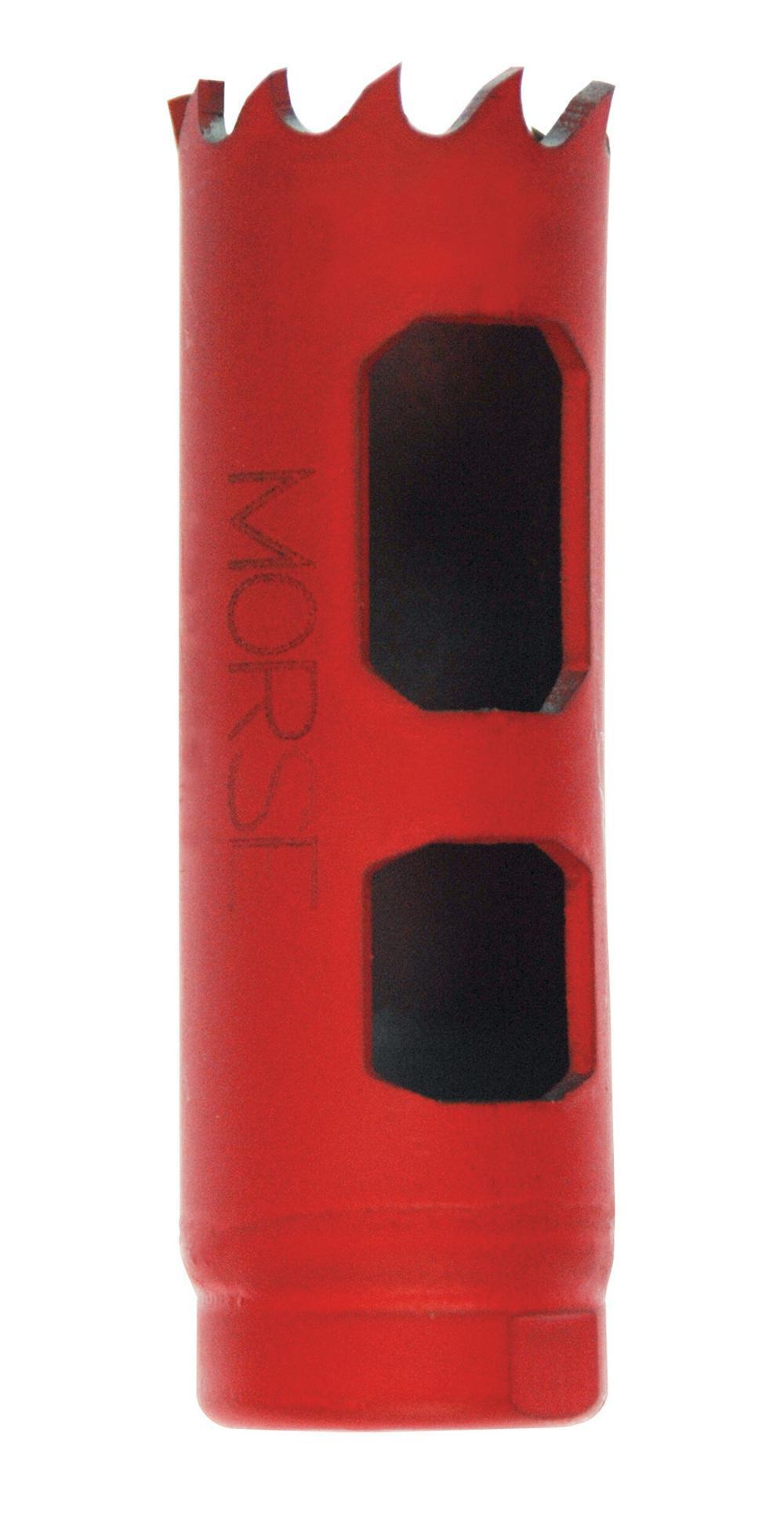

Morse® 177115 MHS Advanced Hole Saw, 11/16 in Dia, 1-15/16 in D Cutting, M42 HSS-Co 8 Cutting Edge, 1/2-20 Arbor
The all new advanced bi-metal hole saw by M.K. Morse®. Our latest sawing innovation replaces all current Morse bi-metal hole saw solutions into one, simple optimized powerhouse. Arbor required.
-
BrandMorse®
-
UPC050326177115
-
Manufacturer Part Number177115
-
CountryUSA|Canada
-
Chuck Size1/4 in, 3/8 in
-
ColorRed
-
TypeAdvanced
-
Use ArborMA24 and MA34
-
Applicable MaterialsMachinable Metal, Nail Embedded Wood, Plastic, Stainless Steel Alloy and Wood
-
Arbor Size1/2-20
-
SeriesMHS
-
Cutting Depth1-15/16 in
-
Shank Size1/4 in, 3/8 in
-
Cutting Edge MaterialM42 HSS-Co 8
-
Cutting Edge StyleToothed
-
Shank TypeHex
-
Diameter11/16 in
-
Speed250 to 750 rpm
-
Drill Size1/4 in Dia x 3-3/32 in L
-
Body MaterialBi-Metal
-
TPI or Pitch5/6 TPI
- Bimetal cutting edge for heat and wear resistance
- Patented tooth set assists in slug removal
- Positive tooth rake penetrates quickly and cuts faster
- Solid cap construction reducing vibration, cutting faster
- New Side Slot - Increased leverage for faster, easier slug removal
- New exterior red coating - reduces side wall friction for efficient cutting
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | FZ50177115 |
-
Alternative Part NumberMHS11
-
UNSPSC27112826
-
Package DescriptionEACH
-
WarrantyLimited
-
Warranty Information
-
Catalog
-
Specification Sheet
