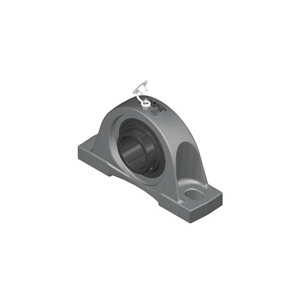

Sealmaster 3-3/16"-ID M/D 300 BB PILLOW BLOCK SEA MP-51-C-CR
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461241875
-
Manufacturer Part Number702847
-
CountryUSA
-
Load Capacity18681 lb Dynamic
-
Locking DeviceSet Screw
-
Temperature Rating250 deg F
-
FinishUncoated
-
MaterialStainless Steel
-
Maximum Speed1850 rpm
-
TypeMedium Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeContact
-
SeriesMP Series
-
Base Width4 in
-
Base to Bore Centerline4 in
-
Bolt Center-to-Center Length9-11/16 to 12-9/16 in
-
Bore Diameter3-3/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height8 in
-
Overall Length15 in
-
Overall Width3-3/8 in
- Single lip contact seal with black oxide bearing races
- Fluoropolymer coated cast iron housing for corrosion resistance.
- Zone hardened inner ring with 120 deg spacing setscrew lock with corrosion resistant setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Fluoropolymer coated cast iron housing for corrosion resistance
- Zone hardened inner ring with 120 deg spacing setscrew lock with corrosion resistant setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
-
Alternative Part NumberMP-51C CR
-
UNSPSC31171504
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
