M.K. Morse 6" HOLESAWS--USE "MOR" MHS-96
Morse® AV96 Master Cobalt® Heavy Duty Hole Saw, 6 in Dia, 1-1/2 in D Cutting, M3 HSS Cutting Edge
-
BrandMorse®
-
UPC050326170963
-
Manufacturer Part NumberAV96
-
CountryUSA
-
MaterialCarbon Steel
-
TypeHeavy Duty
-
Specifications5/8-18 Size, 1/2 in Chuck, 7/16 in Hex Shank
-
Suitable For Use WithMPD4CT01 Carbide Tipped Pilot Drill and 1-1/4 to 6 in Hole Saws
-

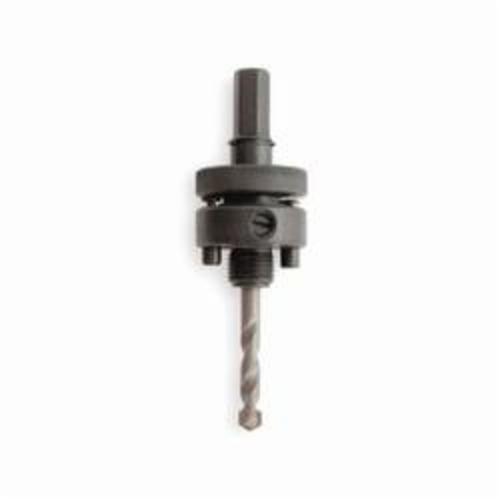

Use ArborM45P, M46PS, M55P and M44K
-
Applicable MaterialsWood, Plastic, Machinable Metal, Stainless Steel Alloy and Nail Embedded Wood
-
SeriesMaster Cobalt®
-
Cutting Depth1-1/2 in
-
Shank Size3/8 in, 7/16 in
-
Cutting Edge MaterialM3 HSS
-
Cutting Edge StylePositive Rake
-
Shank TypeHex
-
Diameter6 in
-
Drill Size1/4 in Dia x 4-5/16 in L, 1/4 in Dia x 3-1/16 in L
-
Body MaterialBi-Metal
-
TPI or Pitch5 TPI
-
Alternative Part Number170963
-
UNSPSC23241601
-
Package Description1/BX
-
WarrantyLimited
-
Warranty Information
-
