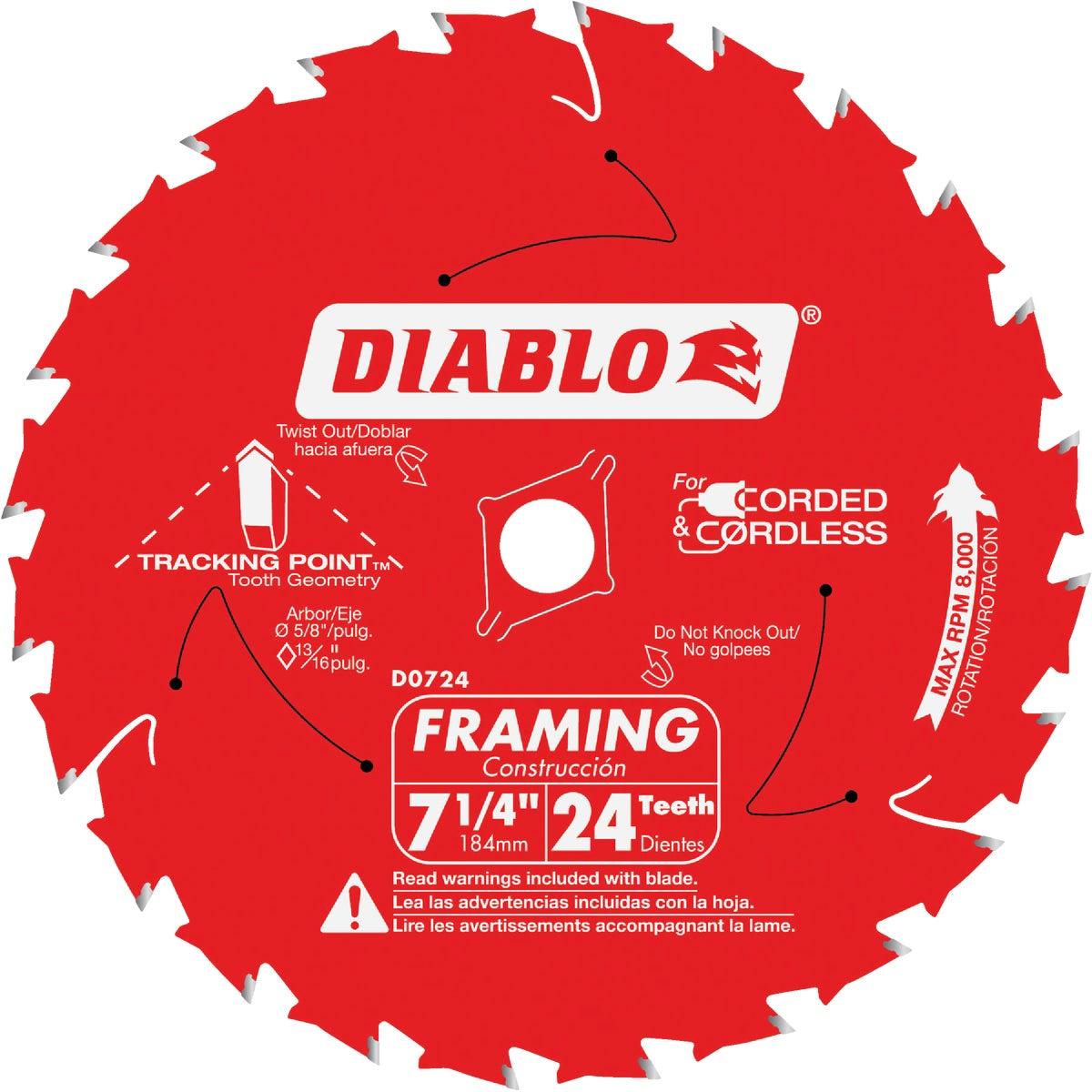

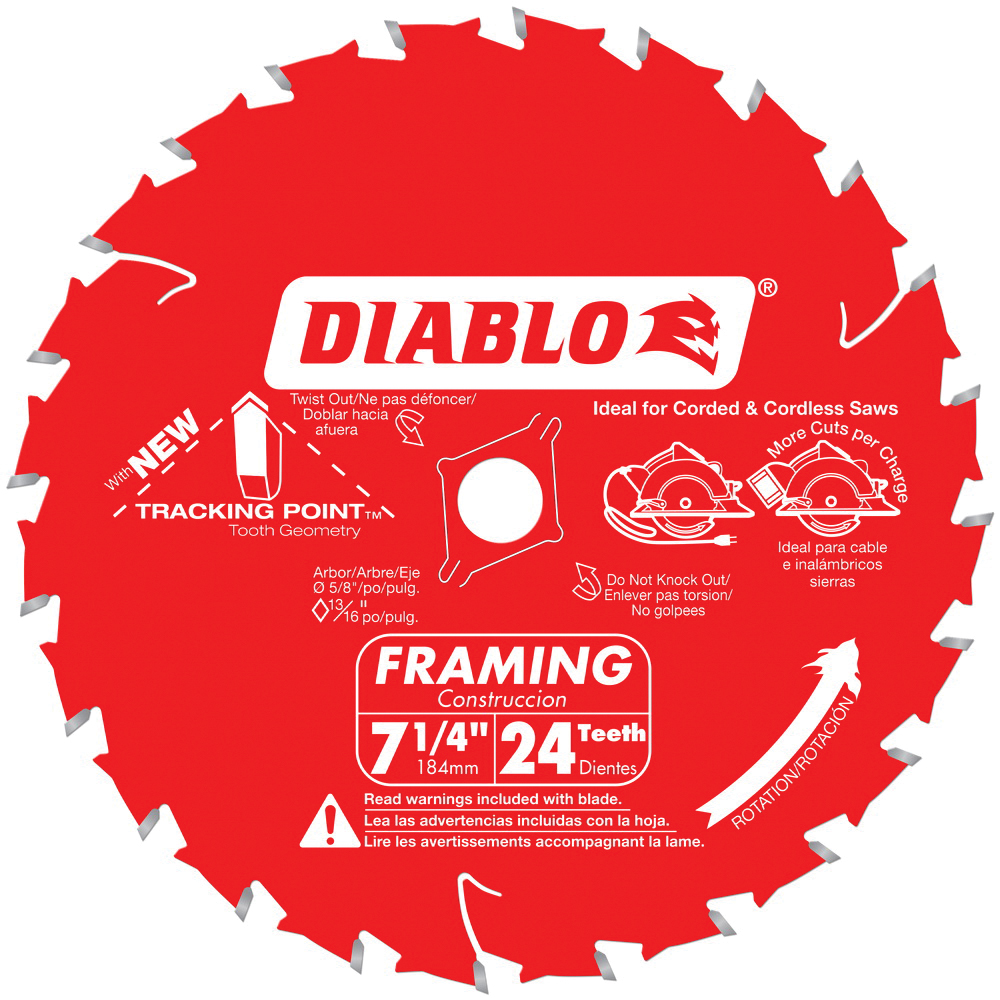

Diablo® D0724A Combination Diamond Knockout Laser Cut Circular Saw Blade, 7-1/4 in Dia x 0.04 in THK, 5/8 in Arbor, Carbide Blade, 24 Teeth
Engineered for maximum durability and precision, Diablo’s Framing Saw Blade delivers effortless, ultra-smooth cuts in pressure-treated wood, 2X lumber, plywood, hardwoods, OSB, and laminated beams. Featuring a newly optimized TiCo™+ Hi-Density Carbide, this blade stays sharper up to 10X longer than standard carbide blades. The Alternated Top Bevel (ATB) plus Tracking Point™ tooth grind ensures accuracy, better tracking, and smoother cuts, while the thin kerf design minimizes material waste and power draw for fast, efficient cutting in both corded and cordless saws. With a Perma-SHIELD® Non-Stick Coating the blade reduces drag, protects against heat, and resists corrosion. Do more and save more with one Diablo blade replacing 10 standard carbide blades, making it ideal for framers, roofers, and remodelers seeking maximum productivity and cutting performance.
-
BrandDiablo®
-
UPC008925019091
-
Manufacturer Part NumberD0724A
-
CountryUSA
-
Teeth TypeATB
-
Thickness0.04 in
-
Maximum Speed10000 rpm
-
Tooth Angle15 deg
-
TypeCombination Diamond Knockout Laser Cut
-
Applicable MaterialsHardwood, 2X Lumber, Pressure Treated, OSB and Laminated Beam
-
Arbor Size5/8 in
-
Cutting Depth2-3/8 in
-
Cutting Edge MaterialMicrograin Titanium Carbide
-
Diameter7-1/4 in
-
Number of Teeth24
-
Blade MaterialCarbide
-
Kerf0.059 in
- Tracking Point™ tooth design acts provides straight cuts and control carbide wear for up to 5X longer cutting life vs other blades and 2X the durability in nail embedded wood
- Tracking Point™ tooth design also delivers extreme cutting efficiency in corded and cordless saws (65% more cuts per battery charge in cordless saws versus other blades)
- Newly enhanced anti-vibration design provides the ideal combination of stability and rigidity
- Perma-SHIELD® non-stick coating resists heat, gumming and corrosion
- Laser cut thin kerf for less resistance and greater cutting efficiency
- For use with corded/cordless saws and circular saw
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 52XF65 |
-
UNSPSC27112802
-
Package DescriptionEACH
