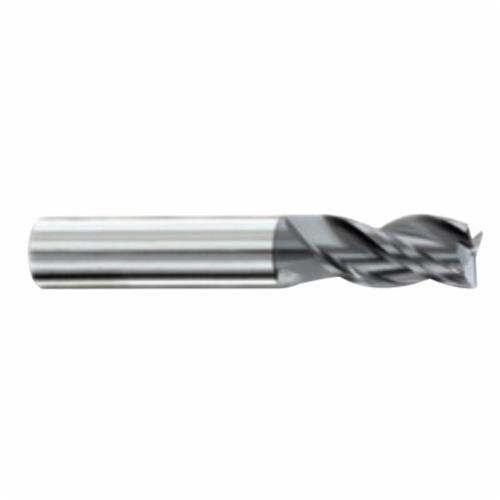

variFLUTE™ 56275 5985 Center Cutting High Performance Regular Length Single End End Mill, 1/8 in Dia Cutter, 0.01 to 0.015 in Corner Radius, 3/8 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 2 in OAL, AlTiN Coated
variFLUTE™ 56275 5985 Center Cutting High Performance Regular Length Single End End Mill, 1/8 in Dia Cutter, 0.01 to 0.015 in Corner Radius, 3/8 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 2 in OAL, AlTiN Coated
-
BrandvariFLUTE™
-
UPC686125562755
-
Manufacturer Part Number56275
-
CountryUSA
-
FinishAlTiN Coated
-
Material10% Cobalt Micrograin Solid Carbide
-
Flute TypeVariable
-
TypeCenter Cutting High Performance Regular Length Single End
-
Corner Radius0.01 to 0.015 in
-
Helix Angle38 deg
-
Series5985
-
Cutter Diameter1/8 in
-
Shank Diameter1/8 in
-
Number of Flutes3
-
Cutting DirectionRight Hand
-
Shank TypePlain/Round
-
Length of Cut3/8 in
-
Overall Length2 in
- Variable flute design reduces chatter, harmonics and cutting forces for increased feed rates, greater depths of cut, improved surface finish and accuracy, minimal tool deflection, reduced machine vibration and increased tool life
- High performance milling - carbon steels, alloy steels, stainless steels, mold and die steels, high temperature alloys, titanium alloys, cast iron and many other materials
- Aluminum titanium nitride coating is an excellent all around coating that increases surface hardness, wear resistance, heat resistance, chip flow and resists chip welding
- Especially recommended for abrasive and hard to machine materials that generate higher cutting temperatures
- These end mills feature tool geometry for high chip evacuation in slotting and roughing applications
- Corner radius strengthens the end mill to minimize chipping and reduce corner wear
- Also used when the finished part requires a radius
-
UNSPSC27112803
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
-
