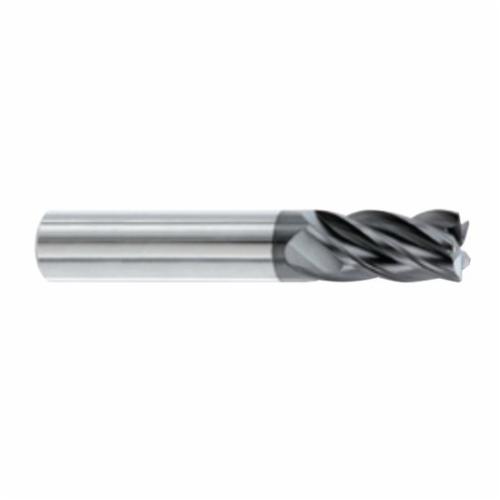

variFLUTE™ 56295 5986 Center Cutting High Performance Regular Length Single End End Mill, 1/4 in Dia Cutter, 0.015 to 0.02 in Corner Radius, 5/8 in Length of Cut, 5 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, AlTiN Coated
variFLUTE™ 56295 5986 Center Cutting High Performance Regular Length Single End End Mill, 1/4 in Dia Cutter, 0.015 to 0.02 in Corner Radius, 5/8 in Length of Cut, 5 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, AlTiN Coated
-
BrandvariFLUTE™
-
UPC686125562953
-
Manufacturer Part Number56295
-
CountryUSA
-
FinishAlTiN Coated
-
Material10% Cobalt Micrograin Solid Carbide
-
Flute TypeVariable
-
TypeCenter Cutting High Performance Regular Length Single End
-
Corner Radius0.015 to 0.02 in
-
Helix Angle38 deg
-
Series5986
-
Cutter Diameter1/4 in
-
Shank Diameter1/4 in
-
Number of Flutes5
-
Cutting DirectionRight Hand
-
Shank TypeStraight
-
Length of Cut5/8 in
-
Overall Length2-1/2 in
- Variable flute design reduces chatter, harmonics and cutting forces for increased feed rates, greater depths of cut, improved surface finish and accuracy, minimal tool deflection, reduced machine vibration and increased tool life
- High performance milling - carbon steels, alloy steels, stainless steels, mold and die steels, high temperature alloys, titanium alloys, cast iron and many other materials
- Aluminum titanium nitride coating is an excellent all around coating that increases surface hardness, wear resistance, heat resistance, chip flow and resists chip welding
- Especially recommended for abrasive and hard to machine materials that generate higher cutting temperatures
- These end mills with increased core thickness and five flutes provide higher feed rates in profiling and finishing applications and enhanced surface finish
- Corner radius strengthens the end mill to minimize chipping and reduce corner wear
- Also used when the finished part requires a radius
-
UNSPSC27112803
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
-
