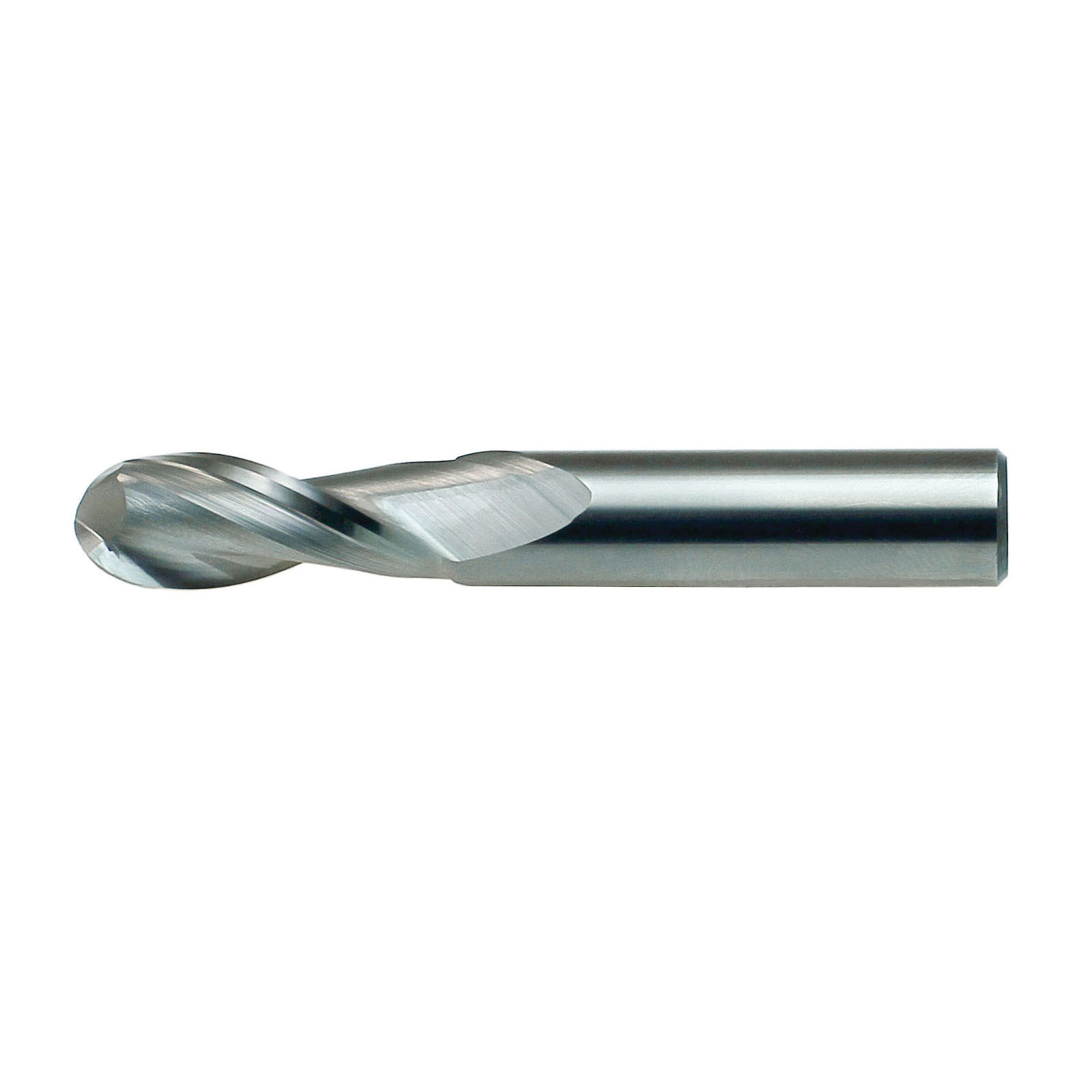

Drillco 76A116C 7600 Center Cutting Imperial Regular Length Single End Ball Nose End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated
Solid carbide end mills run at extremely impressive feed and speed rates. In some cases, they can be run at 3x the rates of HSS end mills. Using solid carbide end mills results in better surface finish on the workpiece and extended tool life. Ball nose.
-
BrandDrillco
-
UPC045997391748
-
Manufacturer Part Number76A116C
-
CountryUSA|Canada
-
FinishUncoated
-
MaterialSolid Carbide
-
TypeCenter Cutting Imperial Regular Length Single End
-
Series7600
-
Cutter Diameter1/4 in
-
Shank Diameter1/4 in
-
Number of Flutes2
-
Shank TypeRound
-
Length of Cut3/4 in
-
Overall Length2-1/2 in
- Solid carbide construction for extreme rigidity and strength
- Ball nose for profiling and grooving with radii, and contouring
- 2 flutes provide more efficient chip removal
- Bright finish for added lubricity
-
UNSPSC27112803
-
Package Description1/PK
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including Cobalt, which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
-
SDS
-
Catalog
