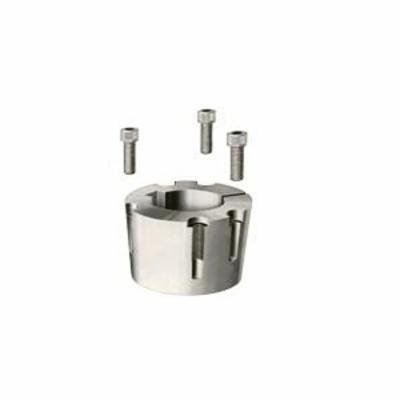

Dodge® 117221 Stock Bore Taper Lock Bushing, 2-3/8 in Dia Bore, 5 in Dia Barrel, 3-1/2 in OAL, Iron
Dodge® Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
-
BrandDodge®
-
UPC782475092864
-
Manufacturer Part Number117221
-
CountryUSA
-
Taper8 deg
-
MaterialIron
-
Torque Rating44800 in-lb
-
TypeStock Bore
-
Screw Size1/2 x 1-1/2 in
-
Number of Bolt Holes3
-
Hub Diameter7 in
-
Barrel Diameter5 in
-
Keyway Size5/8 x 5/16 in
-
Bolt Circle Diameter4.83 in
-
Bore Diameter2-3/8 in
-
Overall Length3-1/2 in
- Size 3535 bushing
- Clean and compact design
- Easy On/Off operation
- 8 deg taper grips tight, holds tight, runs true and no wobble
- Flush mounting and no protruding parts
-
Alternative Part Number3535 X 2-3/8-KW
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA|AGMA|BSA|CEMA|MPTA|PTDA Standards
-
WarrantyLimited
-
Instruction/Installation Manual
-
Specification Sheet
-
Warranty Information
-
Catalog
