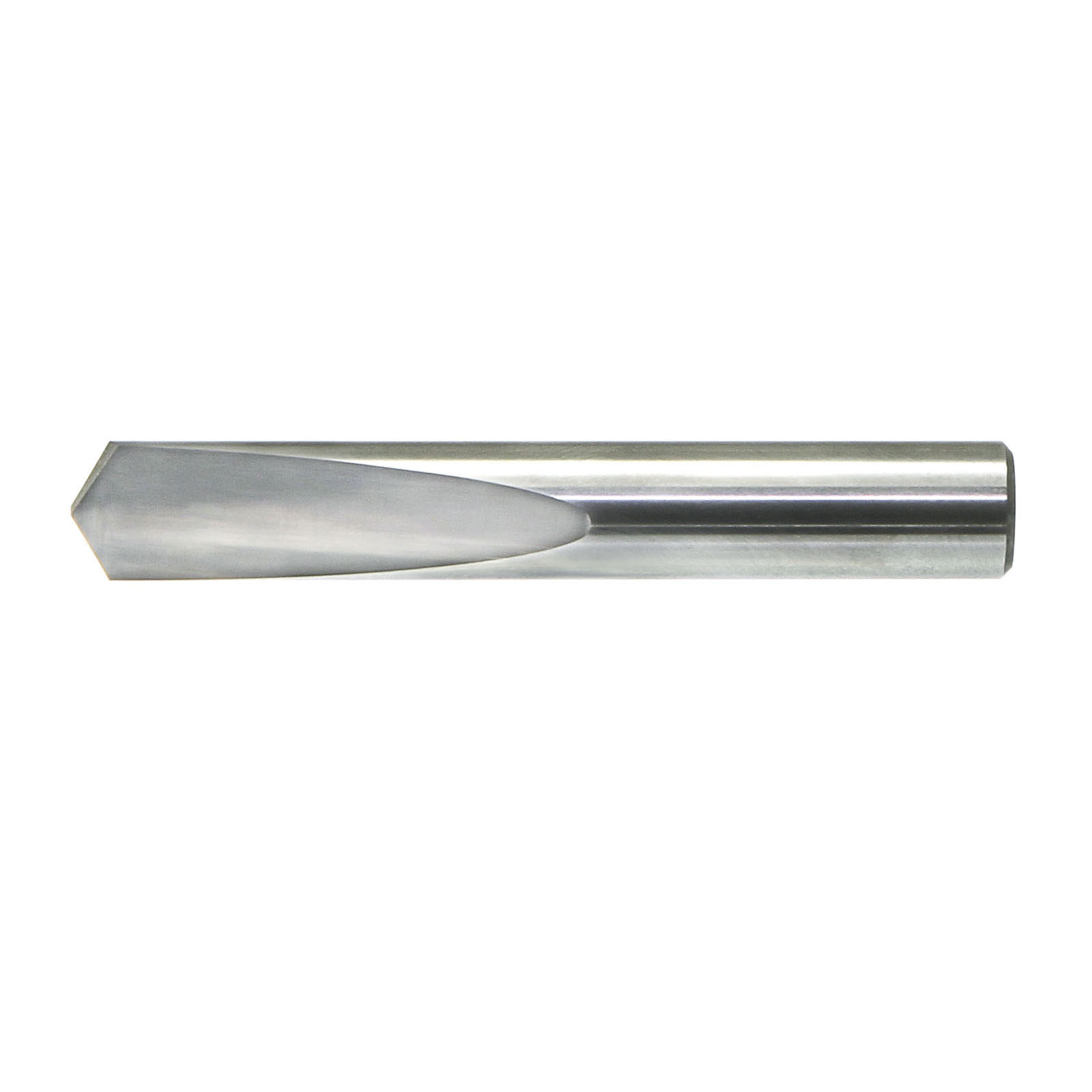

Drillco 750A120 Spade Drill, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 2XD D Cutting, Solid Carbide
Solid Carbide spade drills perform well in hard to machine materials (up to Rc 60), high strength alloys, plastic, and glass. They can be used in thin sheet metal and spotting applications. Drilling depth should not exceed 2x the drill diameter.
-
BrandDrillco
-
UPC045997391397
-
Manufacturer Part Number750A120
-
CountryUSA|Canada
-
FinishUncoated
-
Point Angle118 deg
-
Point TypeConventional
-
MaterialSolid Carbide
-
Flute Length7/8 in
-
Flute TypeStraight
-
Applicable MaterialsHigh Strength Alloys, Plastic and Glass
-
Series750
-
Cutting Depth2XD
-
Shank Size5/16 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialSolid Carbide
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.3125 in
-
Drill Size - Fraction5/16 in
-
Overall Length2-1/2 in
- Bright finish for added lubricity
- Bright finish for added lubricity
-
UNSPSC23241605
-
Package Description1/PK
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including Cobalt, which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
-
