MORSE C/Tool #55 TAPER LENGTH DRILLBITS MCT 11056

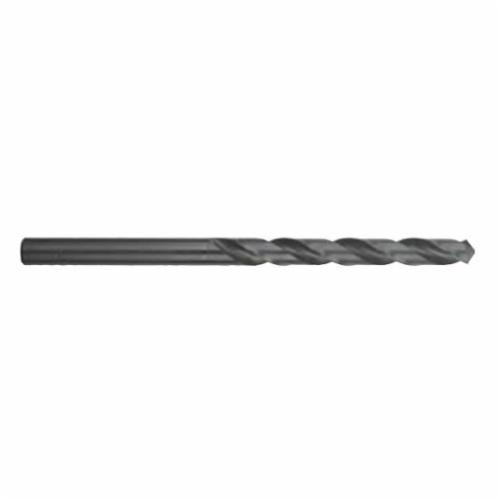

MORSE® 11056 1322 General Purpose Taper Length Drill, #55 Drill - Wire, 0.052 in Drill - Decimal Inch, 3 in OAL, HSS, Black Oxide
-
BrandMORSE®
-
UPC686125110567
-
Manufacturer Part Number11056
-
CountryUSA
-
FinishBlack Oxide
-
Point Angle118 deg
-
Point TypeStandard
-
MaterialHSS
-
Flute Length1-3/4 in
-
Flute TypeStandard
-
TypeGeneral Purpose
-
Series1322
-
Cutting Depth1-3/4 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialHSS
-
Shank TypeStraight
-
Drill Size - Decimal Inch0.052 in
-
Drill Size - Wire#55
-
Overall Length3 in
- Taper length drills have approximately the same flute lengths and overall lengths as taper shank drills, for deeper hole drilling
- Shanks are the same diameter as the drill body
- Recommended for drilling a wide range of materials
- Black oxide surface treatment increases wear resistance, reduces galling and chip welding, improves chip flow and increases drill lubricant retention
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | MT1811056 |
-
UNSPSC23241606
-
Package Description1/PK
-
Standards/ApprovalsDIN 340|ISO 9001:2008
