MORSE C/Tool 25/64" AMBORE HSS JOBBERS DRILLBIT MCT 12083

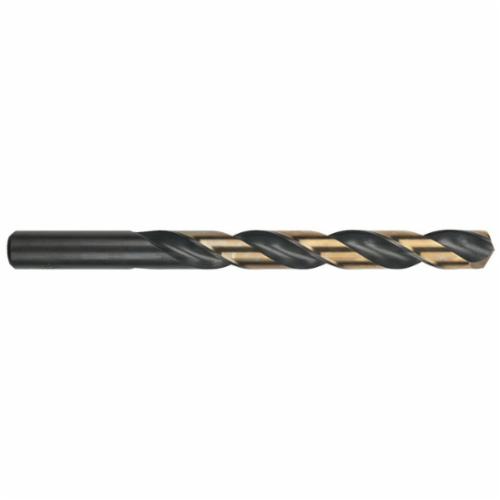

Ambore™ 12083 1384 Heavy Duty Jobber Length Drill Bit, 25/64 in Drill - Fraction, 0.3906 in Drill - Decimal Inch, 135 deg Point, HSS, Black/Gold Oxide
-
BrandAmbore™
-
UPC686125120832
-
Manufacturer Part Number12083
-
CountryUSA
-
FinishBlack/Gold Oxide
-
Point Angle135 deg
-
Point TypeSplit/Self-Centering
-
MaterialHSS
-
Through Coolant (Yes/No)No
-
Flute Length3-3/4 in
-
Flute TypeStandard
-
TypeHeavy Duty
-
Series1384
-
Cutting Depth3-3/4 in
-
Shank Size25/64 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialHSS
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.3906 in
-
Drill Size - Fraction25/64 in
-
Overall Length5-1/8 in
- 135 deg self-centering split point eliminates walking of the drill point and reduces thrust
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | MT7812083 |
-
UNSPSC23241606
-
Package Description1/PK
-
Standards/ApprovalsDIN 338
-
