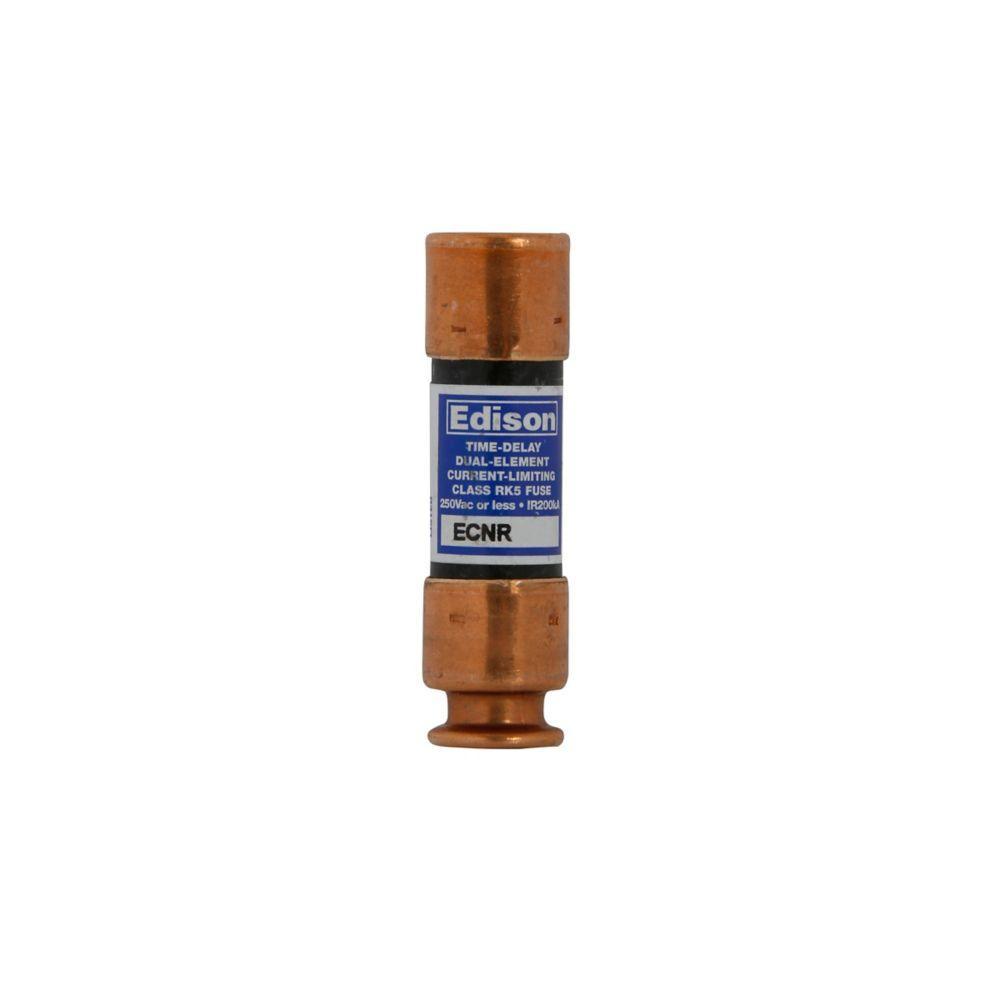

Bussmann Edison ECNR15 Current Limiting Time Delay Fuse, 15 A, 250 V AC/125 V DC, 200 kAIC Interrupt, RK5 Class
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
-
BrandEdison
-
UPC782634507307
-
Manufacturer Part NumberECNR15
-
CountryUSA
-
Terminal TypeFerrule End
-
MaterialFiberglass
-
ClassRK5
-
Response Time10 s at 500%
-
TypeCurrent Limiting Time Delay
-
Voltage Rating250 V AC/125 V DC
-
Amperage Rating15 A
-
SeriesECNR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 kAIC
-
Body Size0.56 in Dia x 2 in L
-
ElementDual
- Superior overload and cycling capabilities
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 13M229 |
-
Alternative Part Number11197100
-
UNSPSC39121606
-
IDEA Index ID11197100
-
Package DescriptionEACH
-
Standards/ApprovalsCE Marked
-
Specification Sheet
