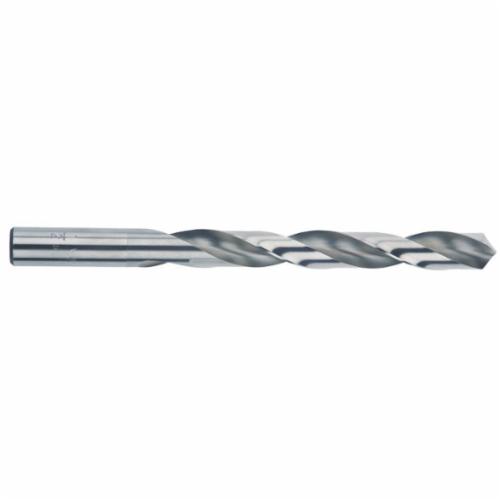

MORSE C/Tool 23/64" LOW HELIX HI-SPEED DRILLBIT MCT 14122
MORSE® 14122 1344 Jobber Length Drill Bit, 23/64 in Drill - Fraction, 0.3594 in Drill - Decimal Inch, 118 deg Point, HSS, Bright
-
BrandMORSE®
-
UPC686125141226
-
Manufacturer Part Number14122
-
CountryUSA
-
FinishBright
-
Point Angle118 deg
-
Point TypeStandard
-
MaterialHSS
-
Through Coolant (Yes/No)No
-
Flute Length3-1/2 in
-
Flute TypeSlow Spiral
-
Applicable MaterialsBrass, Bronze, Hard Plastic and Hard Rubber
-
Series1344
-
Cutting Depth3-1/2 in
-
Shank Size23/64 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialHSS
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.3594 in
-
Drill Size - Fraction23/64 in
-
Overall Length4-7/8 in
- Wide flutes and low helix angle enhance chip ejection at high rates of penetration
- Bright finish with polished flutes enhances chip ejection especially for aluminum and other non-ferrous materials
-
UNSPSC23241606
-
Package Description1/PK
-
Standards/ApprovalsNSF Listed
