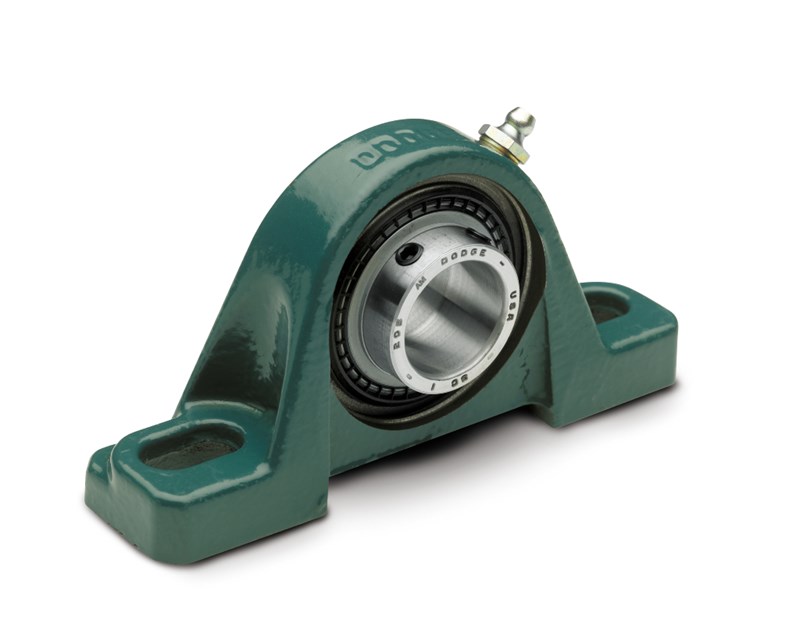

Dodge® 057603 211 Normal Duty Pillow Block Ball Bearing Unit, 2 in Dia Bore, 6.38 to 7.44 in L Bolt Center-to-Center, 2.44 in Base to Bore Centerline, 8.88 in OAL x 4.9 in OAH
A setscrew shaft attachment method is the most common means of securing a mounted ball bearing to a shaft and also the easiest to install. The Dodge® mounted ball bearing offering is engineered with a 65 deg setscrew angle. This ensures the maximum grip onto the shaft, especially when using premium cup point set screws with the high quality manufacturing of the Dodge® insert.
-
BrandDodge®
-
UPC782475145645
-
Manufacturer Part Number057603
-
CountryUSA
-
Load Capacity9755 lb Dynamic/6588 lb Static
-
Locking Device65 deg Set Screw
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed4000 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
Series211
-
Base Width2.3 in
-
Base to Bore Centerline2.44 in
-
Bolt Center-to-Center Length6.38 to 7.44 in
-
Bore Diameter2 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4.9 in
-
Overall Length8.88 in
-
Overall Width2.22 in
- 65 deg setscrew locking system
- Precision hardened and honed inner and outer rings
- Grade 10 balls
- Wide inner ring design
- Low backing height pillow block
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 101861090 |
| Motion Industries | 03040900 |
-
Alternative Part NumberP2B-SCB-200L
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
