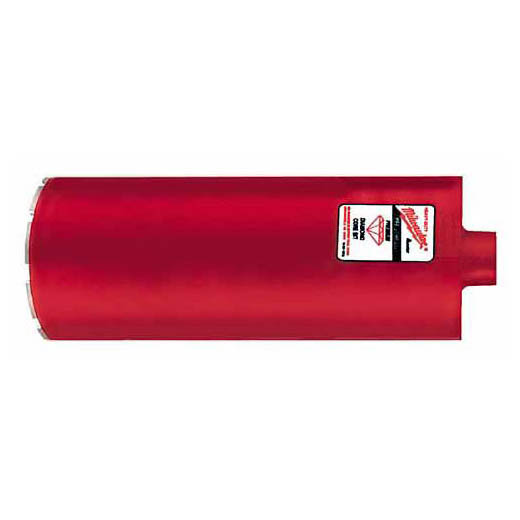

Milwaukee 3/4" DIA CONCRETE CORE BITS MWK 48-16-1007
Milwaukee® diamond coring bits - "Dymobits" are designed to optimize drilling performance over a broad range of applications. We define drilling performance as the best balance of speed, life and overall drilling costs. State-of-the-art manufacturing techniques and the latest diamond matrix technology result in a complete line of bits to meet your most demanding requirements.
-
BrandMilwaukee®
-
UPC045242096114
-
Manufacturer Part Number48-16-1007
-
CountryUSA|Canada
-
MaterialSteel
-
ColorRed
-
TypeHeavy Duty Pre-Stressed
-
Applicable MaterialsMasonry
-
Cutting Depth14 in
-
Cutting Edge MaterialDiamond
-
Shank TypeHollow/Threaded/Straight
-
Drill Size - Decimal Inch0.63 in
- Maximum speed - segment design allows coring at higher rpm
- High quality - segments are silver brazed for exceptional holding strength
- Versatile - effectively cores pre-stressed and steel reinforce concrete and asphalt
- Designed specifically for the extra demands of drilling pre-stressed concrete
- 5/8-11 threads - for bits 2 in (use 48-04-0160 thread adapter)
- Segments widths provide interior and exterior clearance for easy bit and core removal
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1Y436 |
-
UNSPSC20121607
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant
-
WarrantyLimited Lifetime
-
Warranty Information
